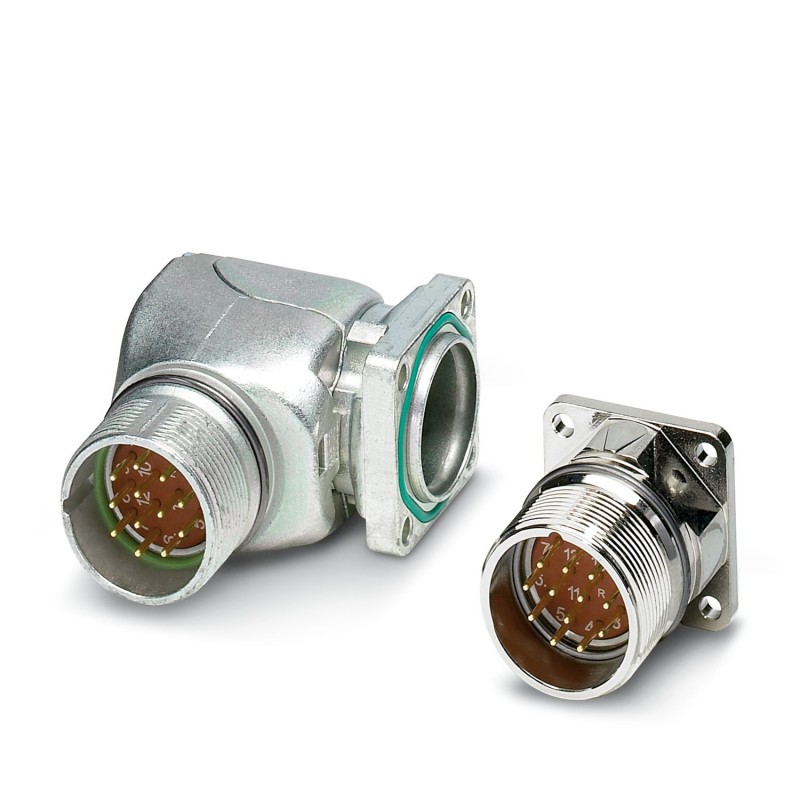

RF-12P2N8AWA00S 1617589 PHOENIX CONTACT Device connector, front mounting
RF-12P2N8AWA00S
1617589
PHOENIX_CONTACT
Device connector, front mounting
Device connector front mounting, straight, SPEEDCON, M23, number of positions: 12, contact connection type: Pin, Axial O-ring, 4x Ø 3.2, shielded: yes, number of positions: 12, connection method: Crimp connection, series: RF
Sensors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Order information: | Order crimp contacts Ø 1 mm separately |
| Mounting | 4x Ø 3.2 |
| Product type | Circular connectors (device side) |
| Series | RF |
| Application | Feedback, signal |
| Signal | |
| Number of positions | 12 |
| Connection profile | 12 |
| Shielded | yes |
| Coding | N |
| Thread type | M23 |
| Seal material | FPM |
| Contact | |
| Contact diameter | 1 mm |
| Max. current | 8 A |
| Nominal voltage UN | 150 V |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 2.5 kV |
| Contact | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Conductor connection | |
| Connection method | Crimp connection |
| Contact connection type | Pin |
| Type | straight |
| Direction of rotation | Counter direction |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
