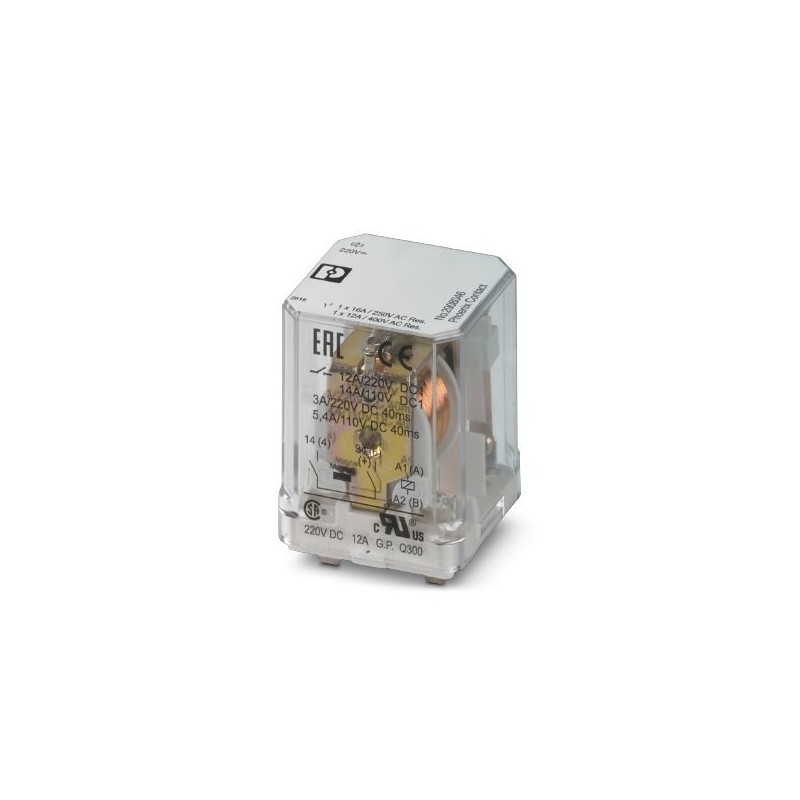

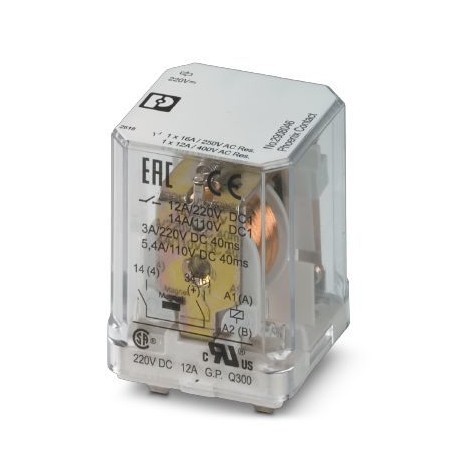

REL-PR1-220DC/1/MB 2908046 PHOENIX CONTACT Single relay
REL-PR1-220DC/1/MB
2908046
PHOENIX_CONTACT
Single relay
Industrial Relays
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2908046 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 328 (C-5-2017) |
| GTIN | 4055626266909 |
| Weight per Piece (excluding packing) | 82.700 g |
| Custom tariff number | 85364900 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Coil side
| Nominal input voltage UN | 220 V DC |
|---|---|
| Input voltage range in reference to UN | see diagram |
| Typical input current at UN | 7.3 mA |
| Typical response time | 20 ms |
| Typical release time | 15 ms |
| Power dissipation for nominal condition | 1.61 W |
Contact side
| Contact type | 1 N/O contact |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 440 V AC |
| 250 V DC | |
| Minimum switching voltage | 5 V (At 24 mA) |
| Min. switching current | 5 mA (at 24 V) |
| Maximum inrush current | 50 A (20 ms) |
| 30 A (4 s) | |
| Limiting continuous current | 16 A |
| Interrupting rating (ohmic load) max. | 384 W (at 24 V DC) |
| 768 W (at 48 V DC) | |
| 930 W (at 60 V DC) | |
| 1650 W (at 110 V DC) | |
| 2640 W (at 220 V DC) | |
| 4000 VA (for 250 V AC) | |
| Switching capacity min. | 120 mW |
| Switching capacity | 1 A (at 220 V, DC13) |
| 1.5 A (at 240 V, AC15) |
General
| Test voltage relay winding/relay contact | 2.5 kV |
|---|---|
| Operating mode | 100% operating factor |
| Degree of protection | RT I |
| Mechanical service life | approx. 2x 107cycles |
| Service life, electrical | see diagram |
| Mounting position | any |
| Net weight (SAP) | 82.7 g |
Standards and Regulations
| Standards/regulations | IEC 60664 |
|---|---|
| IEC 61810 | |
| Rated surge voltage | 4 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371601eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371601eCl@ss 8.027371601eCl@ss 9.027371601
