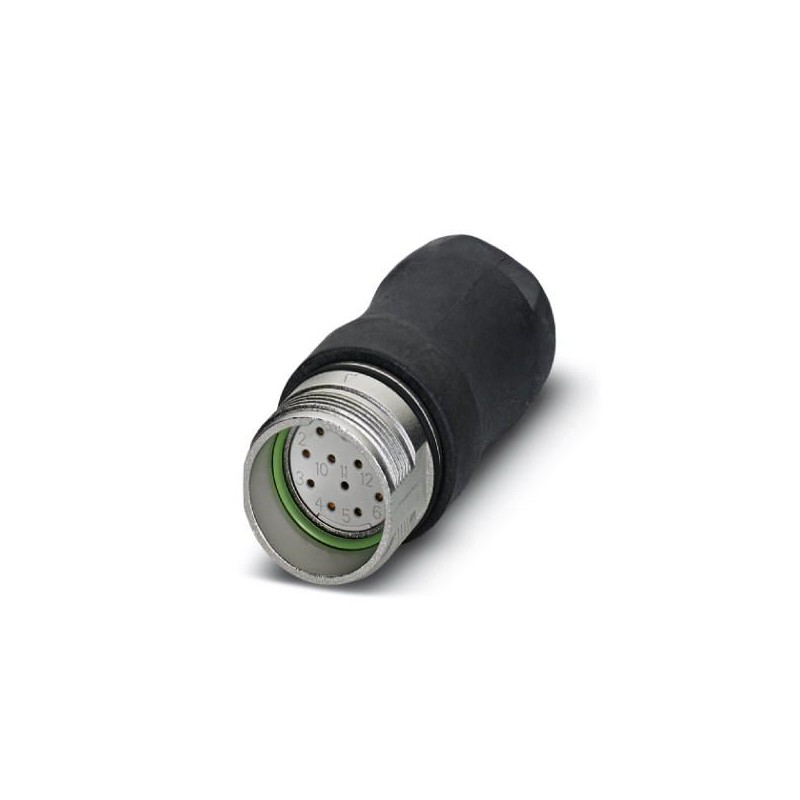

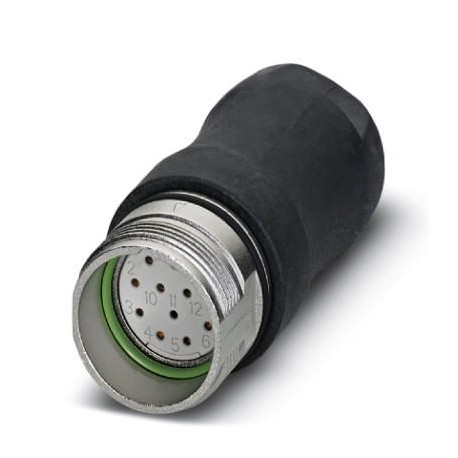

RC-2LS1N12M0N8 1603337 PHOENIX CONTACT Coupler connector
RC-2LS1N12M0N8
1603337
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Coupler connector
M23, Plug-in coupling connector, RC, Straight, plastic coated, shielded: yes, Screw lock, No. of poles: 12, Rotation direction: Standard, contact type: Female, Solder connection, cable diameter range: 6.5 mm ... 7.5 mm, encoding:N
Connectors > Circular connector for field assembly (industrial connector)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Housing data
| Note | Order information: Order contact inserts and cable clamping/shield accessories separately |
|---|---|
| Housing material | Metal |
| Type of locking | Screw locking |
| Degree of protection (when plugged in) | IP67 |
| Thread type | M23 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440102eCl@ss 8.027440102eCl@ss 9.027440103
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
