RC-1RS1N121L00 1603164 PHOENIX CONTACT Cable connector
RC-1RS1N121L00
1603164
PHOENIX_CONTACT
20
Product on demand only, returns will not be accepted.

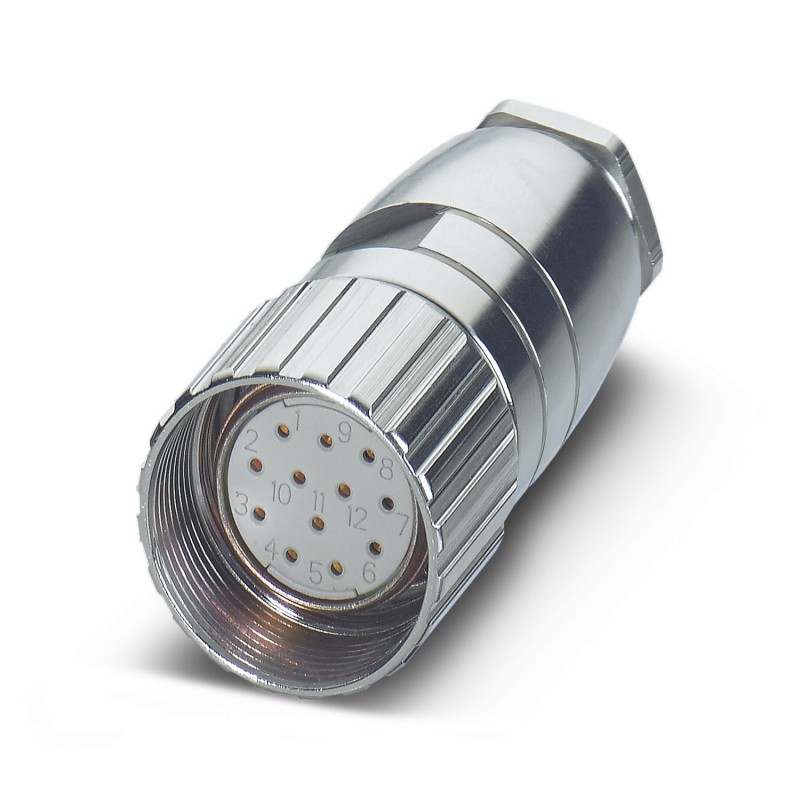

Cable connector
M23, Conect. plug. to be apar. wall poster., RC, straight, shielded: no, Screw lock, cable diameter range: 9 mm ... 13 mm, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1260767
M23, Cable connector, series: RC, straight, shielded: no, Screw locking mechanism, contact connection type: Socket, Solder cup, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241599
Connectors > Circular connector for field assembly (industrial connector)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Circular connector (cable-side) |
| Type of the screw connection | IP68 screw |
| Thread type | M23 |
| Flammability rating according to UL 94 | V0 |
| Conductor connection | |
| Connection method | Solder connection |
| Mechanical data | |
| Type of the screw connection | IP68 screw |
| Insulating body | |
| Connection method | Solder cup |
| Contact switching type | Socket |
| Application | Signal |
| Rated voltage | 48 V AC |
| 74 V DC | |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Housing | |
| Housing material | Metal |
| Type of locking | Screw locking mechanism |
| Pg screw connection | none |
| Degree of protection (plugged in) | IP65 |
| IP67 | |
| Thread type | M23 |
| Ambient conditions | |
| Degree of protection | IP67 |
| Feature Name | Feature Value |
|---|---|
| With shield connection (EF002535) | No |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| With thread (EF003723) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
