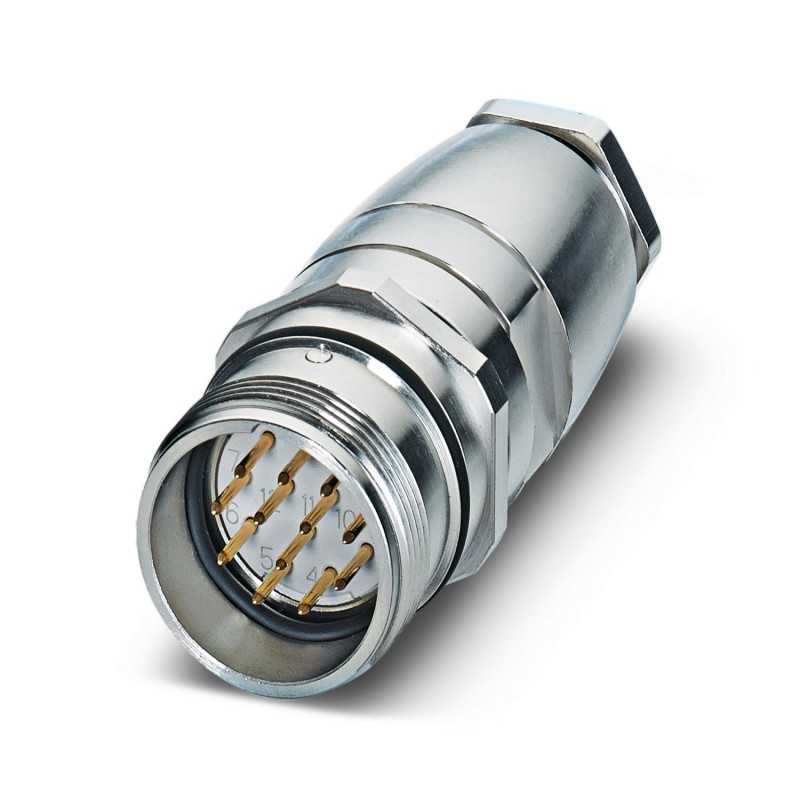

RC-1RP1NRA7L00 1603093 PHOENIX CONTACT Coupler connector, with Pg13.5 connection thread, straight, shielded:..
RC-1RP1NRA7L00
1603093
PHOENIX_CONTACT
Coupler connector, with Pg13.5 connection thread, straight, shielded: no, Screw locking, M23, No. of pos.: 16+2+PE, type of contact: Pin, Crimp connection, cable diameter range: 9 mm ... 13 mm
M23, Crimp contact, series: RC, straight, shielded: no, Screw locking mechanism, No. of pos.: 16+2+FE, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, coding: N
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Order information: | Order crimp contacts 16 x Ø 1 mm, 2 x Ø 1.5 mm, 1 x Ø 1.5 (PE) separately |
| Product type | Circular connector (cable-side) |
| Type of the screw connection | IP68 screw |
| Thread type | M23 |
| Flammability rating according to UL 94 | V0 |
| Conductor connection | |
| Connection method | Solder connection |
| Mechanical data | |
| Type of the screw connection | IP68 screw |
| Insulating body | |
| Note | Order information: Order crimp contacts 16 x Ø 1 mm, 2 x Ø 1.5 mm, 1 x Ø 1.5 (PE) separately |
| Coding | N |
| Connection method | Crimp connection |
| Contact switching type | Pin |
| Application | Signal |
| Number of positions | 19 |
| Direction of rotation | Standard |
| Connection profile | 16+2+FE |
| Contact diameterPower contacts | 1.5 mm |
| Rated currentPower contacts | 10 A |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Contact diameterSignal contacts | 1 mm |
| Nominal current per signal contact | 8 A |
| Rated voltage Signal contact | 150 V |
| Housing | |
| Housing material | Metal |
| Type of locking | Screw locking mechanism |
| Pg screw connection | Pg13,5 |
| Degree of protection (plugged in) | IP65 |
| IP67 | |
| IP68 | |
| Thread type | M23 |
| Ambient conditions | |
| Degree of protection | IP67 |
