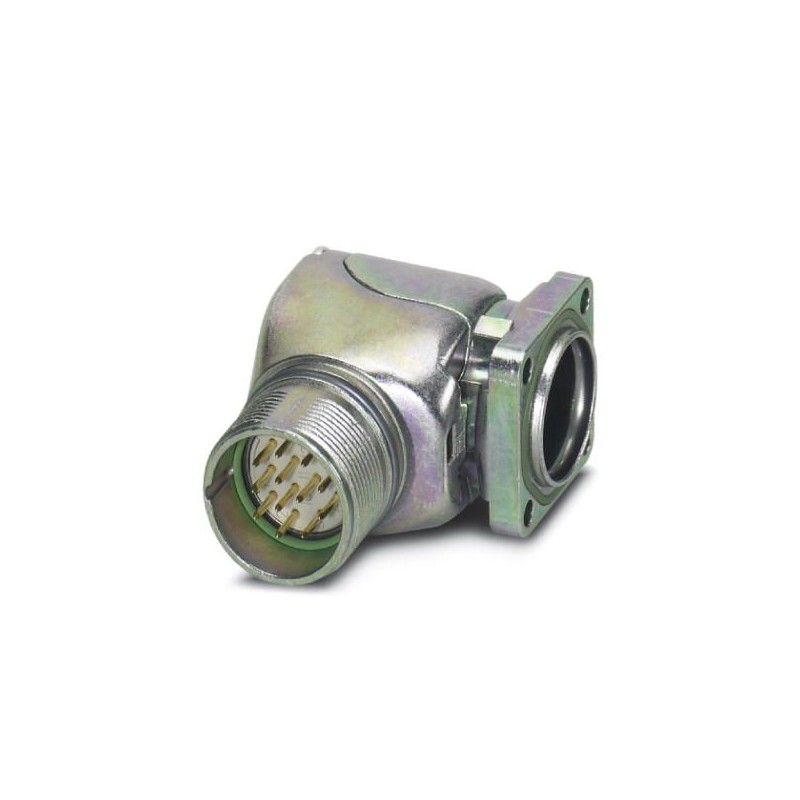

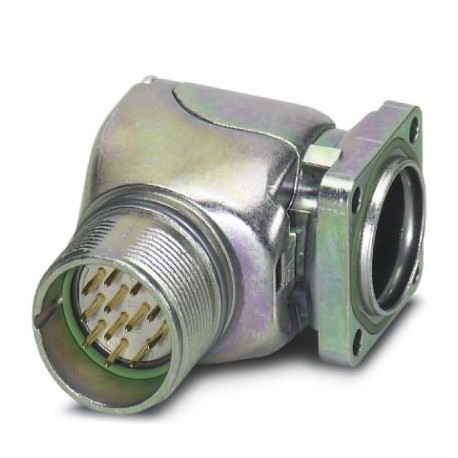

RC-19P1N12AD00 1611436 PHOENIX CONTACT Device connector, front mounting
RC-19P1N12AD00
1611436
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Device connector, front mounting
Conect. plug. to be apar. front wall, alternative product according to RoHS II without exception 6c (Pb< 0.1%) art.code: 1238292
Connectors > Circular connector, mounting (without cable)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲General
| Type of locking | Screw locking |
|---|---|
| Insertion/withdrawal cycles mechanical | 50 |
| Direction of rotation of contact chamber numbering | Standard |
| Coding | N |
| Contact connection method | Solder connection |
| Type of contacts | Pin |
| Number of positions | 19 |
| Contact diameter of power contacts | 1.5 mm |
| Litz wire cross section of power contacts min. | 0.08 mm² |
| Litz wire cross section of power contacts max. | 1 mm² |
| Nominal current per power contact at 25°C | 10 A |
| Contact diameter of signal contacts | 1 mm |
| Litz wire cross section of signal contacts min. | 0.08 mm² |
| Litz wire cross section of signal contacts max. | 1 mm² |
| Nominal current per signal contact at 25°C | 8 A |
| Pg housing screw connection | none |
| Mounting type | 4x Ø 3.2 |
Specifications according to DIN EN 61984:2001
| Installation height max. | 2000 m |
|---|---|
| Nominal / operating voltage of power contacts | 150 V |
| Rated surge voltage of power contacts | 1.5 kV |
| Overvoltage category of power contacts | II |
| Degree of pollution of power contacts | 3 |
| Nominal / operating voltage of signal contacts | 150 V |
| Overvoltage category of signal contacts | II |
| Degree of pollution of signal contacts | 3 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027143424eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440102eCl@ss 8.027440102eCl@ss 9.027440103
| Feature Name | Feature Value |
|---|---|
| With shield connection (EF002535) | Yes |
| Number of poles (EF001391) | 19 |
| Number of control contacts (EF012217) | 19 |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Min. number of insertion cycles (EF012212) | 50 |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -20 °C |
| With thread (EF003723) | Yes |
