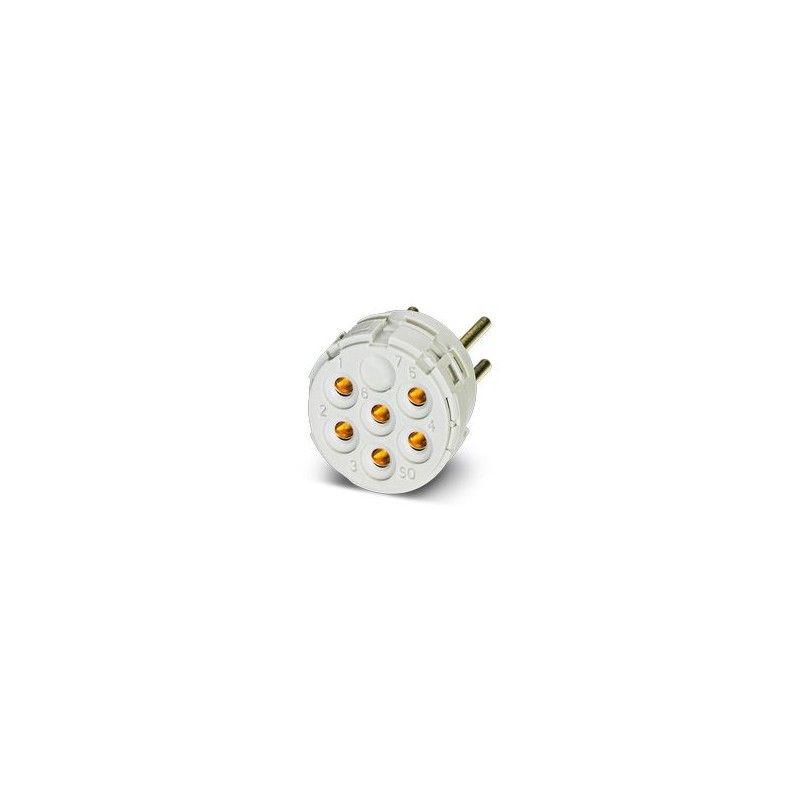

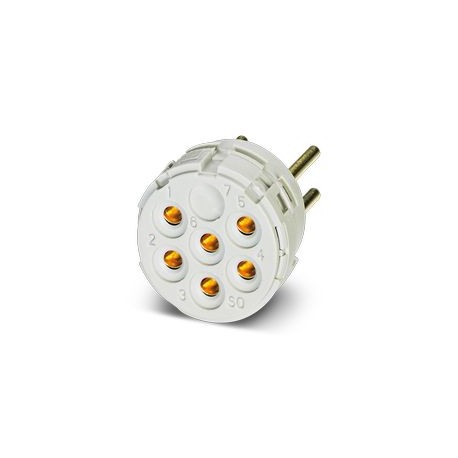

RC-17S1NA20000X 1242210 PHOENIX CONTACT Contact insert, M23, number of poles: 17, contact connection type: F..
RC-17S1NA20000X
1242210
PHOENIX_CONTACT
10
Contact insert, M23, number of poles: 17, contact connection type: Female, Solder connection, series: NC, RC, RM, TU, UC, The item does not contain lead according to the RoHS II directive without exception 6c (Pb<.; 0.1%)
Contact Insert
Contact insert, M23, number of positions: 17, contact connection type: Socket, Solder-in connection, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Number of positions | 17 |
| Connection profile | 17 |
| Application | Signal |
| Series | NC |
| RC | |
| RM | |
| TU | |
| UC | |
| Coding | N |
| Thread type | M23 |
| Contact | |
| Contact diameter | 1 mm |
| Max. current | 8 A |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 1.5 kV |
| Connection method | Solder-in connection |
| Insulator material | PBT |
| Contact material | CuZn |
| Contact surface | Nickel-plated, gold coating |
| Direction of rotation | Standard |
| Mechanical data | |
| Insertion/withdrawal cycles | 50 |
| Connection method | Solder-in connection |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 17 |
