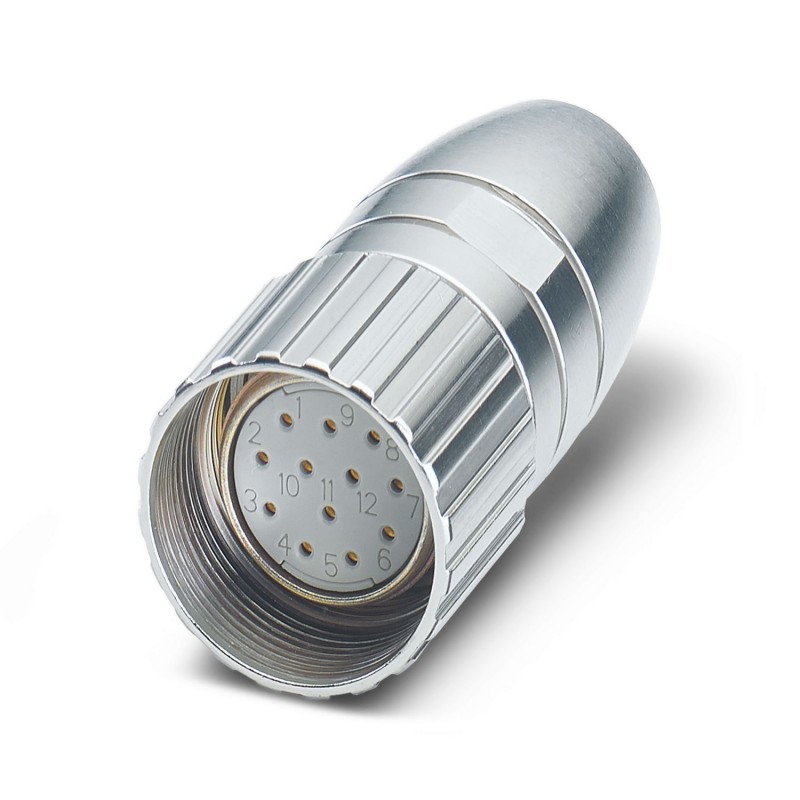

RC-17S1N8A80EQ 1602144 PHOENIX CONTACT Cable connector
RC-17S1N8A80EQ
1602144
PHOENIX_CONTACT
Cable connector
M23, Plug connector. for cables, straight, shielded: no, Screw lock, No. of poles: 17, Direction of rotation: Standard, contact type: Female, Crimped connection, cable diameter range: 3 mm ... 10.5 mm, coding:N, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1241500
M23, Cable connector, straight, shielded: no, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 3 mm ... 10.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241440
Connectors > Circular connector for field assembly (industrial connector)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Order information: | Order crimp contacts Ø 1 mm separately |
| Product type | Circular connector (cable-side) |
| Insulating body | |
| Note | Order information: Order crimp contacts Ø 1 mm separately |
| Coding | N |
| Connection method | Crimp connection |
| Contact switching type | Socket |
| Application | Signal |
| Number of positions | 17 |
| Direction of rotation | Standard |
| Connection profile | 17 |
| Contact diameterPower contacts | 1 mm |
| Rated currentPower contacts | 8 A |
| Rated voltage | 48 V AC |
| 74 V DC | |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Housing | |
| Order information: | Order contact inserts separately |
| Housing material | Metal |
| Type of locking | Screw locking mechanism |
| Pg screw connection | none |
| Degree of protection (plugged in) | IP65 |
| IP67 | |
| IP68 | |
| Thread type | M23 |
| Seal | |
| External cable diameter | 3 mm ... 10.5 mm |
| Seal material | NBR |
| Ambient conditions | |
| Ambient temperature (storage/transport) | 15 °C ... 25 °C |
| Permissible humidity (storage/transport) | 50 % ... 65 % |
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
