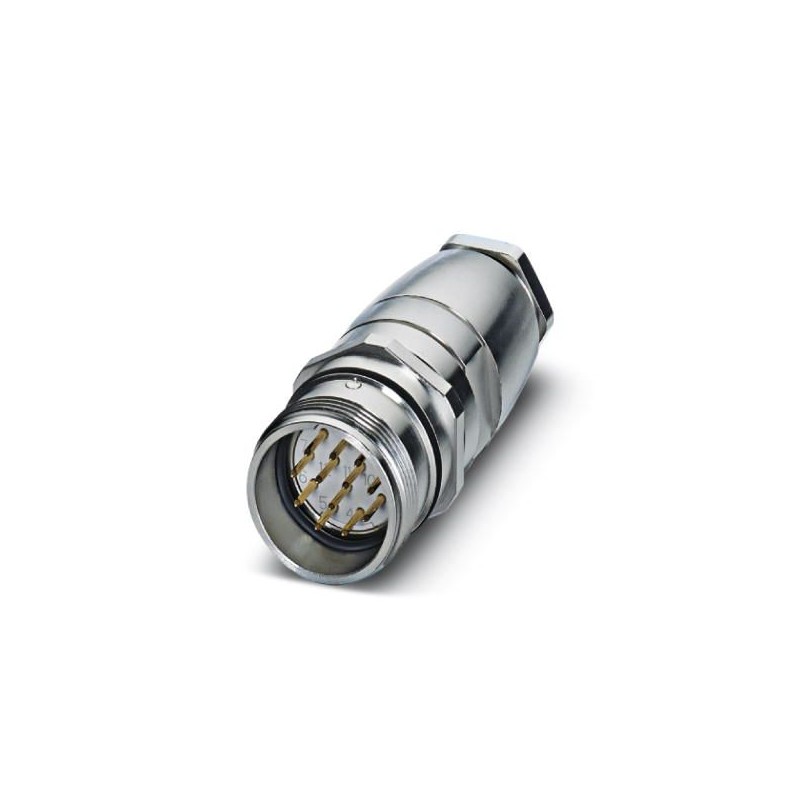

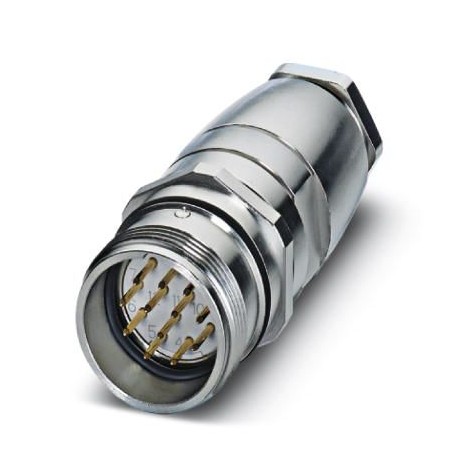

RC-17P1N127600 1601241 PHOENIX CONTACT Coupler connector, with Pg11 connection thread, straight, shielded: n..
RC-17P1N127600
1601241
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Coupler connector, with Pg11 connection thread, straight, shielded: no, Screw locking, M23, No. of pos.: 17, type of contact: Pin, Solder connection, cable diameter range: 8 mm ... 12 mm
M23, Plug-in coupling connector, RC, straight, shielded: no, Screw lock, No. of poles: 17, Direction of rotation: Standard, contact type: Male, Solder connection, cable diameter range: 8 mm ... 12 mm, coding:N
Connectors > Circular connector for field assembly (industrial connector)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260701eCl@ss 6.027260708eCl@ss 7.027440312eCl@ss 8.027440102eCl@ss 9.027440103
| Feature Name | Feature Value |
|---|---|
| With shield connection (EF002535) | No |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| With thread (EF003723) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
