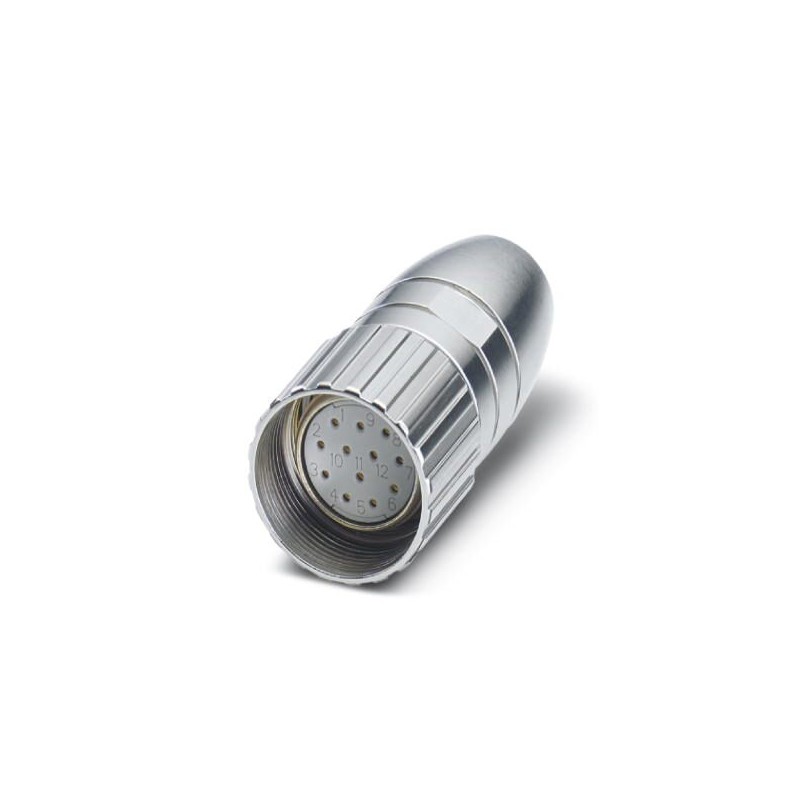

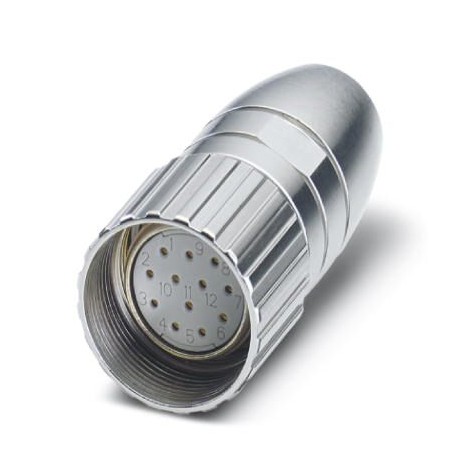

RC-12SDN8A80A5 1614588 PHOENIX CONTACT Cable connector RC-12SDN8A80A5 1614588
RC-12SDN8A80A5
1614588
PHOENIX_CONTACT
20
Cable connector - RC-12SDN8A80A5 - 1614588
Sensors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Cable connector, straight, shielded: yes, Screw locking, M23, No. of pos.: 12, type of contact: Socket, Crimp connection, cable diameter range: 6.5 mm ... 7.5 mm
Key Commercial Data
| Orderkey | 1614588 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626053486 |
| Custom tariff number | 85366990 |
Data of the insulating body
| Note | Order information: Order crimp contacts Ø 1 mm separately |
|---|---|
| Coding | N |
| Contact connection method | Crimp connection |
| Type of contacts | Socket |
| Application | Signal |
| Contact diameter of power contacts | 1 mm |
| Nominal current per power contact at 25°C | 8 A |
Housing data
| Housing material | Metal |
|---|---|
| Type of locking | Screw locking |
| Degree of protection (when plugged in) | IP67 |
| Thread type | M23 |
Cable seal data
| Cable diameter | 6.5 mm ... 7.5 mm |
|---|---|
| Sealing material | NBR |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27260701 |
|---|---|
| eCl@ss 6.0 | 27260708 |
| eCl@ss 8.0 | 27440102 |
| eCl@ss 9.0 | 27440103 |
ETIM
| ETIM 5.0 | EC002635 |
|---|---|
| ETIM 6.0 | EC002061 |
UNSPSC
| UNSPSC 13.2 | 39121413 |
|---|
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
