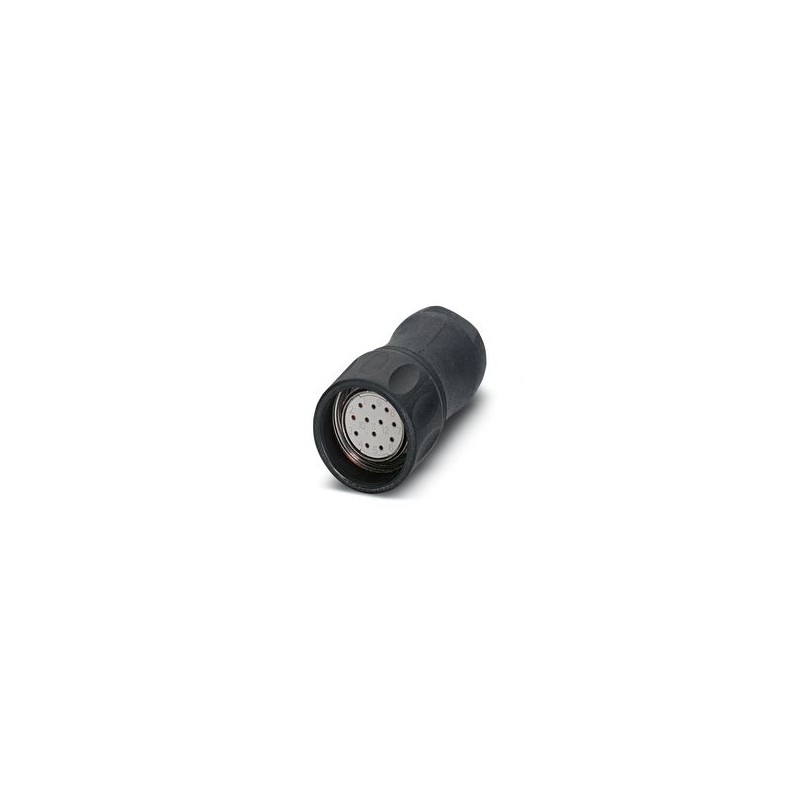

RC-12S2N8AK064X 1241190 PHOENIX CONTACT M23, Connector for cables, series: RC, Straight, plastic coated, shi..
RC-12S2N8AK064X
1241190
PHOENIX_CONTACT
20
M23, Connector for cables, series: RC, Straight, plastic coated, shielded: yes, Screw lock, No. of poles: 12, Direction of rotation: Opposite movement, type of contact connection: Female, Crimp connection, Cable diameter range: 6.5 mm ... 7.5 mm, coding: N, The item does not contain lead according to the RoHS II directive without exception 6c (Pb<.; 0.1%)
M23, Plug connector. for cables, RC, Straight, plastic-sheathed, shielded: yes, Screw locking, No. of poles: 12, Direction of rotation: Counter-movement, Contact type: Female, Crimped connection, cable diameter range: 6.5 mm ... 7.5 mm, encoding:N
M23, Cable connector, series: RC, Plastic straight, coated, shielded: yes, Screw locking, No. of poles: 12, Direction of rotation: Reversed, contact connection type: Female, Crimp connection, cable diameter: 6.5 mm 7.5 mm, coding: N, The article is lead-free according to RoHS II without exception 6c (Pb < 0.1 %)
Home > PHOENIX CONTACT
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General notes | Crimp contacts Ø 1 mm to be ordered separately |
| Product Type | Circular connectors (cable side) |
| Insulating body | |
| note | Ordering instructions: Crimp contacts Ø 1 mm to be ordered separately |
| Coding | N |
| Link | Crimp Connection |
| Contact Switching Type | female |
| Application | Signal |
| No. of poles | 12 |
| Direction of rotation | Inverted |
| Insertion plan | 12 |
| Contact DiameterPower Contacts | 1 mm |
| Sizing CurrentPower Contacts | 8 A |
| Nominal voltage | 48 V AC |
| 74 V DC | |
| Sizing Impulse Voltage | 1.5 kV |
| Overvoltage Category | Iii |
| Degree of pollution | 3 |
| custody | |
| Housing Material | Metal |
| Clamping Type | Screw locking |
| Screwing Pg | without |
| Degree of protection (engaged) | IP67 |
| Thread type | M23 |
| Seal | |
| Conductor Outer Diameter | 6.5 mm ... 7.5 mm |
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
