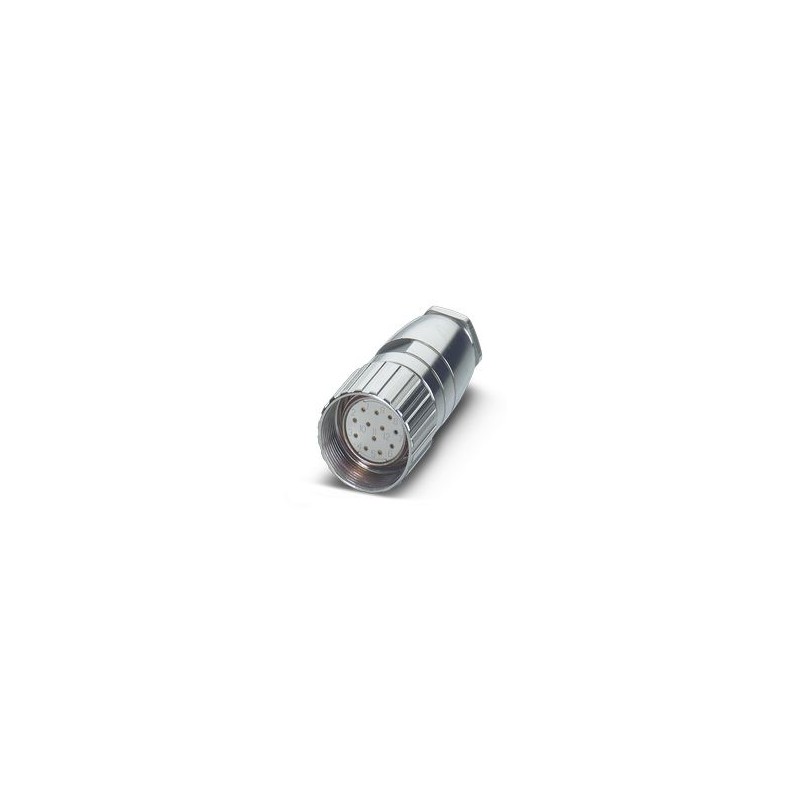

RC-12S2N8A1K00X 1241164 PHOENIX CONTACT M23, Plug connector. for cables, RC, straight, shielded: no, Screw l..
RC-12S2N8A1K00X
1241164
PHOENIX_CONTACT
M23, Plug connector. for cables, RC, straight, shielded: no, Screw locking, No. of poles: 12, Direction of rotation: Counter movement, contact type: Female, Crimped connection, cable diameter range: 7 mm ... 10.5 mm, encoding:N
M23, Cable connector, series: RC, straight, shielded: no, Screw locking mechanism, No. of pos.: 12, Direction of rotation: Counter direction, contact connection type: Socket, Crimp connection, cable diameter range: 7 mm ... 10.5 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲| General | Order crimp contacts Ø 1 mm separately |
| Product type | Circular connector (cable-side) |
| Insulating body | |
| Note | Order information: Order crimp contacts Ø 1 mm separately |
| Coding | N |
| Connection method | Crimp connection |
| Contact switching type | Socket |
| Application | Signal |
| Number of positions | 12 |
| Direction of rotation | Counter direction |
| Connection profile | 12 |
| Contact diameterPower contacts | 1 mm |
| Rated currentPower contacts | 8 A |
| Rated voltage | 48 V AC |
| 74 V DC | |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Housing | |
| Housing material | Metal |
| Type of locking | Screw locking mechanism |
| Pg screw connection | Pg11 |
| Degree of protection (plugged in) | IP65 |
| IP67 | |
| IP68 | |
| Thread type | M23 |
| Seal | |
| External cable diameter | 7 mm ... 10.5 mm |
