RC-12S1N8AK00NX
1241069
PHOENIX_CONTACT
1

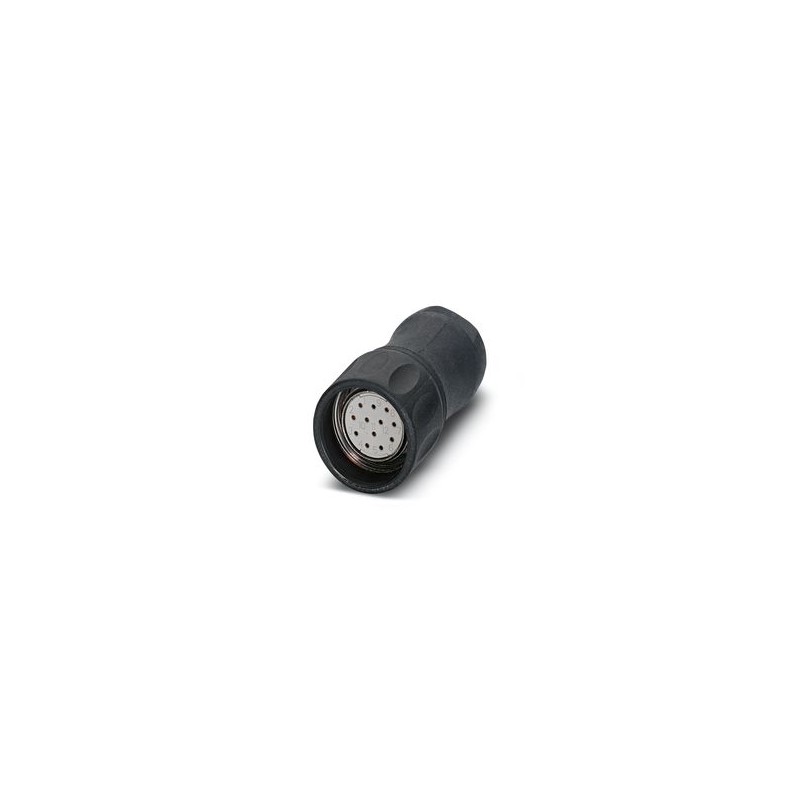

M23, Plug connector. for cables, RC, Straight, plastic sheathed, shielded: yes, Screw locking, No. of poles: 12, Direction of rotation: Standard, contact type: Female, Crimped connection, cable diameter range: 4.5 mm ... 5.5 mm, encoding:N
M23, Cable connector, series: RC, straight plastic-sheathed, shielded: yes, Screw locking mechanism, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 4.5 mm ... 5.5 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
General | Order crimp contacts Ø 1 mm separately |
Product type | Circular connector (cable-side) |
Insulating body | |
Note | Order information: Order crimp contacts Ø 1 mm separately |
Coding | N |
Connection method | Crimp connection |
Contact switching type | Socket |
Application | Signal |
Number of positions | 12 |
Direction of rotation | Standard |
Connection profile | 12 |
Contact diameterPower contacts | 1 mm |
Rated currentPower contacts | 8 A |
Rated voltage | 48 V AC |
74 V DC | |
Rated surge voltage | 1.5 kV |
Overvoltage category | III |
Degree of pollution | 3 |
Housing | |
Housing material | Metal |
Type of locking | Screw locking mechanism |
Pg screw connection | none |
Degree of protection (plugged in) | IP67 |
Thread type | M23 |
Seal | |
External cable diameter | 4.5 mm ... 5.5 mm |
Seal material | NBR |
