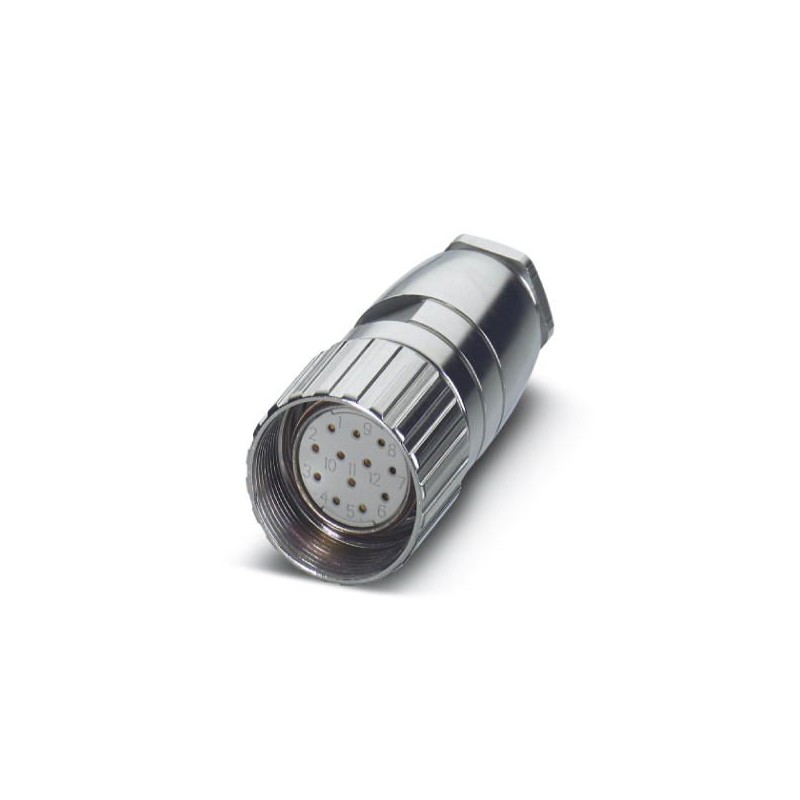

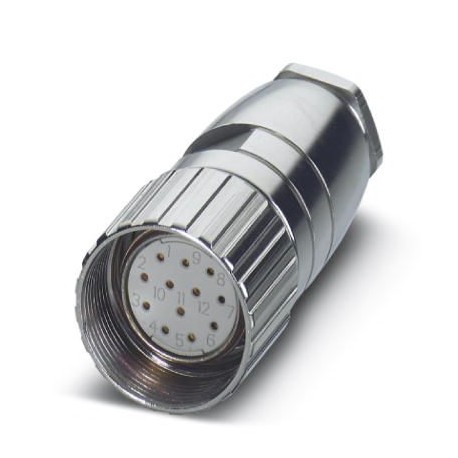

RC-12S1N8A1L00 1599155 PHOENIX CONTACT Cable connector
RC-12S1N8A1L00
1599155
PHOENIX_CONTACT
Cable connector
M23, Conect. plug. to be apar. wall poster., RC, straight, shielded: no, Screw lock, No. of poles: 12, Direction of rotation: Standard, contact type: Female, Crimped connection, Cable diameter range: 9 mm ... 13 mm, coding:N, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1241091
Connectors > Circular connector for field assembly (industrial connector)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data of the insulating body
| Note | Order information: Order crimp contacts Ø 1 mm separately |
|---|---|
| Coding | N |
| Contact connection method | Crimp connection |
| Type of contacts | Socket |
| Application | Signal |
| Number of positions | 12 |
| Contact diameter of power contacts | 1 mm |
| Nominal current per power contact at 25°C | 8 A |
| Nominal voltage, power contact | 150 V |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Overvoltage category | II |
| Degree of pollution | 3 |
Housing data
| Housing material | Metal |
|---|---|
| Type of locking | Screw locking |
| Degree of protection (when plugged in) | IP65 |
| IP67 | |
| Thread type | M23 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260701eCl@ss 6.027260708eCl@ss 7.027440312eCl@ss 8.027440102eCl@ss 9.027440103
