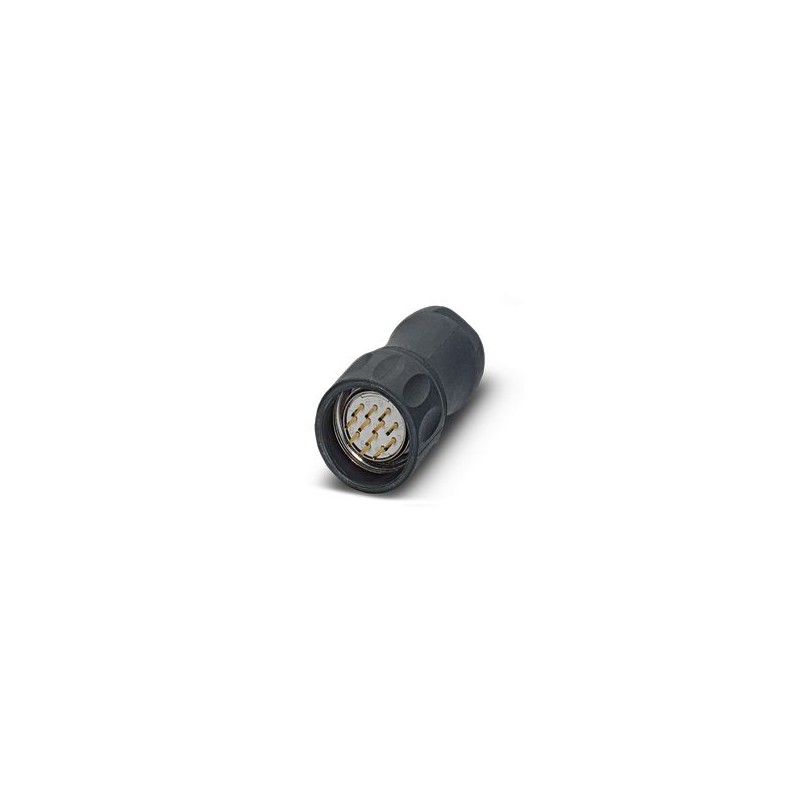

RC-12P1N12K0EFJX 1242995 PHOENIX CONTACT M23, Cable Connector, RC, Straight, Plastic-Sheathed, Shielded: Yes..
RC-12P1N12K0EFJX
1242995
PHOENIX_CONTACT
20
M23, Cable Connector, RC, Straight, Plastic-Sheathed, Shielded: Yes, Screw Locking, No. of Poles: 12, Direction of Rotation: Standard, Contact Type: Male, Weld Connection, Cable Diameter Range: 5.5 mm ... 6.5 mm, encoding:N, Item is lead-free according to RoHS II without the 6c (Pb< 0.1% exception)
M23, Cable connector, series: RC, straight plastic-sheathed, shielded: yes, Screw locking mechanism, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Pin, Solder cup, cable diameter range: 5.5 mm ... 6.5 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲| Product type | Circular connector (cable-side) |
| Insulating body | |
| Coding | N |
| Insertion/withdrawal cycles | 100 |
| Connection method | Solder cup |
| Contact switching type | Pin |
| Application | Signal |
| Number of positions | 12 |
| Direction of rotation | Standard |
| Connection profile | 12 |
| Contact diameterPower contacts | 1 mm |
| Litz wire cross-sectionPower contactsmin. | 0.08 mm² |
| Litz wire cross-sectionPower contactsmax. | 1 mm² |
| Rated currentPower contacts | 8 A |
| Rated voltage | 48 V AC |
| 74 V DC | |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Housing | |
| Housing material | Metal |
| Type of locking | Screw locking mechanism |
| Pg screw connection | none |
| Degree of protection (plugged in) | IP67 |
| Thread type | M23 |
| Seal | |
| External cable diameter | 5.5 mm ... 6.5 mm |
| Seal material | NBR |
