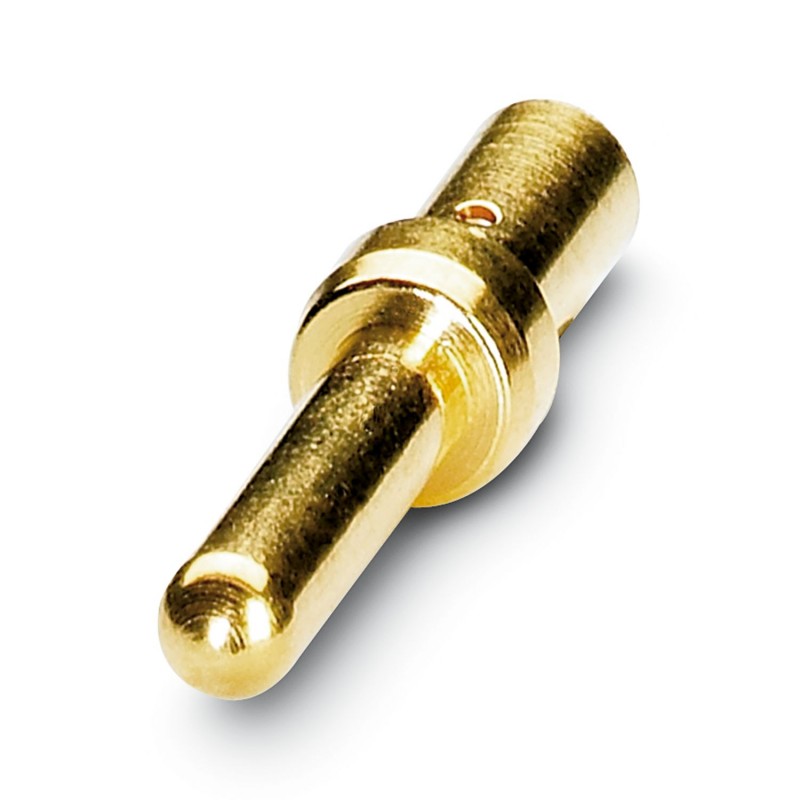

RC-11P2000 1596770 PHOENIX CONTACT Crimp contact
RC-11P2000
1596770
PHOENIX_CONTACT
100
Crimp contact
Crimp contact, Tap, machined, Single contact, contact diameter: 1 mm, crimping range: 0.08 mm² ... 0.22 mm², Alternative product according to RoHS II without exception 6c (Pb< 0.1%) art.code: 1240882
Crimp contact, Pin, turned, Single contact, contact diameter: 1 mm, crimp range: 0.08 mm2 ... 0.22 mm2, Contact release tool not necessary for the 12- and 17-pos. crimp versions of the M23-PRO series, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240882
Connectors > Contact for industrial connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Order information: | Contact release tool not necessary for the 12- and 17-pos. crimp versions of the M23-PRO series |
| Product type | Crimp contact |
| Contact material type | turned |
| Connection method | Crimp connection |
| Contact connection type | Pin |
| Conductor cross section | 0.08 mm² ... 0.22 mm² |
| Contact surface | Nickel-plated (Ni), with gold coating (Au) |
| Contact material | CuZn |
| Mechanical characteristics | |
| Contact diameter | 1 mm |
| Mechanical data | |
| Insertion/withdrawal cycles | 100 |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Type of electric connection (EF003961) | Crimp connection |
| Diameter plug-in contact (EF007320) | 1 mm |
| Material contact (EF007544) | Other |
| Material of contact surface (EF004020) | Other |
| Min. number of insertion cycles (EF012212) | 100 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
