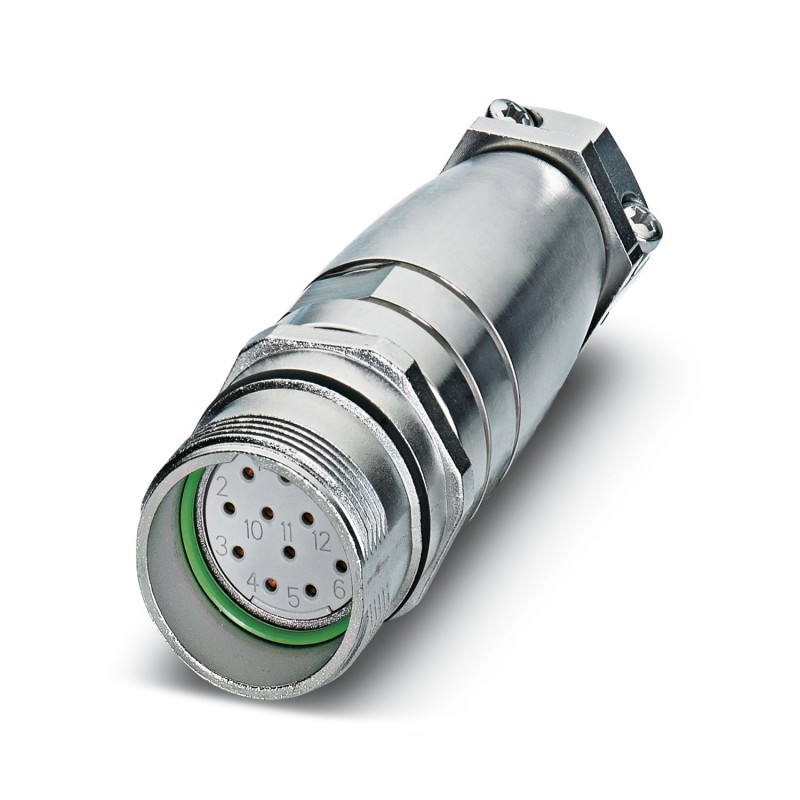

RC-09S2N12F106 1596642 PHOENIX CONTACT Coupler connector, with Pg9 connection thread, straight, shielded: ye..
RC-09S2N12F106
1596642
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Coupler connector, with Pg9 connection thread, straight, shielded: yes, Screw locking, M23, No. of pos.: 8+1, type of contact: Socket, Solder connection, cable diameter range: 7.5 mm ... 9.5 mm
M23, Conect. plug. to be apar. wall poster., RC, straight, shielded: yes, Screw lock, No. of poles: 8+1, Direction of rotation: Counter movement, contact type: Female, Solder connection, cable diameter range: 7.5 mm ... 9.5 mm, encoding:N
M23, Coupler connector, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 8+1, Direction of rotation: Counter direction, contact connection type: Socket, Solder cup, cable diameter range: 7.5 mm ... 9.5 mm, coding: N
Connectors > Circular connector for field assembly (industrial connector)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Circular connector (cable-side) |
| Thread type | M23 |
| Data management status | |
| Article revision | 03 |
| Flammability rating according to UL 94 | V0 |
| Conductor connection | |
| Connection method | Solder connection |
| Insulating body | |
| Coding | N |
| Insertion/withdrawal cycles | 50 |
| Connection method | Solder cup |
| Contact switching type | Socket |
| Application | Signal |
| Number of positions | 9 |
| Direction of rotation | Counter direction |
| Connection profile | 8+1 |
| Contact diameterPower contacts | 2 mm |
| Litz wire cross-sectionPower contactsmin. | 0.08 mm² |
| Litz wire cross-sectionPower contactsmax. | 2.5 mm² |
| Rated currentPower contacts | 20 A |
| Rated voltage | 48 V AC |
| 74 V DC | |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Contact diameterSignal contacts | 1 mm |
| Litz wire cross-sectionSignal contactsmin. | 0.08 mm² |
| Litz wire cross-sectionSignal contactsmax. | 1 mm² |
| Nominal current per signal contact | 8 A |
| Housing | |
| Order information: | Order contact inserts and cable clamping/shield accessories separately |
| Housing material | Metal |
| Type of locking | Screw locking mechanism |
| Pg screw connection | none |
| Degree of protection (plugged in) | IP67 |
| Thread type | M23 |
| Seal | |
| External cable diameter | 7.5 mm ... 9.5 mm |
| Ambient conditions | |
| Degree of protection | IP67 |
| Feature Name | Feature Value |
|---|---|
| With shield connection (EF002535) | No |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| With thread (EF003723) | Yes |
