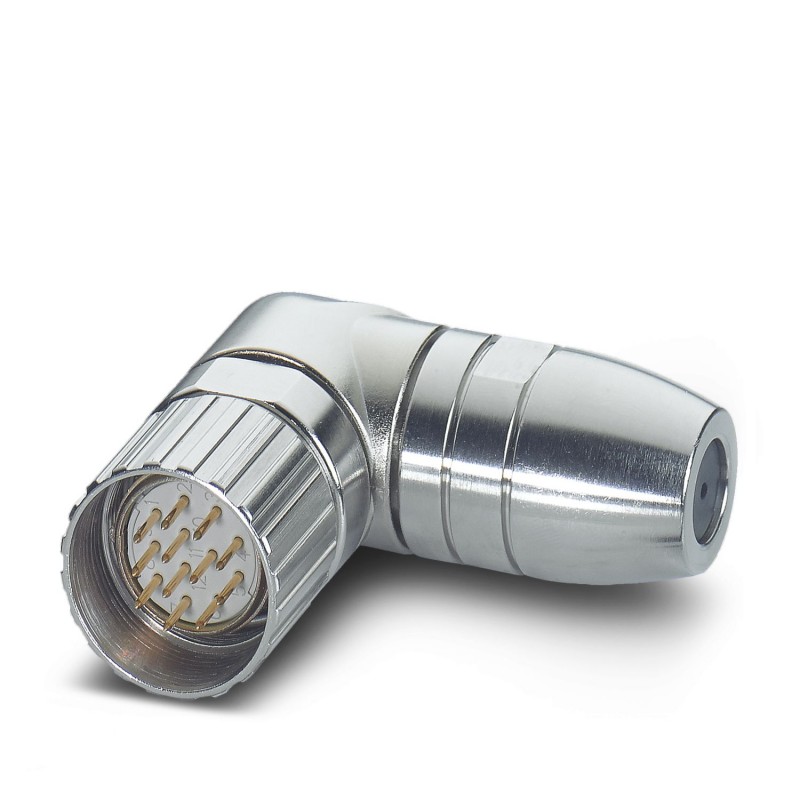

RC-06P1N12T0EQ 1610130 PHOENIX CONTACT Cable connector
RC-06P1N12T0EQ
1610130
PHOENIX_CONTACT
8
Cable connector
Sensors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1610130 |
|---|---|
| Packing unit | 8 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356262552 |
| Weight per Piece (excluding packing) | 149.730 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Data of the insulating body
| Coding | N |
|---|---|
| Insertion/withdrawal cycles mechanical | 50 |
| Contact connection method | Solder connection |
| Type of contacts | Pin |
| Application | Signal |
| Number of positions | 6 |
| Litz wire cross section of power contacts min. | 0.08 mm² |
| Litz wire cross section of power contacts max. | 2.5 mm² |
| Nominal current per power contact at 25°C | 20 A |
| Nominal voltage, power contact | 300 V |
| Rated surge voltage | 2.5 kV |
| Overvoltage category | II |
| Degree of pollution | 3 |
Housing data
| Note | Order information: Order contact inserts and cable clamping/shield accessories separately |
|---|---|
| Housing material | Metal |
| Type of locking | Screw locking |
| Degree of protection (when plugged in) | IP67 |
| Thread type | M23 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440102eCl@ss 8.027440102eCl@ss 9.027440103
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
