View larger

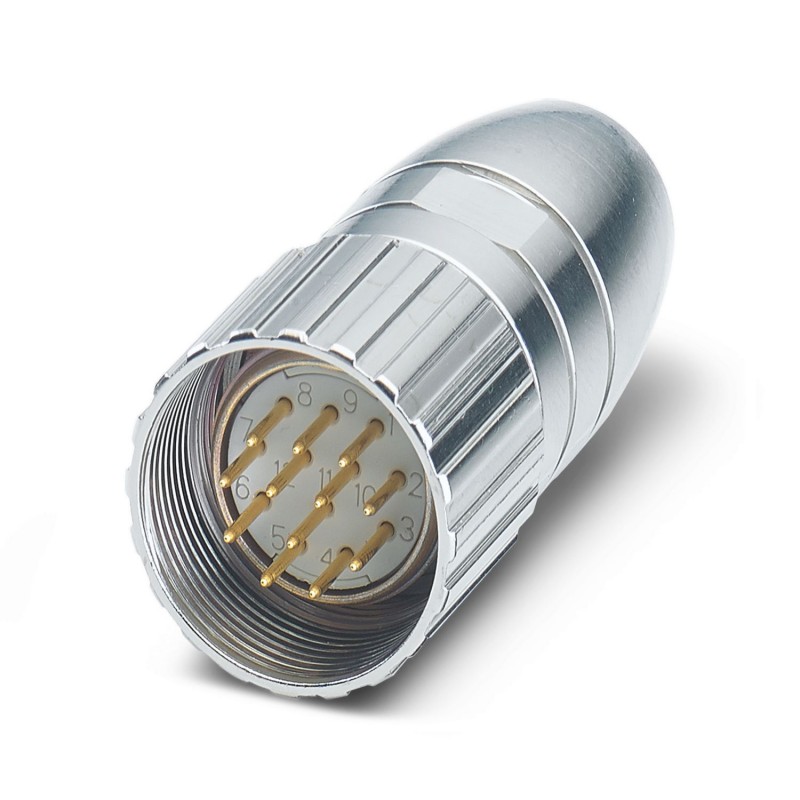

RC-06P1N1280DU 1625004 PHOENIX CONTACT Cable connector RC-06P1N1280DU 1625004
RC-06P1N1280DU
1625004
PHOENIX_CONTACT
20
Product on demand only, returns will not be accepted.
Cable connector - RC-06P1N1280DU - 1625004
M23, Cable connector, straight, shielded: no, Screw lock, No. of poles: 6, Direction of rotation: Standard, contact type: Male, Solder connection, cable diameter range: 4.5 mm ... 5.5 mm, coding:N, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1245288
Connectors > Circular connector for field assembly (industrial connector)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Cable connector, straight, shielded: yes, Screw locking, M23, No. of pos.: 6, type of contact: Pin, Solder connection, cable diameter range: 4.5 mm ... 5.5 mm
Key Commercial Data
| Orderkey | 1625004 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626127194 |
| Custom tariff number | 85366990 |
Data of the insulating body
| Coding | N |
|---|---|
| Insertion/withdrawal cycles mechanical | 50 |
| Contact connection method | Solder connection |
| Type of contacts | Pin |
| Application | Signal |
| Number of positions | 6 |
| Litz wire cross section of power contacts min. | 0.08 mm² |
| Litz wire cross section of power contacts max. | 2.5 mm² |
| Nominal current per power contact at 25°C | 20 A |
| Nominal voltage, power contact | 300 V |
| Rated surge voltage | 2.5 kV |
| Overvoltage category | II |
| Degree of pollution | 3 |
Housing data
| Housing material | Metal |
|---|---|
| Type of locking | Screw locking |
| Degree of protection (when plugged in) | IP67 |
| Thread type | M23 |
Cable seal data
| Cable diameter | 4.5 mm ... 5.5 mm |
|---|---|
| Sealing material | NBR |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 8.0 | 27440102 |
|---|---|
| eCl@ss 9.0 | 27440103 |
ETIM
| ETIM 5.0 | EC002635 |
|---|---|
| ETIM 6.0 | EC002061 |
UNSPSC
| UNSPSC 13.2 | 39121413 |
|---|
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
