> PHOENIX CONTACT >Power Supplies (PS)>QUINT4-PS/1AC/24DC/2.5/SC 2904598 PHOENIX CONTACT Power supply unit
Previous Product Next Product

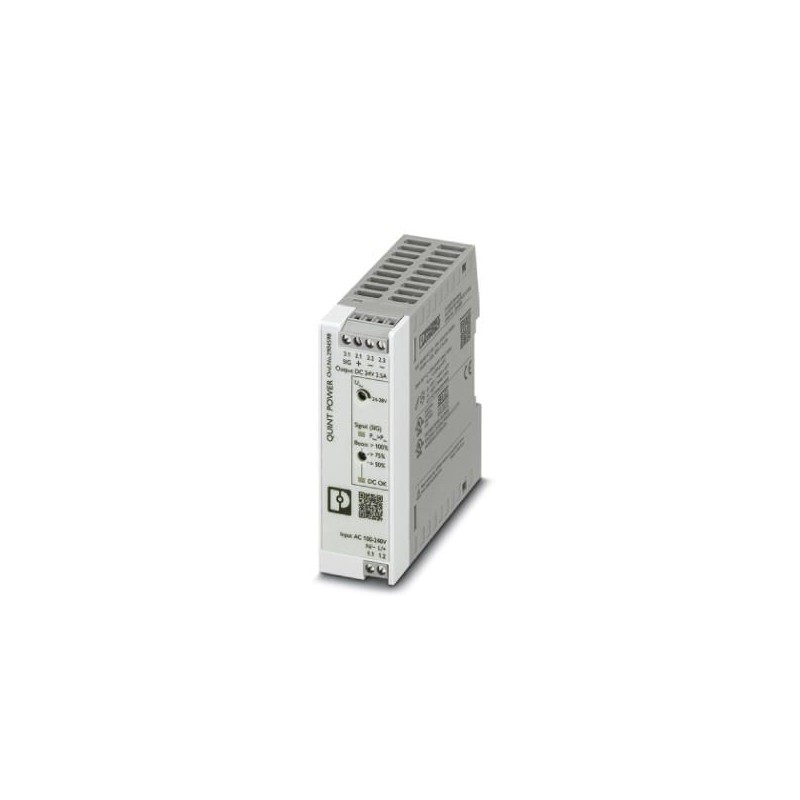

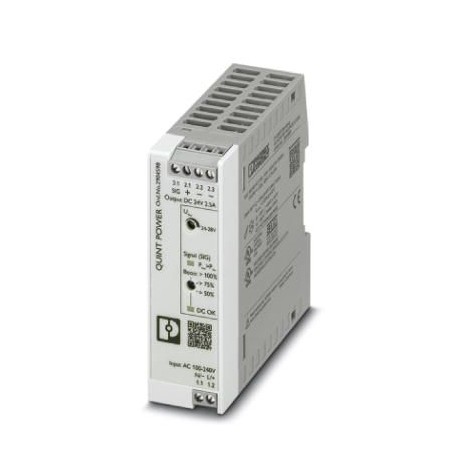

QUINT4-PS/1AC/24DC/2.5/SC 2904598 PHOENIX CONTACT Power supply unit View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

QUINT4-PS/1AC/24DC/2.5/SC 2904598 PHOENIX CONTACT Power supply unit

QUINT4-PS/1AC/24DC/2.5/SC

2904598

PHOENIX_CONTACT

Power supply unit

More details


Power Supplies (PS)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $159.74
Unit price: $159.74

Quantity Price
1+$159.74
2+$144.42
4+$130.25
6+$124.48
8+$122.47
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Key Commercial Data

Orderkey2904598
Packing unit1 pc
GTIN4055626156040
Weight per Piece (excluding packing)313.100 g
Custom tariff number85044030
Country of originDE (Germany)

Dimensions

Width32 mm
Height99 mm
Depth90 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K)
Ambient temperature (start-up type tested)-40 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2
Installation height≤ 5000 m (> 2000 m, observe derating)

Input data

Input voltage range100 V AC ... 240 V AC -15 % ... +10 %
110 V DC ... 250 V DC -20 % ... +40 %
Dielectric strength maximum300 V AC 30 s
Discharge current to PE< 0.25 mA (264 V AC, 60 Hz)
Current consumption0.85 A (100 V AC)
0.7 A (120 V AC)
0.39 A (230 V AC)
0.37 A (240 V AC)
Nominal power consumption71 VA
Inrush surge currenttyp. 10 A (at 25 °C)
Mains bufferingtyp. 54 ms (120 V AC)
typ. 54 ms (230 V AC)
Input fuse3.15 A (slow-blow, internal)
Choice of suitable circuit breakers6 A ... 16 A (Characteristic B, C or comparable)
Type of protectionTransient surge protection
Protective circuit/componentVaristor

Output data

Nominal output voltage24 V DC
Setting range of the output voltage (USet)24 V DC ... 28 V DC (constant capacity)
Nominal output current (IN)2.5 A
Static Boost (IStat.Boost)3.125 A (≤ 40 °C)
Dynamic Boost (IDyn.Boost)5 A (≤60 °C (5 s), Input <150 V AC Derating 0.5 %/V)
Derating> 60 °C (2.5%/K)
Connection in parallelYes, for redundancy and increased capacity
Connection in seriesyes
Feedback resistance≤ 35 V DC
Protection against surge voltage on the output≤ 32 V DC
Control deviation< 0.5 % (Static load change 10 % ... 90 %)
< 2 % (Dynamic load change 10 % ... 90 %, (10 Hz))
< 0.1 % (change in input voltage ±10 %)
Residual ripple< 40 mVPP(with nominal values)
Output power60 W
Typical response time500 ms
Maximum power dissipation in no-load condition< 1 W (230 V AC)
< 1 W (120 V AC)
Power loss nominal load max.< 5 W (230 V AC)
< 5 W (120 V AC)

General

Net weight0.244 kg
Efficiencytyp. 91.9 % (120 V AC)
typ. 92.6 % (230 V AC)
Insulation voltage input/output4 kV AC (type test)
3 kV AC (routine test)
Protection classII
Degree of protectionIP20
MTBF (IEC 61709, SN 29500)> 1347000 h (25 °C)
> 734000 h (40 °C)
> 295000 h (60 °C)
Assembly instructionsDIN rail mounting

Connection data, input

Connection methodScrew connection
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.14
Stripping length8 mm

Connection data, output

Connection methodScrew connection
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.14
Stripping length8 mm

Connection data for signaling

Connection methodScrew connection
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.14
Stripping length8 mm

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Standards/regulationsEN 61000-4-2
Contact discharge4 kV (Test Level 2)
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 1 GHz
Test field strength10 V/m (Test Level 3)
Frequency range1.4 GHz ... 2 GHz
Test field strength3 V/m (Test Level 2)
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
Voltage10 V (Test Level 3)
Conducted noise emissionEN 55016 EN 61000-6-4 (Class A)
Standards/regulationsEN 61000-4-8
EN 61000-4-11
EN 61000-4-9
EN 61000-4-12
EN 61000-4-16
EN 61000-4-18
Standard - Safety of transformersEN 61558-2-16
Standard - Electrical safetyIEC 61010-2-201 (SELV)
Standard - power supply devices for low voltage with DC outputEN 61204-3
Standard – Safety extra-low voltageIEC 61010-1 (SELV)
IEC 61010-2-201 (PELV)
Standard - Safe isolationIEC 61558-2-16
IEC 61010-2-201
Standard – Limitation of mains harmonic currentsEN 61000-3-2
UL approvalsUL Listed UL 61010-1
UL Listed UL 61010-2-201
UL 1310 Class 2 Power Units
ANSI/UL 121201 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)< 15 Hz, ±2.5 mm amplitude; 15 Hz ... 100 Hz: 2.3 g 90 Min. (in accordance with IEC 60068-2-6)
Overvoltage category (EN 61010-1)II (≤ 5000 m)
Overvoltage category (EN 62477-1)III (≤ 2000 m)

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
