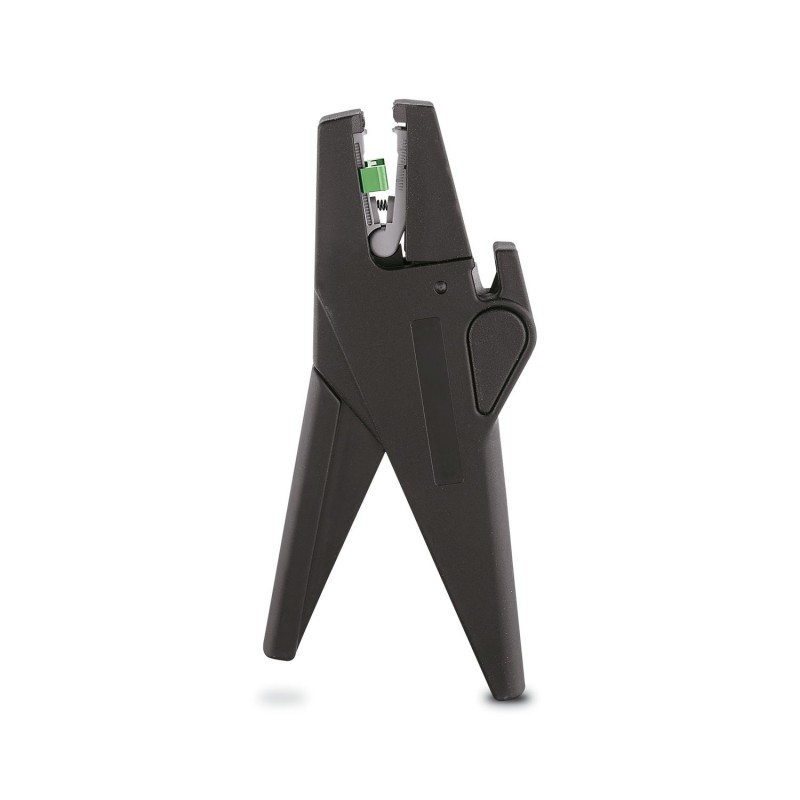

QUICK WIREFOX 6 NEUTRAL 1204588 PHOENIX CONTACT Stripping pliers
QUICK WIREFOX 6 NEUTRAL
1204588
PHOENIX_CONTACT
Stripping pliers
De-insulating pliers, for PVC-insulated cables, de-insulating range: 0.08 to 6 mm², cable cutters up to 6 mm² for flexible cable or 4 mm² for rigid cable
Wire stripping pliers for PVC-insulated lines, stripping range: 0.08 to 6 mm2, cable cutters up to 6 mm2 flexible and 4 mm2 rigid
Hand tools > Wire stripper pliers
TOOL fox
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1204588 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4017918256029 |
| Weight per Piece (excluding packing) | 224.000 g |
| Custom tariff number | 82032000 |
| Country of origin | GB (United Kingdom) |
General
| Note | Wire cutters up to 6 mm² |
|---|---|
| Wire cutters up to AWG 10 | |
| Color | black |
| Min. AWG, flexible, multi-strand | 10 |
| AWG max., flexible, multi-strand | 30 |
| Weight | 0.2 kg |
| Min. cross section | 0.08 mm² |
| Max. cross section | 6 mm² |
Environmental Product Compliance
| California Proposition 65 | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
|---|
Classifications
eCl@ss 10.0.121043706eCl@ss 4.021040301eCl@ss 4.121040301eCl@ss 5.021040301eCl@ss 5.121040300eCl@ss 6.021043700eCl@ss 7.021043706eCl@ss 8.021043706eCl@ss 9.021043706
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 205 mm |
| Strip range cross-section (EF007568) | 0.08 mm² |
| Strip range diameter (EF007567) | 0.5 mm |
| Strip length adjustable (EF006222) | Yes |
| Depth of notch adjustable (EF005931) | No |
| Self-adjusting (EF022889) | Yes |
| Jaw length (EF005953) | 6 mm |
| Head width (EF006645) | 17 mm |
| Head height (EF025409) | 38 mm |
| Longitudinal section (EF001805) | No |
| Round edge (EF001806) | No |
| Spiral cut (EF005299) | No |
| With wire cutter (EF000163) | Yes |
| Insulated (EF000019) | Yes |
| Isolation protection 1000 V (EF001463) | No |
| Handle cover (EF013792) | Plastic grips |
| Grip design (EF007841) | 1-component |
| Surface protection (EF000139) | Untreated |
| Surface treatment (EF025109) | Untreated |
| ESD tested (EF009014) | No |
| With impact protection (EF007939) | Yes |
| Weight (EF000167) | 205 g |
| VDE tested (EFDE0001) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MARKING SYSTEMS PHOENIX EN.pdf | 47 Mbytes |
|
