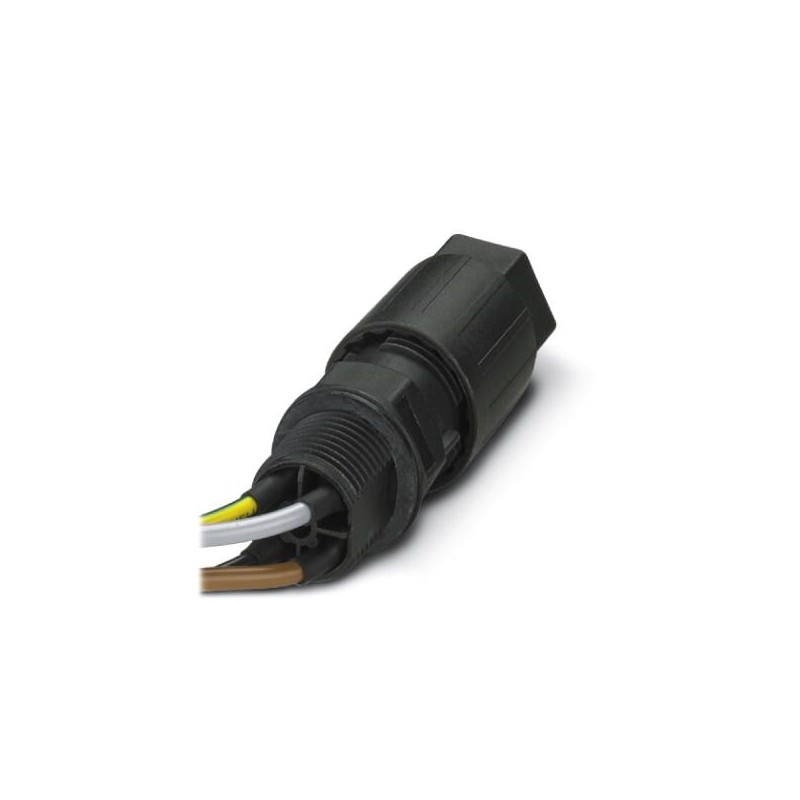

QPD W3PE1,5 8-13 M20 0,15BK AE 1136438 PHOENIX CONTACT Panel feed-through, QUICKON connection, number of pos..
QPD W3PE1,5 8-13 M20 0,15BK AE
1136438
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Panel feed-through, QUICKON connection, number of positions: 3+PE, 0.5 mm² ... 1.5 mm², 690 V, 17.5 A, black, with QUICKON nut, cable diameter range: 10 mm ... 13 mm, assembly thread: M20, Single wires, 1.5 mm², cable length: 0.15 m, Ferrules
Feedthrough, QUICKON connection, number of poles: 3+PE, 0.5 mm² ... 1.5 mm², 690 V, 17.5 A, black, with QUICKON nut, outer diameter of cable: 10 mm ... 13 mm, mounting thread: M20, Single conductors, 1.5 mm², cable length: 0.15 m, Ferrules
Pluggable building installation systems > Device connection for plug-in building installation
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲
General
| Type | QPD 4x1,5 |
|---|---|
| Length of cable | 0.15 m |
| Color | black |
| Locking type | Screw locking |
| Connection method | QUICKON connection |
| IDC connection | |
| Number of positions | 4 |
| Note number of positions | 3+PE |
| Tightening torque, union nut | 8 Nm |
| Tightening torque, counter nut | 5 Nm |
| Number of connections | 10 |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section solid min. | 0.5 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 16 |
Cabel
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
|---|---|
| Wire insulation material | PVC/PE/TPE/rubber |
| Wire diameter including insulation | 1.6 mm ... 3 mm |
| External cable diameter | 10 mm ... 13 mm |
| Conductor cross section | 1.5 mm² |
| Wire colors | Black, black, black, green-yellow |
| Position marking | 1, 2, 3, PE |
Ambient conditions
| Degree of protection | IP66 |
|---|---|
| IP68 (2 m / 24 h) | |
| IP69K | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
Electrical characteristics
| Nominal current IN | 17.5 A |
|---|---|
| Rated current | 17.5 A |
| Rated voltage (III/3) | 690 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 6 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 8 kV |
Material data
| Contact material | Cu |
|---|---|
| Contact surface material | silver-plated |
| Contact carrier material | PA |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF000228) | 690 V |
| Rated current (EF000227) | 17.5 A |
| Number of poles (EF001391) | 4 |
| Degree of protection (IP) (EF005474) | IP66 |
| Connection size thread (EF004756) | M20 |
| Number of connections per pole (EF006769) | 1 |
| Pole codification (EF006771) | 1, 2, 3, PE |
| Mechanical coding (EF002910) | No |
| Colour coding/contact insert (EF006772) | Black |
| Colour of the separate adapter piece (EF008312) | Black |
| Housing colour (EF000136) | Black |
| Housing material (EF001596) | Polyamide (PA) |
| Halogen free (EF000025) | No |
| Surface treatment contacts (EF002558) | Silver-plated |
| Length (EF001438) | 71.66 mm |
| Height (EF000040) | 26 mm |
| Width (EF000008) | 26 mm |
