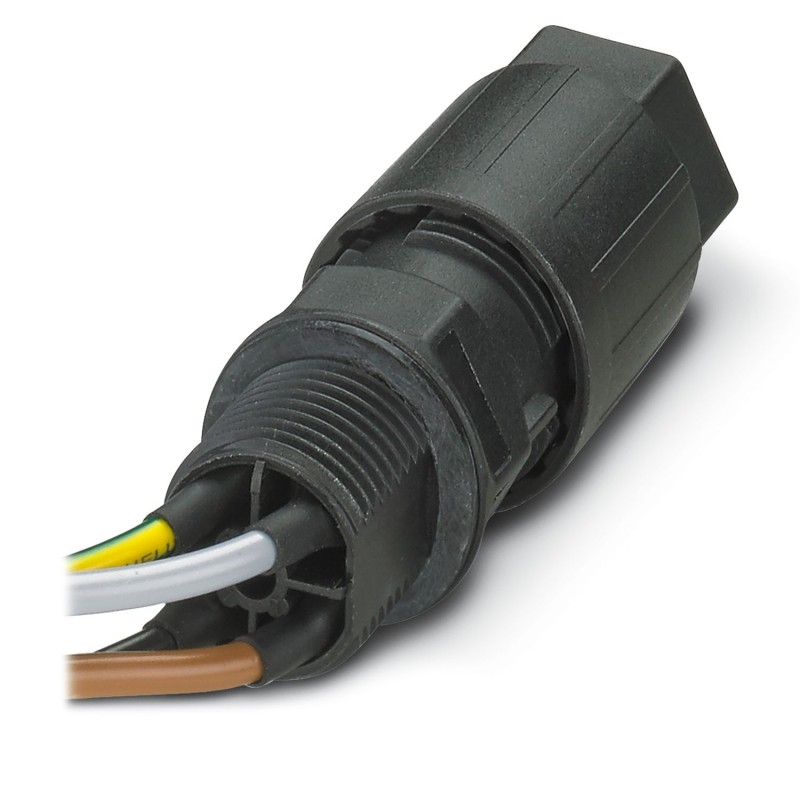

QPD W3PE1,5 6-10 M25 0,1 BKKTH 1103638 PHOENIX CONTACT Panel feed-through, 1.5 mm², cable length: 0.1 m
QPD W3PE1,5 6-10 M25 0,1 BKKTH
1103638
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Panel feed-through, 1.5 mm², cable length: 0.1 m
Feedthrough, number of poles: 3+PE, black, 1.5 mm², cable length: 0.1 m
Panel feed-through, product family: QPD, number of positions: 3+PE, black, 1.5 mm2, cable length: 0.1 m
Pluggable building installation systems > Device connection for plug-in building installation
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Panel feed-through |
| Product family | QPD |
| Type | QPD 4x2,5 |
| Number of positions | 4 |
| Connection profile | 3+PE |
| Special properties | Ring cable lug M4 |
| Data management status | |
| Article revision | 03 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection technology | |
| Frequency of connections between conductors of the same cross section | max. 10 |
| Mechanical data | |
| Insertion/withdrawal cycles | max. 50 |
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| Cable length | 0.1 m |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
| Cable cross section | 1.5 mm² |
| Ambient conditions | |
| Degree of protection | Touch-proof when not plugged in (IP2X) |
| Impact strength | IK07 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Built-in version (EF006776) | Built-in part/plug-in connection |
| Number of connections per pole (EF006769) | 1 |
| Mechanical coding (EF002910) | No |
| Colour coding/contact insert (EF006772) | Black |
| Housing colour (EF000136) | Black |
| Halogen free (EF000025) | No |
| Length (EF001438) | 159.9 mm |
| Height (EF000040) | 30.05 mm |
| Width (EF000008) | 30.06 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
