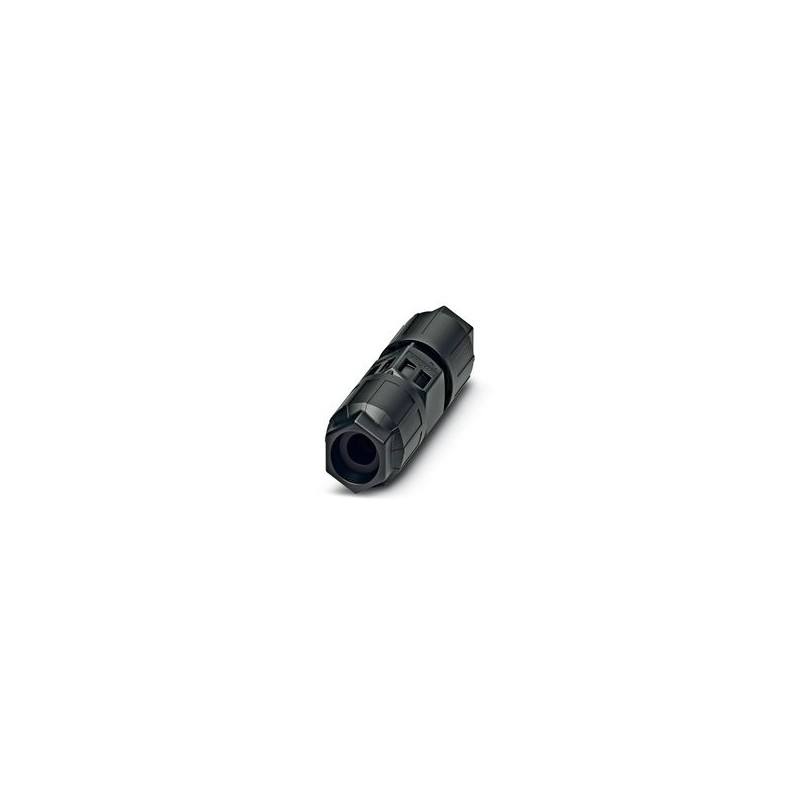

QPD C 2PE1,5 2X5-7 BK AT 1440112 PHOENIX CONTACT Cable connector, product family: QPD, number of poles: 2+PE..
QPD C 2PE1,5 2X5-7 BK AT
1440112
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Cable connector, product family: QPD, number of poles: 2+PE, 17.5 A, PA, black, coding: Encoder profile
Cable Splicers, Pole Number: 2+PE, 17.5 A, Black
Conductor connectors, number of positions: 2+PE, 17.5 A, black
Pluggable building installation systems > Plug-in connector for plug-in building installation
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Type | QPD 3x1,5 |
| Product type | Cable connector |
| Product family | QPD |
| Number of positions | 3 |
| Connection profile | 2+PE |
| Position marking | 1, 2, PE |
| Series | QPD |
| Coding | Coding profile |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Dimensional drawing |  |
| Width | 25 mm |
| Height | 25 mm |
| Length | 89.4 mm |
| Diameter | 25 mm |
| Contact resistance | < 3 mΩ |
| Nominal voltage UN | 690 V AC |
| 690 V DC | |
| Nominal current IN | 17.5 A |
| Mechanical data | |
| Insertion/withdrawal cycles | max. 50 |
| Material | PA |
| Cu | |
| Silver-plated | |
| Flammability rating according to UL 94 | V0 |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
| Wire diameter including insulation | 1.6 mm ... 3 mm |
| Position marking | 1, 2, PE |
| Material wire insulation | PVC/PE/TPE/rubber |
| Halogen-free | yes |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (2 m / 24 h) | |
| IP69K | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
