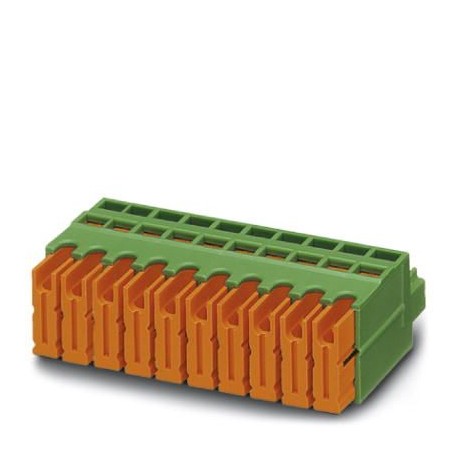

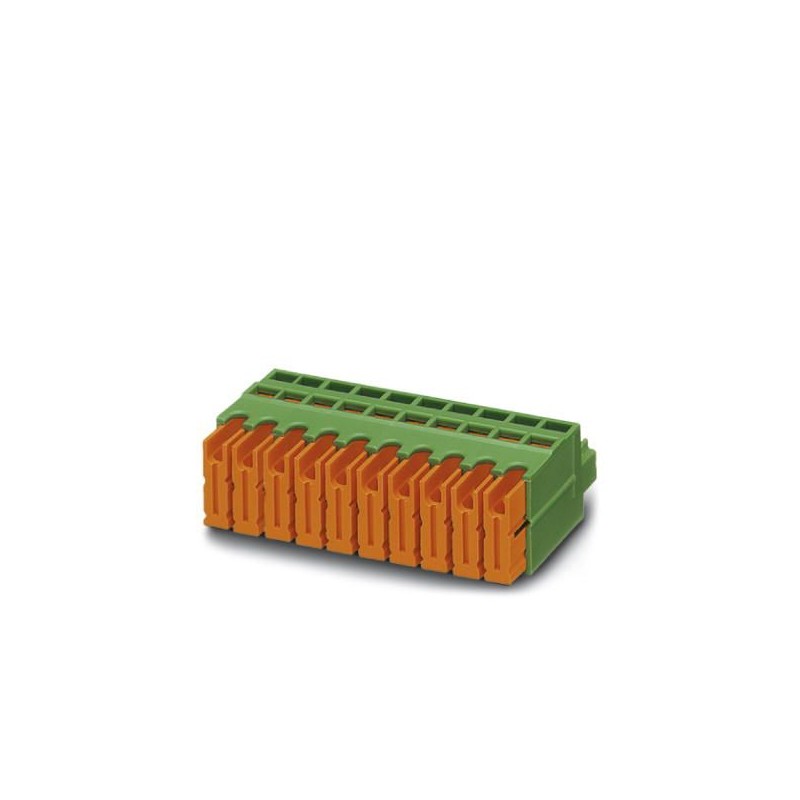

QC 0,5/ 4-ST-3,81 BD:NZ 1728691 PHOENIX CONTACT Printed-circuit board connector
QC 0,5/ 4-ST-3,81 BD:NZ
1728691
PHOENIX_CONTACT
50
Printed-circuit board connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1728691 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| GTIN | 4046356145213 |
| Weight per Piece (excluding packing) | 3.890 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
General
| Range of articles | QC 0,5/..-ST |
|---|---|
| Number of positions | 4 |
| Connection method | Displacement connection |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 200 V |
| Rated voltage (III/2) | 200 V |
| Rated voltage (II/2) | 400 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 6 A |
| Nominal cross section | 0.5 mm² |
Connection data
| Conductor cross section flexible min. | 0.34 mm² |
|---|---|
| Conductor cross section flexible max. | 0.5 mm² |
| Conductor cross section AWG min. | 22 |
| Conductor cross section AWG max. | 20 |
| Minimum AWG according to UL/CUL | 24 |
| Maximum AWG according to UL/CUL | 20 |
| Wire diameter incl. insulation | 2.2 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440309eCl@ss 8.027440309eCl@ss 9.027440309
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
