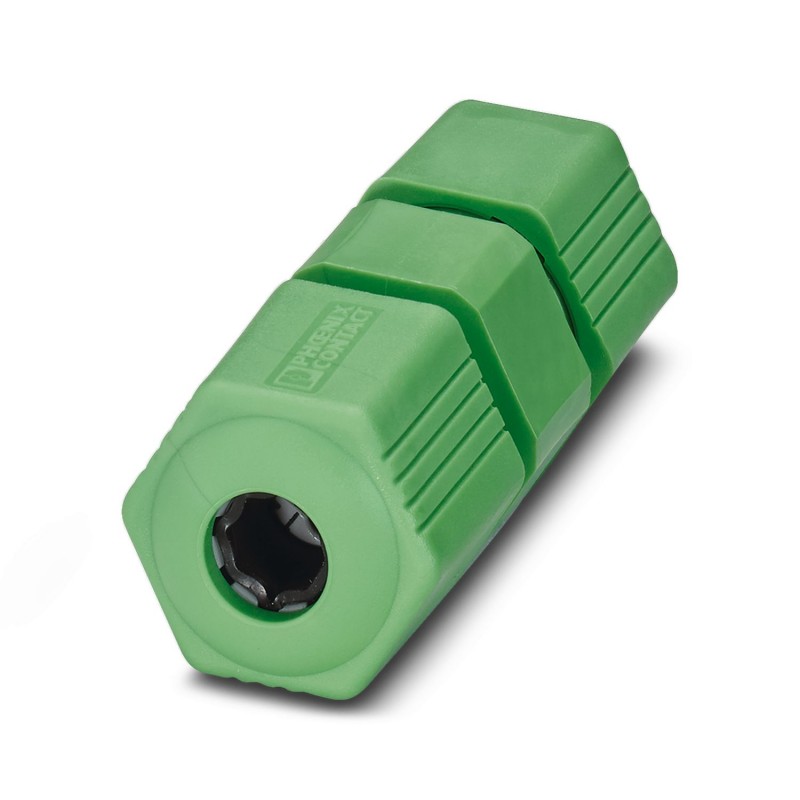

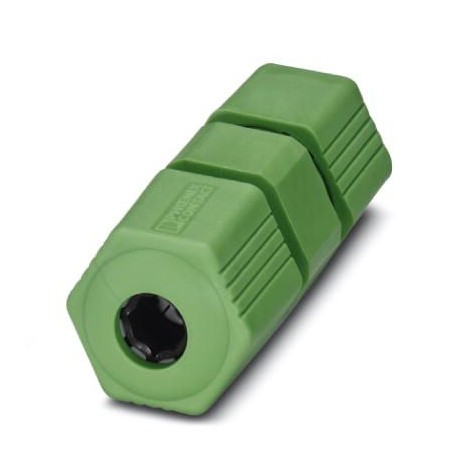

Q 1,5/3IDC/13-13KU-KU
1670248
PHOENIX_CONTACT
1
Conductor connectors
Pluggable building installation systems > Plug-in connector for plug-in building installation
QUICKON Installation System (QPD)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1670248 |
---|---|
Packing unit | 1 pc |
Catalog page | Page 19 (PC-2002) |
GTIN | 4017918146504 |
Weight per Piece (excluding packing) | 34.700 g |
Custom tariff number | 85369010 |
Country of origin | PL (Poland) |
Connection | If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. |
---|---|
Color | green |
Locking type | without |
Connection method | QUICKON connection |
IDC connection | |
Number of positions | 3 |
Wrench size, union nut | 24 mm |
Tightening torque, union nut | 2.5 Nm |
Wrench size, contact carrier | 24 mm |
Number of connections | 3 |
Conductor cross section flexible min. | 0.75 mm² |
Conductor cross section flexible max. | 1.5 mm² |
Conductor cross section solid min. | 0.75 mm² |
Conductor cross section solid max. | 1 mm² |
Conductor cross section AWG min. | 18 |
Conductor cross section AWG max. | 16 |
Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 Cl.2-5, min. wire diameter 0.2 mm |
---|---|
Wire insulation material | PVC / PE |
Wire diameter including insulation | >= 3 mm |
External cable diameter | 7 mm ... 9 mm |
Position marking | 1, 2, 3 |
Degree of protection | IP65 |
---|---|
IP67 | |
Ambient temperature (operation) | -25 °C ... 80 °C |
-25 °C ... 50 °C (when the conductor is connected. Specifications of the cable manufacturer must also be observed.) | |
Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Temperature when conductor connected | -5 °C ... 50 °C |
Nominal current IN | 17.5 A |
---|---|
Rated voltage (III/3) | 250 V |
Rated voltage (III/2) | 320 V |
Rated voltage (II/2) | 630 V |
Rated surge voltage (III/3) | 6 kV |
Rated surge voltage (III/2) | 6 kV |
Rated surge voltage (II/2) | 6 kV |
QUICKON connectability | max. 10 (if the conductor is connected more than once, seal and cap may need to be replaced.) |
---|---|
Impact category | 3 |
Category of shock impact | IK06 |
Contact material | Copper alloy |
---|---|
Contact surface material | Tin-plated |
Contact carrier material | PA 6.6 |
Insulating material | PA |
Flammability rating according to UL 94 | V0 |
Overvoltage category | III |
Degree of pollution | 3 |
Connection in acc. with standard | CUL |
---|---|
Flammability rating according to UL 94 | V0 |
China RoHS | Environmentally Friendly Use Period = 50 |
---|---|
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
