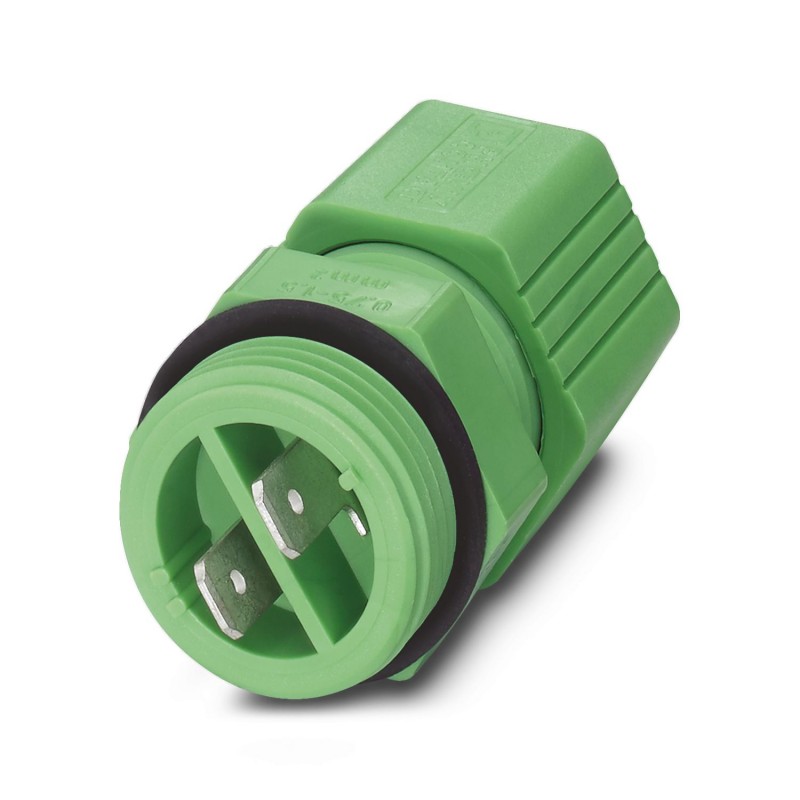

Q 1,5/2FL/11-M20KU-ESA 1640647 PHOENIX CONTACT Panel feed-through
Q 1,5/2FL/11-M20KU-ESA
1640647
PHOENIX_CONTACT
10
Panel feed-through
Feedthrough, for outdoor wall mounting with manual weld connection/flat plug connection, 4.8 x 0.8 mm
Panel feed-through, for external wall mounting, with manual solder/slip-on connection, 4.8 x 0.8 mm
Pluggable building installation systems > Device connection for plug-in building installation
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | Panel feed-through |
| Number of positions | 2 |
| Position marking | 1, 2 |
| Number of connections | 2 |
| Number of connections per position | 1 |
| Shielded | no |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection technology | |
| Connection method On the device side | Manual solder/slip on connection |
| Frequency of connections between conductors of the same cross section | 10 (if the conductor is connected more than once, seal and cap may need to be replaced.) |
| Conductor connection | |
| Conductor cross section flexibel | 0.75 mm² ... 1.5 mm² |
| Conductor cross section solid | 0.75 mm² ... 1 mm² |
| Connection cross section AWG | 18 ... 16 |
| Tightening torque Union nut | 2.5 Nm |
| Tightening torque Contact carrier | 3.75 Nm |
| Tightening torque Locking nut | 3.75 Nm |
| Wrench size Union nut | 22 mm |
| Wrench size Contact carrier | 22 mm |
| Dimensional drawing |  |
| Width | 22 mm |
| Height | 22 mm |
| Length | 43.7 mm |
| Rated surge voltage (III/3) | 6 kV |
| Contact resistance | < 3 mΩ |
| rated voltage (II/2) | 630 V (with insulating sleeve) |
| rated voltage (III/2) | 320 V (with insulating sleeve) |
| Rated voltage (III/3) | 250 V (with insulating sleeve) |
| Nominal voltage UN | 250 V AC |
| 250 V DC | |
| Nominal current IN | 17.5 A (15 A with slip-on sleeve 2.5 mm²; 12 A with slip-on sleeve 1.5 mm².) |
| Color (Housing) | green (RAL 6021) |
| Material Housing | PA |
| Flammability rating according to UL 94 | V0 |
| Material wire insulation | PVC / PE |
| Contact material | Copper alloy |
| Contact surface material | Pre-nickel plated and tin-plated |
| Contact carrier material | PA 6.6 |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 Cl.2-5, min. wire diameter 0.2 mm |
| Wire diameter including insulation | >= 3 mm |
| Position marking | 1, 2 |
| Mounting type | Front mounting M20 |
| Assembly note | If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Impact strength | IK06 |
| Ambient temperature (operation) | -25 °C ... 80 °C (Specifications of the cable manufacturer must be observed.) |
| -25 °C ... 50 °C (when the conductor is connected. Specifications of the cable manufacturer must also be observed.) | |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF000228) | 250 V |
| Rated current (EF000227) | 17.5 A |
| Number of poles (EF001391) | 2 |
| Degree of protection (IP) (EF005474) | IP65 |
| Connection size thread (EF004756) | M20 |
| Number of connections per pole (EF006769) | 1 |
| Pole codification (EF006771) | 1, 2 |
| Mechanical coding (EF002910) | No |
| Colour coding/contact insert (EF006772) | Green |
| Colour of the separate adapter piece (EF008312) | Other |
| Housing colour (EF000136) | Green |
| Housing material (EF001596) | Polyamide (PA) |
| Halogen free (EF000025) | No |
| Surface treatment contacts (EF002558) | Other |
| Length (EF001438) | 43.7 mm |
| Height (EF000040) | 22 mm |
| Width (EF000008) | 22 mm |
