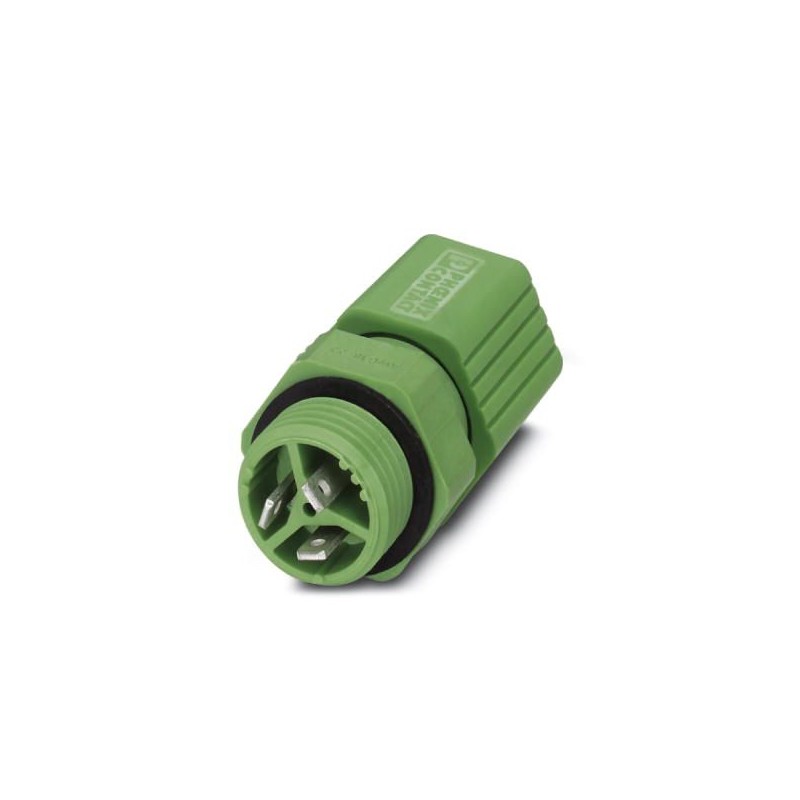

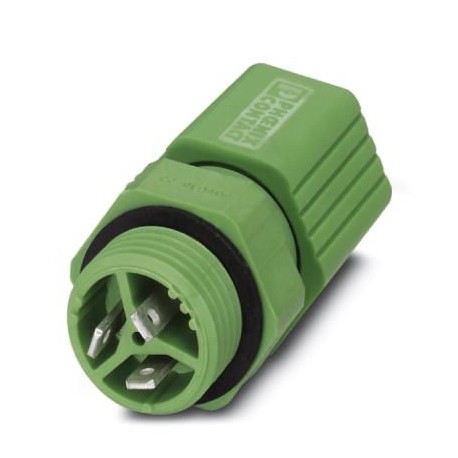

Q 0,75/3FL/9-9KU-ESA 1670727 PHOENIX CONTACT Panel feed-through
Q 0,75/3FL/9-9KU-ESA
1670727
PHOENIX_CONTACT
10
Panel feed-through
QUICKON feedthrough, for outdoor wall mounting with manual solder/flat plug connection, 2.8 mm x 0.8 mm, 3 poles.
Pluggable building installation systems > Device connection for plug-in building installation
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1670727 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 16 (PC-2002) |
| GTIN | 4017918156961 |
| Weight per Piece (excluding packing) | 16.270 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
General
| Connection | If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. |
|---|---|
| Color | green |
| Locking type | Screw locking |
| Connection method | QUICKON connection |
| Manual solder/slip on connection | |
| Number of positions | 3 |
| Wrench size, union nut | 19 mm |
| Tightening torque, union nut | 2.5 Nm |
| Wrench size, contact carrier | 19 mm |
| Tightening torque contact carrier | 3.75 Nm |
| Tightening torque, counter nut | 3.75 Nm |
| Number of connections | 3 |
| Conductor cross section flexible min. | 0.34 mm² |
| Conductor cross section flexible max. | 0.75 mm² |
| Conductor cross section solid min. | 0.34 mm² |
| Conductor cross section solid max. | 0.75 mm² |
| Conductor cross section AWG min. | 22 |
| Conductor cross section AWG max. | 18 |
Cabel
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | Class 2-6 // 0.34 mm²: 0.1 mm; 0.5 - 0.75 mm²: 0.15 mm |
|---|---|
| Wire insulation material | PVC / PE |
| Wire diameter including insulation | 2.5 mm |
| Position marking | 1, 2, 3 |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 80 °C (Specifications of the cable manufacturer must be observed.) |
| -25 °C ... 50 °C (when the conductor is connected. Specifications of the cable manufacturer must also be observed.) | |
| Temperature when conductor connected | -5 °C ... 50 °C |
Electrical characteristics
| Nominal current IN | 9 A |
|---|---|
| Rated voltage (III/3) | 160 V |
| Note on the rated voltage (III/3) | with insulating sleeve |
| Rated voltage (III/2) | 160 V |
| Note on the rated voltage (III/2) | with insulating sleeve |
| Rated voltage (II/2) | 320 V |
| Note on the rated voltage (II/2) | with insulating sleeve |
| Rated surge voltage (III/3) | 4 kV |
Mechanical characteristics
| QUICKON connectability | 10 (if the conductor is connected more than once, seal and cap may need to be replaced.) |
|---|---|
| PC QUICKON thread type | Pg9 |
| Impact category | 3 |
Material data
| Contact material | Cu alloy |
|---|---|
| Contact surface material | Pre-nickel plated and tin-plated |
| Contact carrier material | PA |
| Flammability rating according to UL 94 | V0 |
| Overvoltage category | III |
| Degree of pollution | 3 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140815eCl@ss 4.127140815eCl@ss 5.027143423eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027440602eCl@ss 8.027440602eCl@ss 9.027440602
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF000228) | 160 V |
| Rated current (EF000227) | 9 A |
| Number of poles (EF001391) | 3 |
| Degree of protection (IP) (EF005474) | IP65 |
| Number of connections per pole (EF006769) | 1 |
| Pole codification (EF006771) | 1, 2, 3 |
| Mechanical coding (EF002910) | No |
| Colour coding/contact insert (EF006772) | Green |
| Colour of the separate adapter piece (EF008312) | Other |
| Housing colour (EF000136) | Green |
| Housing material (EF001596) | Polyamide (PA) |
| Halogen free (EF000025) | No |
| Length (EF001438) | 41.24 mm |
| Height (EF000040) | 20.67 mm |
| Width (EF000008) | 20.67 mm |
