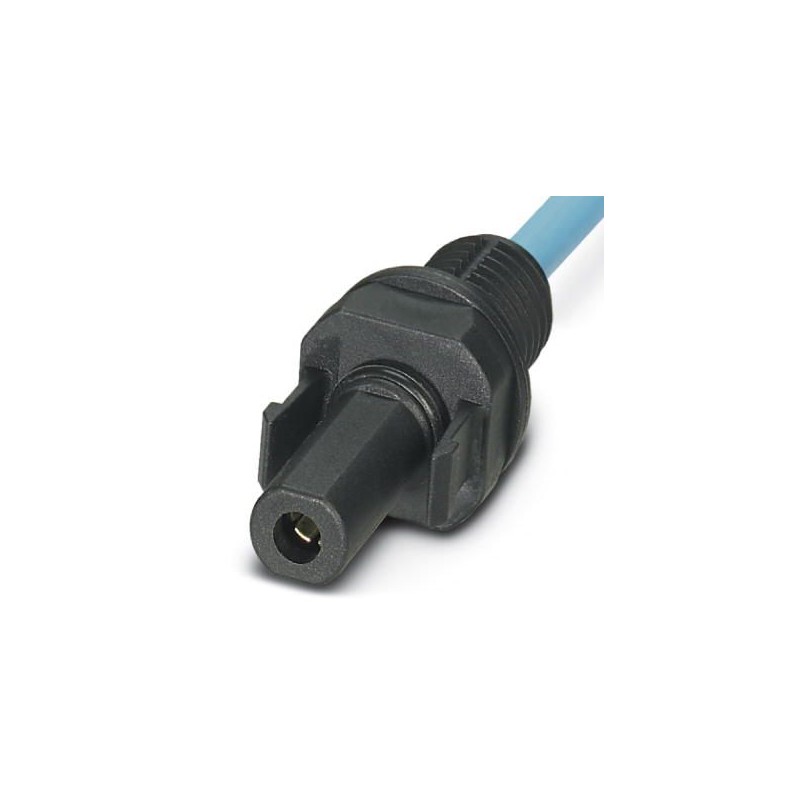

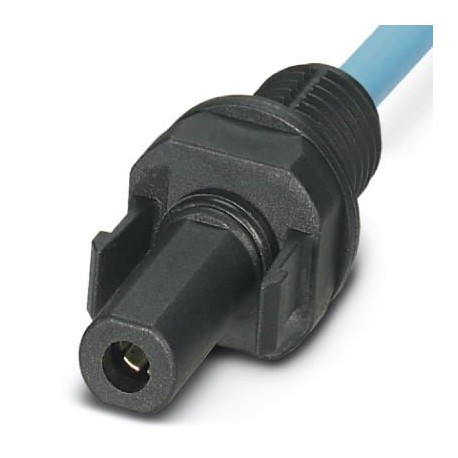

PV-FT-CF-C-6-350-BK 1806024 PHOENIX CONTACT Photovoltaic connector
PV-FT-CF-C-6-350-BK
1806024
PHOENIX_CONTACT
50
Photovoltaic connector
Conect. plug. to be apar. front wall, Item family: Sunclix, housing material: PPE, color: black, number of poles: 1, min. conductor cross-section: 6 mm², Connection type: Crimping, Contact connection type: Female, cable length: 350
Connectors > Circular connector for field assembly (industrial connector)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1806024 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| GTIN | 4046356688932 |
| Weight per Piece (excluding packing) | 31.320 g |
| Custom tariff number | 85359000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection (when plugged in) | IP66 / IP68 (2 m / 24 h) |
|---|---|
| Degree of protection (not plugged in) | IP65 |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -25 °C ... 50 °C |
General
| Design | Socket |
|---|---|
| Tightening torque nut | 1.8 Nm ±0.1 Nm |
| Insertion force | 45 N ±10 N |
| Disconnect force | 250 N ±50 N |
| Pull-out force of cable >= disconnect force | > 80 N |
| Rated voltage | 1500 V |
| Rated current (2.5 mm²) | |
| Rated current (4.0 mm²) | |
| Rated current (6.0 mm²) | 40 A |
| Nominal cross section | 6 mm² |
| Protection class | II |
Material
| Color | black |
|---|---|
| Insulating material | mPPE |
| Contact material | Cu |
| Contact surface material | Ag |
| Flammability rating according to UL 94 | V0 |
Connection data
| Connection method | Crimp |
|---|---|
| Connection capacity | 6 mm² |
| Contact resistance with connected conductor | 0.45 mΩ |
| Cable type | S03 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440102eCl@ss 8.027440102eCl@ss 9.027440103
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Bus |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 1 |
| Number of control contacts (EF012217) | 0 |
| Ambient temperature (EF002386) | 85 °C |
| Rated voltage (EF000228) | 1000 V |
| Material of contact surface (EF004020) | Tin |
| Housing material (EF001596) | Plastic |
| Coating housing (EF001601) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP20 |
| Min. number of insertion cycles (EF012212) | 100 |
