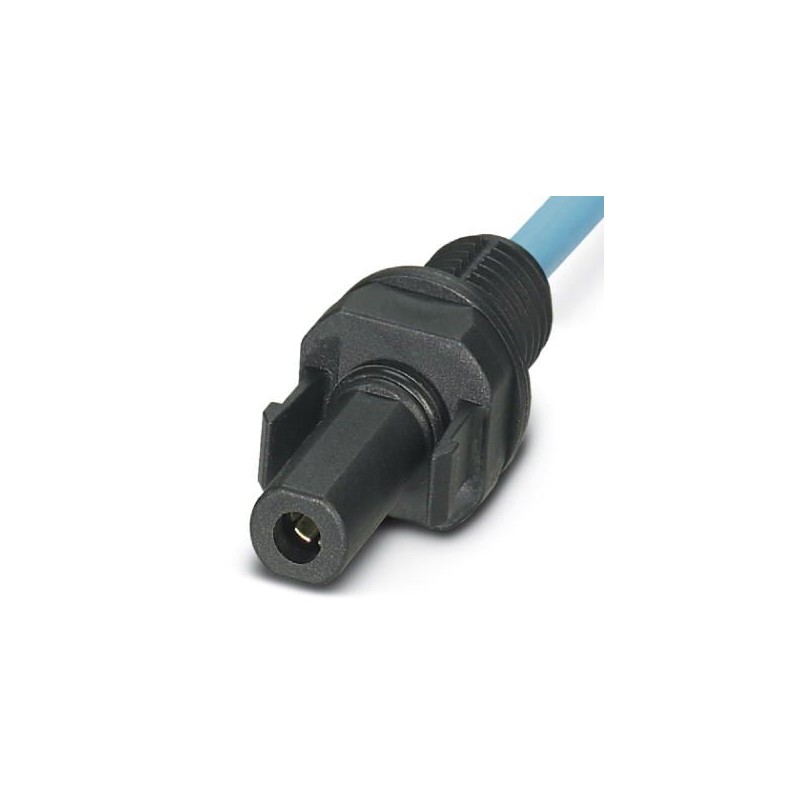

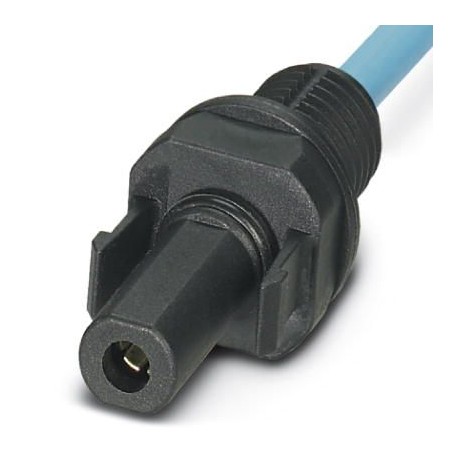

PV-FT-CF-C-6-300-BU 1623391 PHOENIX CONTACT Photovoltaic connector
PV-FT-CF-C-6-300-BU
1623391
PHOENIX_CONTACT
50
Photovoltaic connector
Connectors > Circular connector for field assembly (industrial connector)
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1623391 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626139647 |
| Weight per Piece (excluding packing) | 26.040 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection (when plugged in) | IP66 / IP68 (2 m / 24 h) |
|---|---|
| Degree of protection (not plugged in) | IP65 |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -25 °C ... 50 °C |
General
| Design | Socket |
|---|---|
| Tightening torque nut | 1.8 Nm ±0.1 Nm |
| Insertion force | 45 N ±10 N |
| Disconnect force | 250 N ±50 N |
| Pull-out force of cable >= disconnect force | > 80 N |
| Rated voltage | 1500 V |
| Rated current (2.5 mm²) | |
| Rated current (4.0 mm²) | |
| Rated current (6.0 mm²) | 40 A |
| Nominal cross section | 6 mm² |
| Protection class | II |
Material
| Color | black |
|---|---|
| Insulating material | mPPE |
| Contact material | Cu |
| Contact surface material | Ag |
| Flammability rating according to UL 94 | V0 |
Connection data
| Connection method | Crimp |
|---|---|
| Connection capacity | 6 mm² |
| Contact resistance with connected conductor | 0.45 mΩ |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
