PV-FT-CF-C-2,5-120-BU
1705394
PHOENIX_CONTACT
50

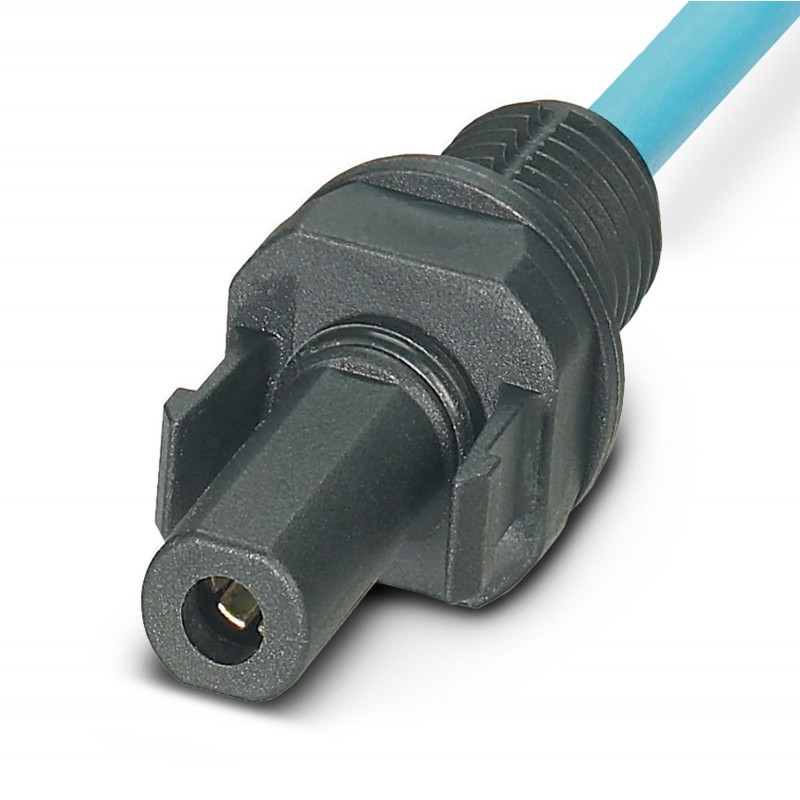

Photovoltaic connector
Sensors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1705394 |
---|---|
Packing unit | 50 pc |
Minimum order quantity | 50 pc |
Note | Made to Order (non-returnable) |
GTIN | 4046356768924 |
Weight per Piece (excluding packing) | 9.630 g |
Custom tariff number | 85359000 |
Country of origin | DE (Germany) |
Degree of protection (when plugged in) | IP66 / IP68 (2 m / 24 h) |
---|---|
Degree of protection (not plugged in) | IP65 |
Ambient temperature (operation) | -40 °C ... 85 °C |
Ambient temperature (assembly) | -25 °C ... 50 °C |
Design | Socket |
---|---|
Tightening torque nut | 1.8 Nm ±0.1 Nm |
Insertion force | 45 N ±10 N |
Disconnect force | 250 N ±50 N |
Pull-out force of cable >= disconnect force | > 80 N |
Rated voltage | 1500 V |
Rated current (2.5 mm²) | 27 A |
Rated current (4.0 mm²) | |
Rated current (6.0 mm²) | |
Nominal cross section | 2.5 mm² |
Protection class | II |
Color | black |
---|---|
Insulating material | mPPE |
Contact material | Cu |
Contact surface material | Ag |
Flammability rating according to UL 94 | V0 |
Connection method | Crimp |
---|---|
Connection capacity | 2.5 mm² |
Contact resistance with connected conductor | 0.45 mΩ |
Cable type | S01 |
China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
---|---|
No hazardous substances above threshold values |
