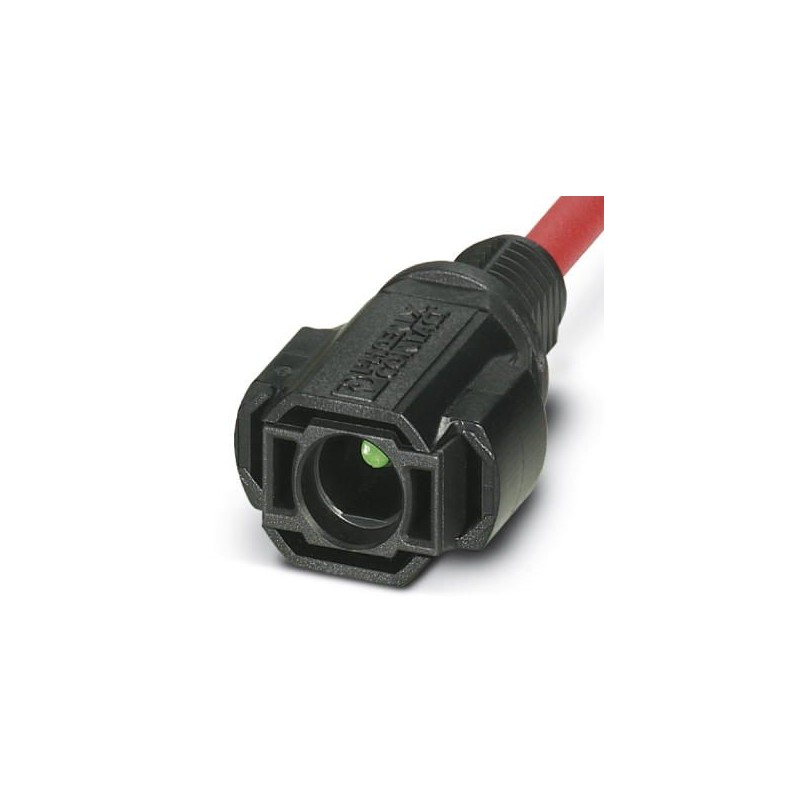

PV-FT-C2M-C-2,5-85-RD-FLC 1463063 PHOENIX CONTACT Photovoltaic connector
PV-FT-C2M-C-2,5-85-RD-FLC
1463063
PHOENIX_CONTACT
Photovoltaic connector
Sensors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1463063 |
|---|---|
| Packing unit | 200 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356757409 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85359000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection (when plugged in) | IP66 / IP68 (2 m / 24 h) |
|---|---|
| Degree of protection (not plugged in) | IP65 |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -25 °C ... 50 °C |
General
| Design | Pin |
|---|---|
| Tightening torque nut | 1.8 Nm ±0.1 Nm |
| Insertion force | 45 N ±10 N |
| Disconnect force | 250 N ±50 N |
| Pull-out force of cable >= disconnect force | > 80 N |
| Rated voltage | 1500 V |
| Rated current (2.5 mm²) | 27 A |
| Rated current (4.0 mm²) | |
| Rated current (6.0 mm²) | |
| Nominal cross section | 2.5 mm² |
| Protection class | II |
Material
| Color | black |
|---|---|
| Insulating material | mPPE |
| Contact material | Cu |
| Contact surface material | Ag |
| Flammability rating according to UL 94 | V0 |
Connection data
| Connection method | Crimp |
|---|---|
| Connection capacity | 2.5 mm² |
| Contact resistance with connected conductor | 0.45 mΩ |
| Cable type | S01 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440102eCl@ss 8.027440102eCl@ss 9.027440103
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
