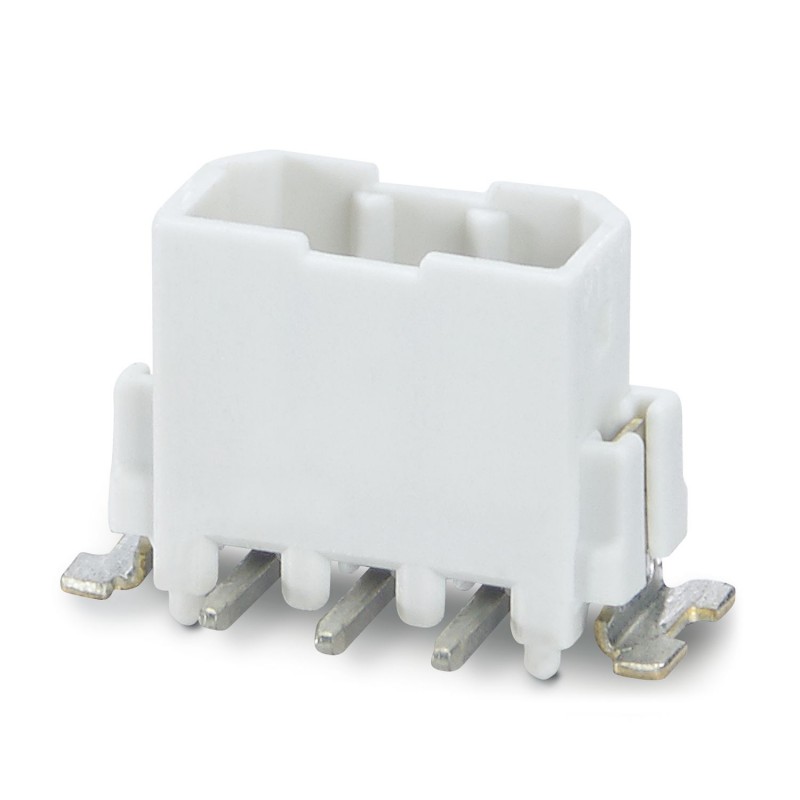

PTSM 0,5/ 6-HV0-2,5-SMD WH R44 1839237 PHOENIX CONTACT PCB headers, nominal current: 6 A, rated voltage (III.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PTSM 0,5/ 6-HV0-2,5-SMD WH R44 1839237 PHOENIX CONTACT PCB headers, nominal current: 6 A, rated voltage (III..

PTSM 0,5/ 6-HV0-2,5-SMD WH R44

1839237

PHOENIX_CONTACT

400

PCB headers, nominal current: 6 A, rated voltage (III/2): 160 V, number of positions: 6, pitch: 2.5 mm, color: white, contact surface: Tin, mounting: SMD soldering

PCB headers, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm², number of positions: 6, pitch: 2.5 mm, color: white, contact surface: Tin, mounting: SMD soldering, pin layout: Linear pad geometry

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Key Commercial Data

Orderkey1839237
Packing unit1 pc
Minimum order quantity400 pc
GTIN4055626044156
Weight per Piece (excluding packing)0.000 g
Custom tariff number85366930
Country of originDE (Germany)

Drawings

Drilling diagram

Drilling diagram

Diagram

Diagram
Type: PTSM 0,5/...-P-2,5 WH... with PTSM 0,5/...-HV-2,5-SMD WH R...

Dimensional drawing

Dimensional drawing

Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

UNSPSC

UNSPSC 13.239121409
UNSPSC 18.039121409
UNSPSC 19.039121409
UNSPSC 20.039121409
UNSPSC 21.039121409
Back to top

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
