View larger

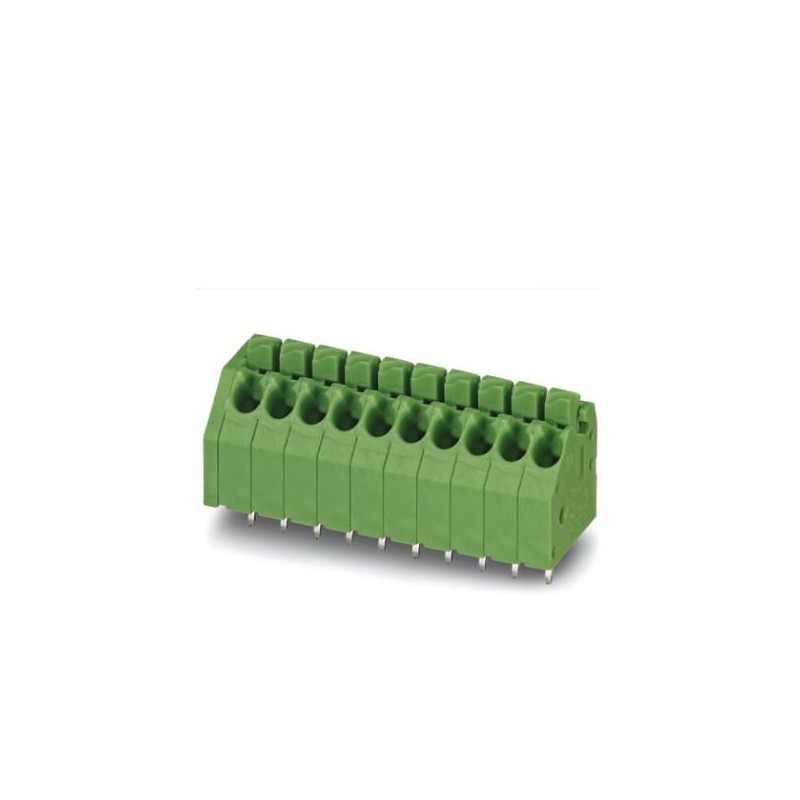

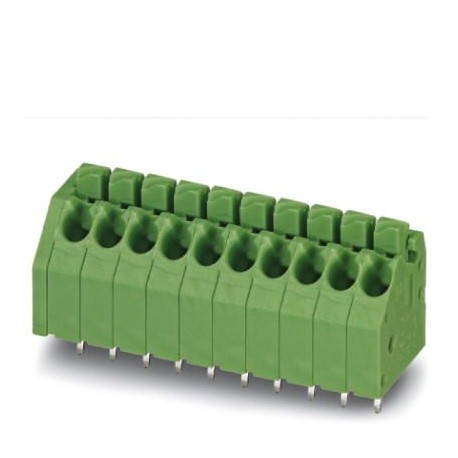

PTSA 1,5/ 2-3,5-F RD WH NZ02 1713017 PHOENIX CONTACT PCB terminal block
PTSA 1,5/ 2-3,5-F RD WH NZ02
1713017
PHOENIX_CONTACT
420
PCB terminal block
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1713017 |
|---|---|
| Packing unit | 420 pc |
| Minimum order quantity | 420 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356088879 |
| Weight per Piece (excluding packing) | 1.130 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Pitch | 3.5 mm |
| Dimension a | 3.5 mm |
| Width [ w ] | 8.5 mm |
| Height | 13.1 mm |
| Height [ h ] | 16.7 mm |
| Solder pin [P] | 3.6 mm |
| Pin spacing | 3.5 mm |
| Hole diameter | 1 mm |
General
| Range of articles | PTSA 1,5 |
|---|---|
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | 200 V |
| Rated voltage (III/2) | 250 V |
| Rated voltage (II/2) | 400 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 8 A |
| Nominal cross section | 1.5 mm² |
| Solder pin surface | |
| Stripping length | 9 mm |
| Number of positions | 2 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127141109eCl@ss 5.027141190eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
