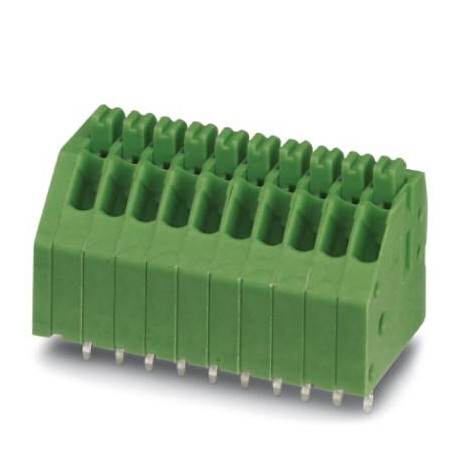

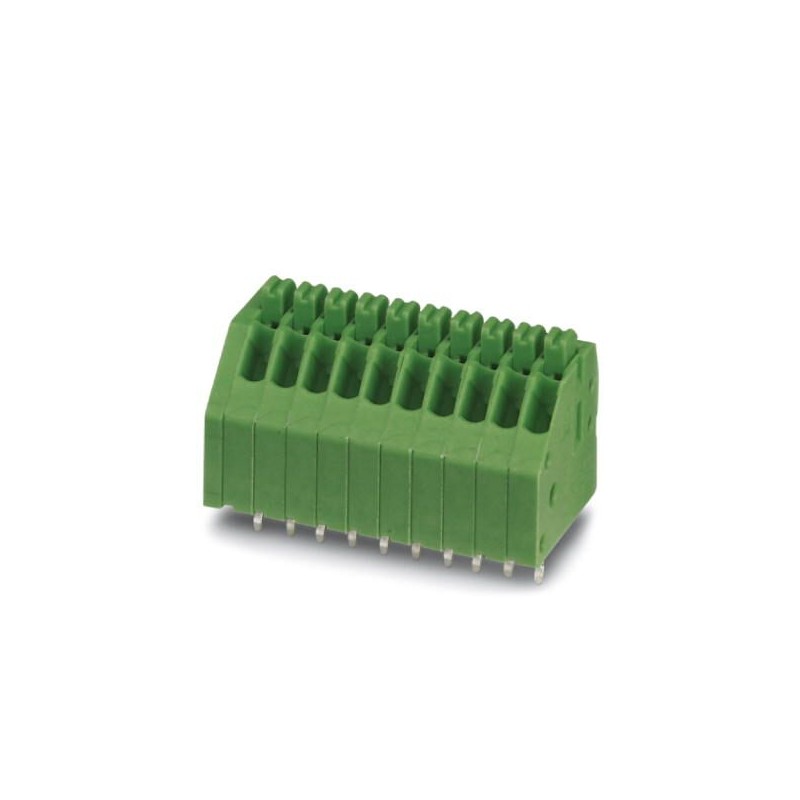

PTSA 0,5/ 9-2,5-F MC:RD,BK,-BU 1833709 PHOENIX CONTACT PCB terminal block, nominal current: 2 A, nom. voltag.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PTSA 0,5/ 9-2,5-F MC:RD,BK,-BU 1833709 PHOENIX CONTACT PCB terminal block, nominal current: 2 A, nom. voltag..

PTSA 0,5/ 9-2,5-F MC:RD,BK,-BU

1833709

PHOENIX_CONTACT

50

PCB terminal block, nominal current: 2 A, nom. voltage: 250 V, pitch: 2.5 mm, number of positions: 9, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: multi-color. Soldering legs in front area, one-rowed

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $132.10
Unit price: $2.64

Quantity Price
50+$2.64
100+$2.28
150+$2.11
200+$2.03
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


PCB terminal block, nominal current: 2 A, nom. voltage: 250 V, pitch: 2.5 mm, number of positions: 9, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: multi-color. Soldering legs in front area, one-rowed

Key Commercial Data

Orderkey1833709
Packing unit1
GTIN4046356927451
Custom tariff number85369010

Dimensions

Length [ l ]12 mm
Pitch2.5 mm
Dimension a20 mm
Width [ w ]24 mm
Height13.1 mm
Height [ h ]16.7 mm
Solder pin [P]3.6 mm
Pin spacing2.5 mm
Hole diameter1 mm

General

Range of articlesPTSA 0,5
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)63 V
Rated voltage (III/2)250 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN2 A
Nominal cross section0.5 mm²
Solder pin surface
Stripping length9 mm
Number of positions9

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.20

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401

ETIM

ETIM 4.0EC002643
ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643

UNSPSC

UNSPSC 13.239121432

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
