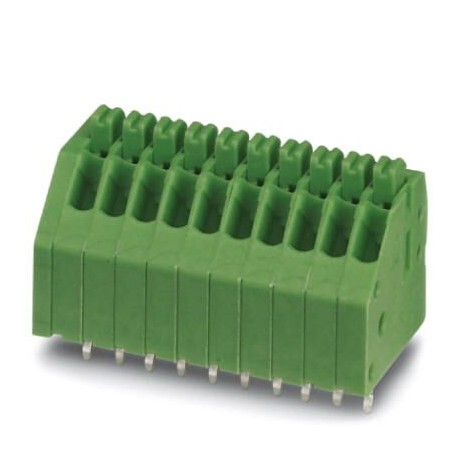

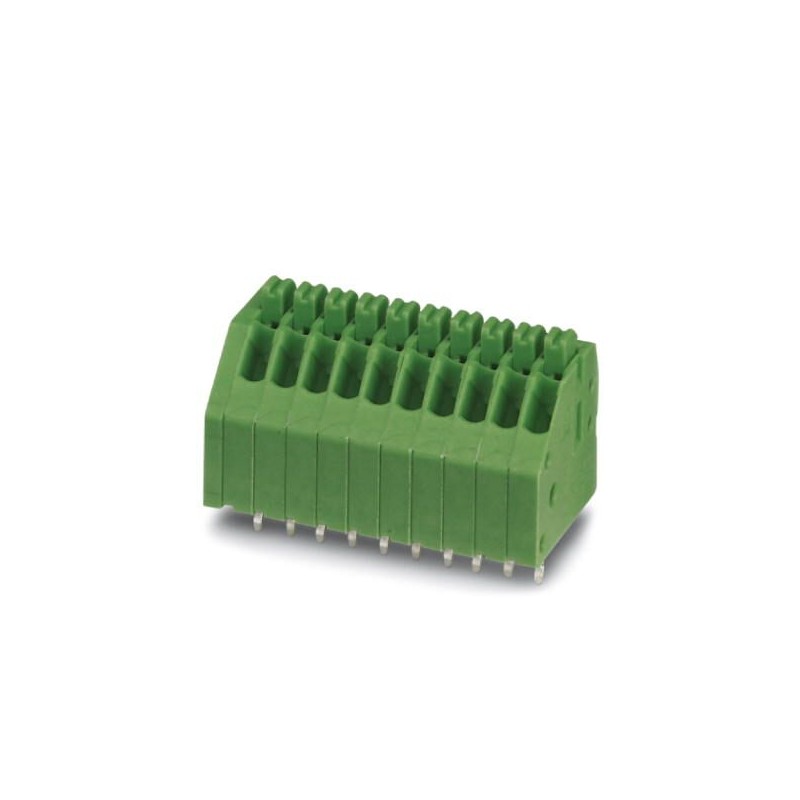

PTSA 0,5/ 8-2,5-F MCOG-BU 1716756 PHOENIX CONTACT PCB terminal block, nominal current: 2 A, rated voltage (I..
PTSA 0,5/ 8-2,5-F MCOG-BU
1716756
PHOENIX_CONTACT
50
PCB terminal block, nominal current: 2 A, rated voltage (III/2): 250 V, nominal cross section: 0.5 mm², pitch: 2.5 mm, number of positions: 8, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: multi-color, Pin layout: Linear pinning, Solder pin [P]: 3.6 mm
Terminal block for printed circuit board, rated current: 2 A, dimensioning voltage (III/2): 250 V, nominal cross-section: 0.5 mm², Number of potentials: 8, Number of rows: 1, Number of poles per row: 8, article family: PTSA 0.5, pitch: 2.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45°, color: multicolor, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.6 mm, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲
Item properties
| Brief article description | PCB terminal block |
|---|---|
| Range of articles | PTSA 0,5 |
| Pitch | 2.5 mm |
| Number of positions | 8 |
| Connection method | Push-in spring connection |
| Mounting type | Wave soldering |
| Pin layout | Linear pinning |
| Number of levels | 1 |
| Number of connections | 8 |
| Number of potentials | 8 |
Connection capacity
| Connection method | Push-in spring connection |
|---|---|
| pluggable | no |
| Conductor cross section solid | 0.14 mm² ... 0.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 0.5 mm² |
| Conductor cross section AWG / kcmil | 24 ... 20 |
| Stripping length | 9 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | hot-dip tin-plated |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface soldering area (top layer) | Tin (4 - 8 µm Sn) |
Material data - housing
| Insulating material | PA |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions for the product
| Dimensional drawing |  |
|---|---|
| Caption | The figure shows the 5-pos. version |
| Length [ l ] | 12 mm |
| Width [ w ] | 21.5 mm |
| Height [ h ] | 16.7 mm |
| Pitch | 2.5 mm |
| Height (without solder pin) | 13.1 mm |
| Solder pin [P] | 3.6 mm |
| Pin spacing | 2.5 mm |
| Pin dimensions | 0.4 x 0.75 mm |
| Dimension a | 17.5 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 55 °C |
| Ambient temperature (operation) | -40 °C ... 85 °C |
Termination and connection method
| Connection test | IEC 60998-2-2:1991-10 |
|---|---|
| Test result | Test passed |
| Test for conductor damage and slackening | IEC 60998-2-2:1991-10 |
| Test passed |
Pull-out test
| Pull-out test | IEC 60998-2-2:1991-10 |
|---|---|
| Test passed | |
| Conductor cross section / conductor type / tensile force | 0.14 mm² / solid / > 7 N |
| 0.2 mm² / flexible / > 10 N | |
| 0.5 mm² / solid / > 30 N | |
| 0.5 mm² / flexible / > 30 N |
Electrical tests
| Rated current | 2 A |
|---|---|
| Conductor cross section | 0.5 mm² |
| Rated voltage (III/2) | 250 V |
| Rated surge voltage (III/2) | 2.5 kV |
Air clearances and creepage distances
| Clearances and creepage distances | IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09 |
|---|---|
| Specification | IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09 |
| Rated insulation voltage (III/3) | 63 V |
| Rated insulation voltage (III/2) | 250 V |
| Rated insulation voltage (II/2) | 320 V |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Minimum clearance - inhomogeneous field (III/3) | 1.5 mm |
| Minimum clearance - inhomogeneous field (III/2) | 1.5 mm |
| Minimum clearance - inhomogeneous field (II/2) | 1.5 mm |
| Minimum creepage distance value (III/3) | 1.6 mm |
| Minimum creepage distance value (III/2) | 1.5 mm |
| Minimum creepage distance value (II/2) | 1.6 mm |
Vibration test
| Specification | IEC 60068-2-6:1995-03 |
|---|---|
| Result | Test passed |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 - 60.1 Hz) |
| Acceleration | 5 g (60.1 - 150 Hz) |
| Test duration per axis | 2.5 h |
Resistance to ageing, humidity and penetration of solids
| Dry heat | 168 h/100°C |
|---|---|
| Humid heat | 48 h/30 °C/92 % |
Classifications
eCl@ss
| eCl@ss 5.1 | 27261100 |
|---|---|
| eCl@ss 6.0 | 27261100 |
| eCl@ss 7.0 | 27440401 |
| eCl@ss 8.0 | 27440401 |
| eCl@ss 9.0 | 27440401 |
