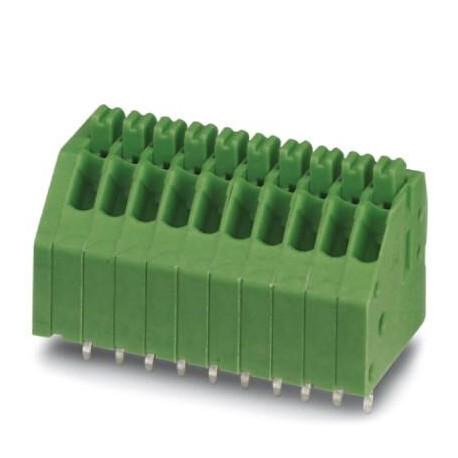

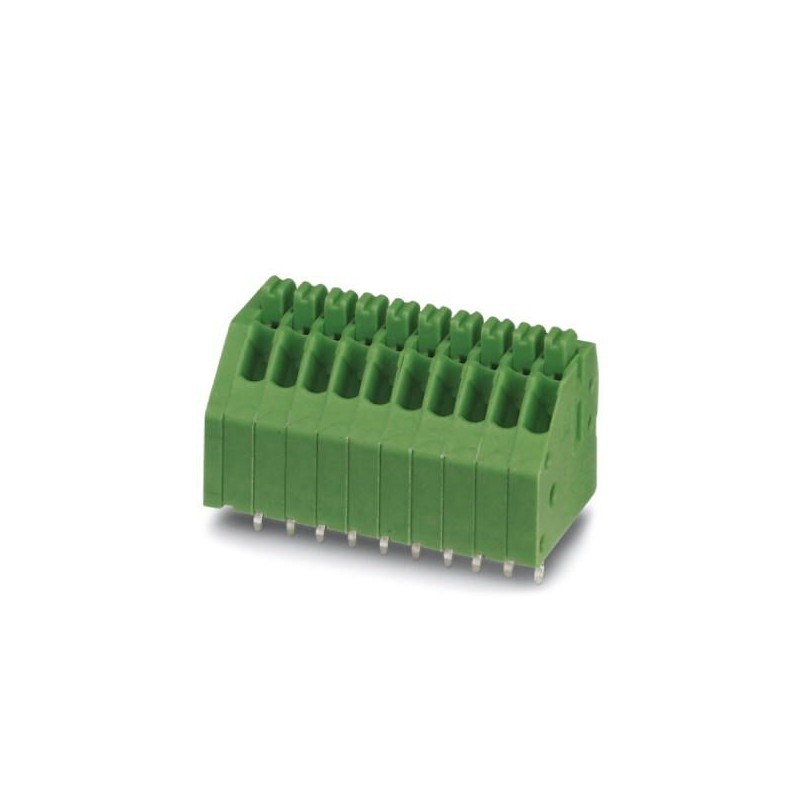

PTSA 0,5/ 7-2,5 MIXC GY/YE 1816344 PHOENIX CONTACT PCB terminal block, nominal current: 2 A, nom. voltage: 2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PTSA 0,5/ 7-2,5 MIXC GY/YE 1816344 PHOENIX CONTACT PCB terminal block, nominal current: 2 A, nom. voltage: 2..

PTSA 0,5/ 7-2,5 MIXC GY/YE

1816344

PHOENIX_CONTACT

250

PCB terminal block, nominal current: 2 A, nom. voltage: 250 V, pitch: 2.5 mm, number of positions: 7, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: multi-color

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Key Commercial Data

Orderkey1816344
Packing unit1 pc
GTIN4046356751032
Weight per Piece (excluding packing)2.800 g
Custom tariff number85369010
Country of originPL (Poland)

Drawings

Diagram

Diagram
Derating diagram for 5 pins;reduction factor=1

Back to top

Item properties

Brief article descriptionPCB terminal block
Range of articlesPTSA 0,5
Pitch2.5 mm
Number of positions7
Connection methodPush-in spring connection
Mounting typeWave soldering
Pin layoutMixed single pinning
Number of levels1
Number of connections7
Number of potentials7
Back to top

Electrical parameters

Nominal current2 A
Nom. voltage250 V
Rated voltage63 V
Rated voltage (III/2)250 V
Rated voltage (II/2)320 V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Back to top

Connection capacity

Connection methodPush-in spring connection
pluggableno
Conductor cross section solid0.14 mm² ... 0.5 mm²
Conductor cross section flexible0.2 mm² ... 0.5 mm²
Conductor cross section AWG / kcmil24 ... 20
Stripping length9 mm
Back to top

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)
Back to top

Material data - housing

Housing colormulti-color
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Back to top

Dimensions for the product

Dimensional drawing
CaptionThe figure shows the 5-pos. version
Length [ l ]12 mm
Width [ w ]19 mm
Height [ h ]16.7 mm
Pitch2.5 mm
Height (without solder pin)13.1 mm
Solder pin [P]3.6 mm
Pin spacing2.5 mm
Pin dimensions0.4 x 0.75 mm
Dimension a15 mm
Back to top

Dimensions for PCB design

Hole diameter1 mm
Pin spacing2.5 mm
Back to top

Packaging information

Type of packagingpacked in cardboard
Pieces per package250
Denomination packing unitsPcs.
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 55 °C
Ambient temperature (operation)-40 °C ... 85 °C
Back to top

Termination and connection method

Connection testIEC 60998-2-2:1991-10
Test resultTest passed
Test for conductor damage and slackeningIEC 60998-2-2:1991-10
Test passed
Back to top

Pull-out test

Pull-out testIEC 60998-2-2:1991-10
Test passed
Conductor cross section / conductor type / tensile force0.14 mm² / solid / > 7 N
0.2 mm² / flexible / > 10 N
0.5 mm² / solid / > 30 N
0.5 mm² / flexible / > 30 N
Back to top

Electrical tests

Rated current2 A
Conductor cross section0.5 mm²
Rated voltage (III/2)250 V
Rated surge voltage (III/2)2.5 kV
Back to top

Air clearances and creepage distances

Clearances and creepage distancesIEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09
SpecificationIEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09
Minimum clearance - inhomogeneous field (III/3)1.5 mm
Minimum clearance - inhomogeneous field (III/2)1.5 mm
Minimum clearance - inhomogeneous field (II/2)1.5 mm
Minimum creepage distance value (III/3)1.6 mm
Minimum creepage distance value (III/2)1.5 mm
Minimum creepage distance value (II/2)1.6 mm
Back to top

Temperature-rise test

ResultTest passed
SpecificationIEC 60998-2-1:1990-04
Back to top

Vibration test

SpecificationIEC 60068-2-6:1995-03
ResultTest passed
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 - 60.1 Hz)
Acceleration5 g (60.1 - 150 Hz)
Test duration per axis2.5 h
Back to top

Resistance to ageing, humidity and penetration of solids

Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %
Back to top

Standards and Regulations

Connection in acc. with standardEN-VDE
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027141109
eCl@ss 4.127141109
eCl@ss 5.027141190
eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401
Back to top

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002643
ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643
Back to top

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1139121432
UNSPSC 12.0139121432
UNSPSC 13.239121432
UNSPSC 19.039121432
Back to top

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
