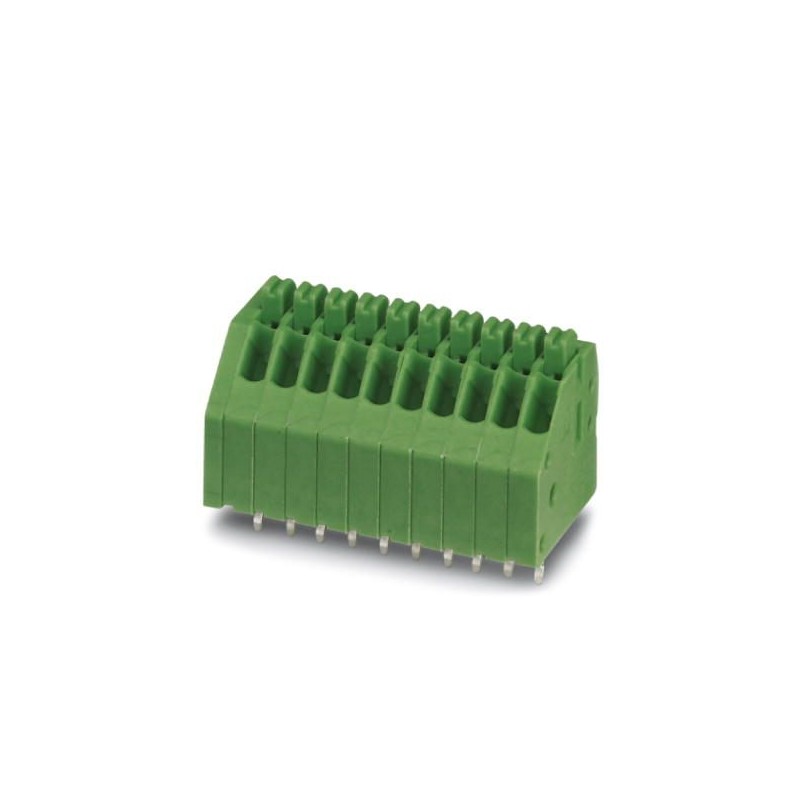

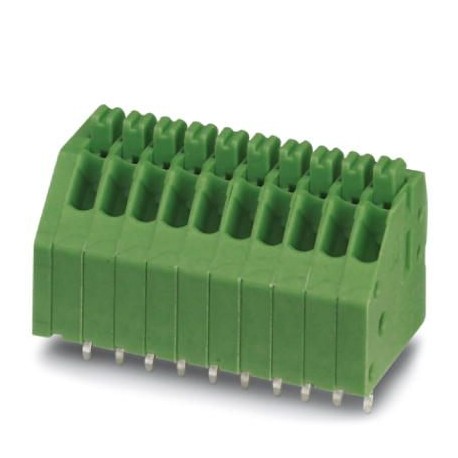

PTSA 0,5/23-2,5-F 1989955 PHOENIX CONTACT PCB terminal block
PTSA 0,5/23-2,5-F
1989955
PHOENIX_CONTACT
50
PCB terminal block
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1989955 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 305 (CC-2005) |
| GTIN | 4017918973551 |
| Weight per Piece (excluding packing) | 10.500 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Pitch | 2.5 mm |
| Dimension a | 55 mm |
| Width [ w ] | 59 mm |
| Height | 13.1 mm |
| Height [ h ] | 16.7 mm |
| Solder pin [P] | 3.6 mm |
| Pin spacing | 2.5 mm |
| Hole diameter | 1 mm |
General
| Range of articles | PTSA 0,5 |
|---|---|
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | 63 V |
| Rated voltage (III/2) | 250 V |
| Rated voltage (II/2) | 320 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 2 A |
| Nominal cross section | 0.5 mm² |
| Maximum load current | 2 A |
| Insulating material | PA |
| Solder pin surface | |
| Stripping length | 9 mm |
| Number of positions | 23 |
Connection data
| Conductor cross section solid min. | 0.14 mm² |
|---|---|
| Conductor cross section solid max. | 0.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 0.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 20 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027141190eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
