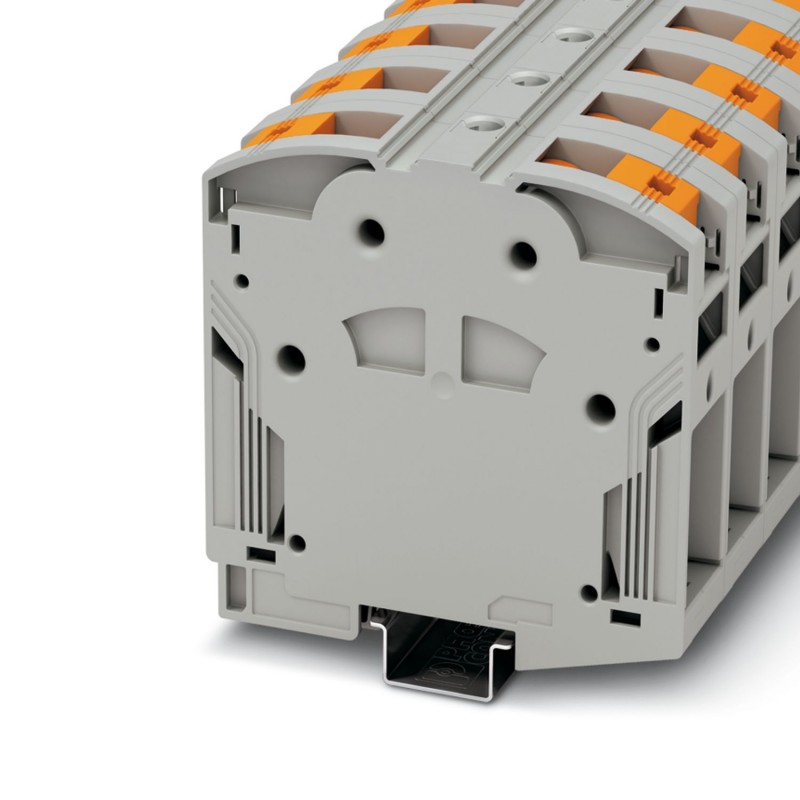

PTPOWER 185 P 1054725 PHOENIX CONTACT Terminal outlet, with female connector for testing, voltage rating: 15..
PTPOWER 185 P
1054725
PHOENIX_CONTACT
3
Terminal outlet, with female connector for testing, voltage rating: 1500 VA DC / 1000 V AC, rated current: 309 A, type of Connection: Connection to Power Turn, number of connections: 2, number of poles: 1, section: 95 mm2-185 mm2, AWG: 3/0-350 kcmil, width: 31 mm, color: grey, type of mounting: NS 35/15
Power terminal block, with test socket, nominal voltage: 1000 V, nominal current: 309 A, number of connections: 2, number of poles: 1, connection type: PowerTurn connection, 1st floor, cross-section: 95 mm² - 185 mm², mounting class: NS 35/15, colour: grey
Terminal blocks > Feed-through terminal block
Modular TBs
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product Type | Power terminal |
| Number of poles | 1 |
| Number of connections | 2 |
| Number of rows | 1 |
| Potential | 1 |
| Data Maintenance Status | |
| Article Review | 06 |
| Insulation Properties | |
| Surge Category | Iii |
| Degree of pollution | 3 |
| Dimensioning Transient Voltage | 8 kV |
| Maximum Dissipated Power with Nominal Condition | 9.55 W |
| Number of connections per floor | 2 |
| Nominal Section | 150 mm² |
| 1st floor | |
| Length to be de-insulated | 40 mm |
| Male Gauge | B14 |
| Standard-compliant connection | IEC 60947-7-1 |
| Rigid conductor section | 95 mm² ... 185 mm² |
| AWG Conductor Section | 250 kcmil ... 350 kcmil (Converted according to IEC) |
| Flexible conductor section | 95 mm² ... 185 mm² |
| Flexible Wire Section [AWG] | 250 kcmil ... 350 kcmil (Converted according to IEC) |
| Flexible cable section (toe cap without plastic sleeve) | 95 mm² ... 150 mm² |
| Flexible cable section (toe cap with plastic sleeve) | 95 mm² ... 150 mm² |
| Section with rigid bridging comb | 95 mm² ... 150 mm² |
| Section with flexible bridging comb | 95 mm² ... 150 mm² |
| Section with flexible bridging comb with tip and without plastic sleeve | 95 mm² ... 120 mm² |
| Section with flexible bridging comb with tip and plastic cuff | 95 mm² ... 120 mm² |
| Nominal current | 309 A |
| Maximum Charging Current | 309 A (with a conductor cross-section of 150 mm²) |
| Nominal voltage | 1000 V |
| 1st floor Plug-in connection section | |
| Rigid conductor section | 95 mm² ... 185 mm² |
| Flexible cable section (toe cap without plastic sleeve) | 95 mm² ... 150 mm² |
| Flexible cable section (toe cap with plastic sleeve) | 95 mm² ... 150 mm² |
| Width | 31 mm |
| Height | 116.4 mm |
| Depth at NS 35/15 | 116.5 mm |
| Colour | grey (RAL 7042) |
| Flammability class according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Mechanical data | |
| Open sidewall | No |
| Environmental conditions | |
| Ambient Temperature (Service) | -60 °C ... 110 °C (Operating temperature range incl. self-heating, max. short-term operating temperature; see RTI Elec.) |
| Ambient Temperature (Storage/Transport) | -25°C ... 60 °C (For a short time, no more than 24 hours, from -60 °C to +70 °C) |
| Ambient Temperature (Mounting) | -5 °C ... 70 °C |
| Ambient Temperature (Drive) | -5 °C ... 70 °C |
| Permissible air humidity (service) | 20 % ... 90 % |
| Permissible air humidity (storage/transport) | 30 % ... 70 % |
| Standard-compliant connection | IEC 60947-7-1 |
| Type of mounting | NS 35/15 |
| Feature Name | Feature Value |
|---|---|
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 95 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 95 mm² |
| Connectable conductor cross section solid-core (EF007337) | 95 mm² |
| Rated current In (EF008250) | 309 A |
| Rated voltage (EF000228) | 1000 V |
| Type of electrical connection 1 (EF002526) | Other |
| Type of electrical connection 2 (EF002527) | Other |
| Number of clamp positions per level (EF002660) | 2 |
| Suitable for conductor material (EF012572) | Aluminium/copper |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Material insulation body (EF007543) | Other |
| Operating temperature (EF002393) | -60 °C |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Width (EF000008) | 31 mm |
| Height (EF000040) | 116.4 mm |
| Depth (EF000049) | 116.5 mm |
| Closing plate required (EF002525) | No |
| Colour (EF000007) | Grey |
| Internally connected stages (EF002661) | Yes |
