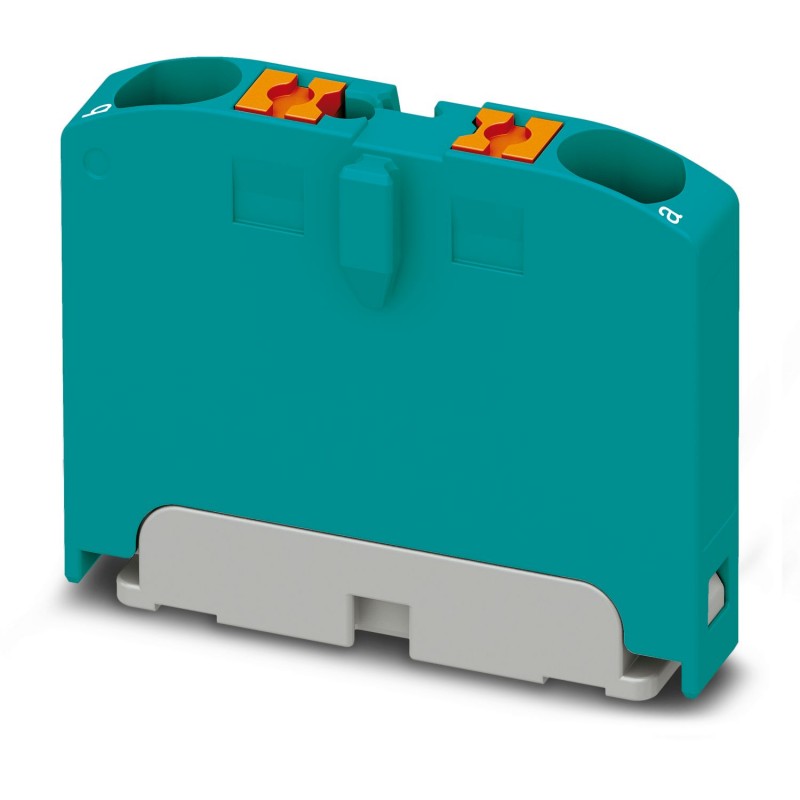

PTFIX 2X2,5 TQ 1082539 PHOENIX CONTACT Block for distribution, Terminal base, nominal voltage: 500 V, nomina..
PTFIX 2X2,5 TQ
1082539
PHOENIX_CONTACT
50
Block for distribution, Terminal base, nominal voltage: 500 V, nominal current: 24 A, type of connection: Connection push-in connection, number of connections: 2, section:0.14 mm2 - 4 mm2, AWG: 26 - 12, width: 5,2 mm, height: 21.2 mm, color: turquoise, type of mounting: latch on adapter for rail
Distribution block, Base terminal, nominal voltage: 450 V, nominal current: 24 A, number of connections: 2, connection type: Push-in connection, cross-section: 0.14 mm² - 4 mm², mounting class: interlock in rail adapter, Direct mounting with a flange, Aerial, color: turquoise
Terminal blocks > Feed-through terminal block
FIX block System
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | |
| Observation | The maximum charging current of the various terminal points must not be exceeded. |
| Product Type | Distribution terminal |
| Number of connections | 2 |
| Number of rows | 1 |
| Potential | 1 |
| Data Maintenance Status | |
| Article Review | 02 |
| Insulation Properties | |
| Surge Category | Iii |
| Degree of pollution | 3 |
| Dimensioning Transient Voltage | 6 kV |
| Maximum Dissipated Power with Nominal Condition | 0.77 W |
| Number of connections per floor | 2 |
| Nominal Section | 2.5 mm² |
| AWG Sizing Section | 14 |
| Peel Length | 8 mm ... 10 mm |
| Male Gauge | A3 |
| Standard-compliant connection | IEC 60998-2-2 |
| Rigid conductor section | 0.14 mm² ... 4 mm² |
| AWG Conductor Section | 26 ... 12 (Converted according to IEC) |
| Flexible conductor section | 0.14 mm² ... 2.5 mm² |
| Flexible Wire Section [AWG] | 26 ... 14 (Converted according to IEC) |
| Flexible cable section (toe cap without plastic sleeve) | 0.14 mm² ... 2.5 mm² |
| Flexible cable section (toe cap with plastic sleeve) | 0.14 mm² ... 2.5 mm² |
| Nominal current | 24 A |
| Maximum Charging Current | 27 A |
| Nominal voltage | 450 V |
| Directly pluggable connection section | |
| Rigid conductor section | 0.34 mm² ... 4 mm² |
| Rigid Wire Section [AWG] | 24 ... 12 (Converted according to IEC) |
| Flexible cable section (toe cap without plastic sleeve) | 0.34 mm² ... 2.5 mm² |
| Flexible cable section (toe cap with plastic sleeve) | 0.34 mm² ... 2.5 mm² |
| Width | 5.2 mm |
| Height | 28.2 mm |
| Depth | 21.2 mm |
| Colour | pastel turquoise (RAL 6034) |
| Flammability class according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Static use of cold insulating material | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative Insulating Material Temperature Index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Heat Emission Calorimeter NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Flammability of NFPA 130 Surfaces (ASTM E 162) | approved |
| NFPA 130 Specific Optical Flue Gas Density (ASTM E 662) | approved |
| NFPA 130 Flue Gas Toxicity (SMP 800C) | approved |
| Impulse Voltage Test | |
| Test Voltage Nominal Value | 9.8 kV |
| Result | Approved Test |
| Heating Verification | |
| Heating test requirement | Temperature rise ≤ 45 K |
| Result | Approved Test |
| Short-term permissible current 2.5 mm² | 0.3 kA |
| Permissible short-term current 4 mm² | 0.48 kA |
| Result | Approved Test |
| Dielectric Strength with Operating Frequency | |
| Test Voltage Nominal Value | 1.89 kV |
| Result | Approved Test |
| Mechanical data | |
| Open sidewall | No |
| Mechanical resistance | |
| Result | Approved Test |
| Fixing on the bracket | |
| Rail/Fixing Surface | NS 35 |
| Nominal Value Test Force | 1 N |
| Result | Approved Test |
| Observation | In the case of connecting several blocks in a row, the elements must be positioned upright so that a maximum of 5 blocks are hung freely in the middle. The flange elements must be placed every 9 blocks. |
| Depending on the application and mechanical load, other arrangements for the mounting accessories can be chosen. | |
| A PTFIX-NS35 rail adapter is provided for a maximum of 11 blocks. | |
| Checking for damage to conductors and loosening | |
| Rotation speed | 10 r.p.m. |
| Rotations | 135 |
| Conductor Section/Weight | 0.14 mm2/0.2 kg |
| 2.5 mm2/0.7 kg | |
| 4 mm2/0.9 kg | |
| Result | Approved Test |
| Aging | |
| Temperature Cycles | 192 |
| Result | Approved Test |
| Needle Flame Test | |
| Performance Time | 30 sec |
| Result | Approved Test |
| Broadband Oscillation/Noise | |
| Test Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Spectrum | Category 2 durability test, on the bogie |
| frequency | f1= 5 Hz to f2= 250 Hz |
| ASD Level | 6.12 (m/s²)²/Hz |
| Acceleration | 3.12g |
| Test duration per axis | 5 h |
| Test Directions | X, Y, and Z axes |
| Result | Approved Test |
| Crash | |
| Test Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Shock Type | Semi-sinusoid |
| Acceleration | 30g |
| Duration of the crash | 18 ms |
| Number of collisions per steering | 3 |
| Test Directions | X, Y, and Z axes (pos. and neg.) |
| Result | Approved Test |
| Environmental conditions | |
| Ambient Temperature (Service) | -60 °C ... 110 °C (Operating temperature range incl. self-heating, max. short-term operating temperature; see RTI Elec.) |
| Ambient Temperature (Storage/Transport) | -25°C ... 60 °C (For a short time, no more than 24 hours, from -60 °C to +70 °C) |
| Ambient Temperature (Mounting) | -5 °C ... 70 °C |
| Ambient Temperature (Drive) | -5 °C ... 70 °C |
| Permissible air humidity (service) | 20 % ... 90 % |
| Permissible air humidity (storage/transport) | 30 % ... 70 % |
| Standard-compliant connection | IEC 60998-2-2 |
| Type of mounting | Interlock in rail adapter |
| Direct mounting with a flange | |
| Aerial |
| Feature Name | Feature Value |
|---|---|
| Rated current In (EF008250) | 24 A |
| Rated voltage (EF000228) | 450 V |
| Type of electrical connection 1 (EF002526) | Other |
| Type of electrical connection 2 (EF002527) | Other |
| Number of clamp positions per level (EF002660) | 2 |
| Material insulation body (EF007543) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Width (EF000008) | 5.2 mm |
| Height (EF000040) | 28.2 mm |
| Depth (EF000049) | 21.2 mm |
| Closing plate required (EF002525) | No |
| Internally connected stages (EF002661) | Yes |
