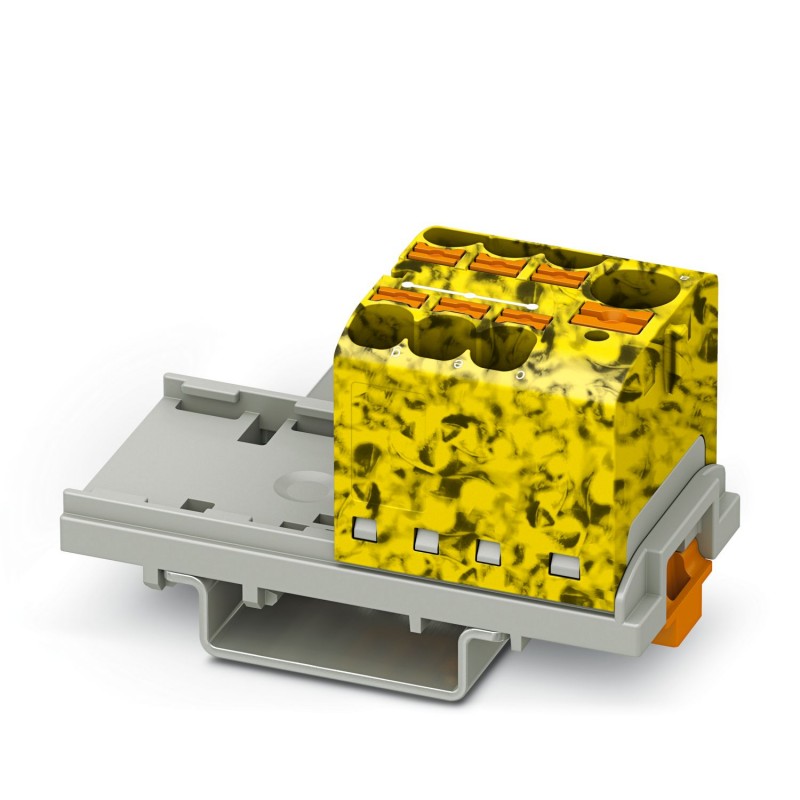

PTFIX 10/6X4-NS35-FE 3273612 PHOENIX CONTACT Block for distribution, rated voltage: 450 V, nominal current: ..
PTFIX 10/6X4-NS35-FE
3273612
PHOENIX_CONTACT
8
Block for distribution, rated voltage: 450 V, nominal current: 32 A, type of Connection: Connection push-in Connection push-in connection, number of connections: 7, section: 0,2 mm2-6 mm2, AWG: 24-10, width: 28.6 mm, color: black/yellow, type of mounting: NS 35/7,5, NS 35/15
Distribution block, rated voltage: 800 V, rated current: 57 A, number of connections: 7, connection type: Push-in connection, Collective connection, Sizing cross-section: 10 mm², cross-section: 0.5 mm² - 10 mm², Push-in connection, Shunt, Sizing cross-section: 4 mm², cross-section: 0.2 mm² - 6 mm², mounting class: NS 35/7.5, NS 35/15, color: black/yellow
Distributor block, rated voltage: 800 V, rated current: 41 A, number of connections: 7, connection type: Push-in connection, Socket, Dimensioning cross-section: 4 mm2, cross-section: 0.2 mm2 - 6 mm2, Push-in connection, Collective connection, Dimensioning section: 10 mm2, cross-section: 0.5 mm2 - 10 mm2, mounting type: NS 35/7.5, NS 35/15, colour: black/yellow
Terminal blocks > Feed-through terminal block
FIX block System
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General notes | |
| note | The maximum load current of the individual connection points must not be exceeded. |
| For power distribution applications, IEC 60364-4-43:2008, as amended + Corrigendum Ott. 2008 (DIN VDE 0100-430:2010-10) section 433.2 ff! | |
| Product Type | Distribution terminal |
| Number of connections | 7 |
| Number of rows | 1 |
| Potential | 1 |
| Data maintenance status | |
| Article review | 01 |
| Insulation characteristics | |
| Overvoltage Category | Iii |
| Degree of pollution | 3 |
| Sizing Impulse Voltage | 6 kV |
| Maximum power dissipation under nominal conditions | 1.02 W |
| Feeding | Yes |
| Number of connections per plan | 7 |
| Nominal cross-section | 4 mm² |
| AWG Sizing Section | 10 |
| Grip | |
| Length of the section to be stripped | 10 mm ... 12 mm |
| Gauge Pad | A4 |
| Standard-compliant connection | IEC 60947-7-1 |
| Rigid conductor cross-section | 0.2 mm² ... 6 mm² |
| Conductor cross-section AWG | 24 ... 10 (converted according to IEC) |
| Flexible conductor cross-section | 0.2 mm² ... 4 mm² |
| Flexible conductor cross-section [AWG] | 24 ... 12 (converted according to IEC) |
| Flexible conductor cross-section (cable lug without insulation collar) | 0.2 mm² ... 4 mm² |
| Flexible conductor cross-section (plastic lug and collar) | 0.2 mm² ... 4 mm² |
| 2 conductors of identical cross-section flexible with TWIN ferrule with plastic collar | 0.5 mm² ... 1 mm² |
| Rated current | 41 A |
| Maximum load current | 41 A (with 6 mm² conductor connection) |
| Maximum cumulative current | 63 A |
| Nominal voltage | 800 V |
| Nominal cross-section | 4 mm² |
| Collective connection | |
| Length of the section to be stripped | 12 mm ... 14 mm |
| Standard-compliant connection | IEC 60947-7-1 |
| Rigid conductor cross-section | 0.5 mm² ... 10 mm² |
| Conductor cross-section AWG | 24 ... 10 (converted according to IEC) |
| Flexible conductor cross-section | 0.5 mm² ... 10 mm² |
| Flexible conductor cross-section [AWG] | 24 ... 12 (converted according to IEC) |
| Flexible conductor cross-section (cable lug without insulation collar) | 0.5 mm² ... 10 mm² |
| Flexible conductor cross-section (plastic lug and collar) | 0.5 mm² ... 10 mm² |
| 2 conductors of identical cross-section flexible with TWIN ferrule with plastic collar | 0.75 mm² ... 2.5 mm² |
| Rated current | 57 A |
| Maximum load current | 57 A (with a conductor cross-section of 10 mm²) |
| Maximum cumulative current | 63 A (The maximum load current of the individual connection points must not be exceeded.) |
| Nominal voltage | 800 V |
| Nominal cross-section | 10 mm² |
| Socket Direct plug-in connection sections | |
| Rigid conductor cross-section | 0.5 mm² ... 6 mm² |
| Solid conductor cross-section [AWG] | 20 ... 10 (converted according to IEC) |
| Flexible conductor cross-section (cable lug without insulation collar) | 0.75 mm² ... 4 mm² |
| Flexible conductor cross-section (plastic lug and collar) | 0.5 mm² ... 4 mm² |
| Collective connection Direct pluggable connection sections | |
| Rigid conductor cross-section | 1.5 mm² ... 10 mm² |
| Flexible conductor cross-section (cable lug without insulation collar) | 2.5 mm² ... 10 mm² |
| Flexible conductor cross-section (plastic lug and collar) | 1 mm² ... 10 mm² |
| width | 28.6 mm |
| height | 58.1 mm |
| Depth on NS 15 | 30.4 mm |
| Depth on NS 35/7.5 | 32.4 mm |
| Color | multicoloured |
| black (RAL 9005) | |
| yellow (RAL 1018) | |
| Combustibility class according to UL 94 | V0 |
| Insulation Material Group | The |
| Insulation material | PA |
| Cold static insulation material insert | -60 °C |
| Temperature index for insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Insulation Material Relative Temperature Index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Heat development calorimetric cone NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Surface Flammability NFPA 130 (ASTM E 162) | Exceeded |
| NFPA 130 (ASTM E 662) Specific Optical Density of Fumes | Exceeded |
| NFPA 130 Fume Toxicity (SMP 800C) | Exceeded |
| Impulse voltage test | |
| Test voltage rated value | 9.8 kV |
| Result | Test passed |
| Ambient Temperature Test | |
| Heating verification requirement | Temperature rise ≤ 45 K |
| Result | Test passed |
| Short-term current resistance 10 mm² | 1.2 kA |
| Result | Test passed |
| Dielectric strength at mains frequency | |
| Test voltage rated value | 2 kV |
| Result | Test passed |
| Mechanical data | |
| Open side wall | no |
| Mechanical resistance | |
| Result | Test passed |
| Mounting on the stand | |
| Support rail/fixing support | NS 35/NS 15 |
| Test force rated value | 5 N |
| Result | Test passed |
| note | When sequencing multiple blocks, it is recommended that a DIN rail adapter be placed under the connection point or a flanged element between the blocks for each block. |
| For variants with 6 or 7 connections, simply insert a DIN rail adapter centrally to each block and the flange elements every two blocks. | |
| When using the PTFIX-NS35 DIN rail adapter, an aligned block can only be stacked in half. | |
| Conductor Integrity and Stability Test | |
| Rotational speed | 10 rpm |
| Turns | 135 |
| Conductor cross-section/weight | 0.5 mm2/0.3 kg |
| 10 mm2/2 kg | |
| Result | Test passed |
| Conductor Integrity and Stability Test | |
| Rotational speed | 10 rpm |
| Turns | 135 |
| Conductor cross-section/weight | 0.2 mm2/0.2 kg |
| 4 mm2/0.9 kg | |
| 6 mm2/1.4 kg | |
| Result | Test passed |
| Aging | |
| Temperature Cycling | 192 |
| Result | Test passed |
| Needle flame test | |
| Duration of application | 30 s |
| Result | Test passed |
| Broadband vibration/noise | |
| Test Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Spectrum | Category 2 Electrical Life Check, Trolley Mounted |
| Frequency | f1= 5 Hz up to f2= 250 Hz |
| ASD Level | 6.12 (m/s²)²/Hz |
| Acceleration | 3.12g |
| Test duration per axle | 5 h |
| Test Directions | X, Y, and Z axis |
| Result | Test passed |
| Shock | |
| Test Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Shock Form | Semi-sinusoidal |
| Acceleration | 30g |
| Shock Duration | 18 ms |
| Number of shocks per direction | 3 |
| Test Directions | X, Y and Z axis (pos. and neg.) |
| Result | Test passed |
| Environmental conditions | |
| Ambient temperature (operating) | -60 °C ... 110 °C (Operating temperature range including self-heating, short-term maximum operating temperature cf. RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for short duration, no longer than 24 h, -60 °C to +70 °C) |
| Ambient temperature (mounting) | -5 °C ... 70 °C |
| Ambient Temperature (Activation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Standard-compliant connection | IEC 60947-7-1 |
| IEC 60947-7-1 |
| Mounting type | NS 35/7.5 |
| NS 35/15 |
| Feature Name | Feature Value |
|---|---|
| Rated current In (EF008250) | 41 A |
| Rated voltage (EF000228) | 800 V |
| Type of electrical connection 1 (EF002526) | Other |
| Type of electrical connection 2 (EF002527) | Other |
| Number of clamp positions per level (EF002660) | 7 |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Material insulation body (EF007543) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Width (EF000008) | 28.6 mm |
| Height (EF000040) | 58.1 mm |
| Depth (EF000049) | 30.4 mm |
| Closing plate required (EF002525) | No |
| Colour (EF000007) | Multi colour |
| Internally connected stages (EF002661) | Yes |
