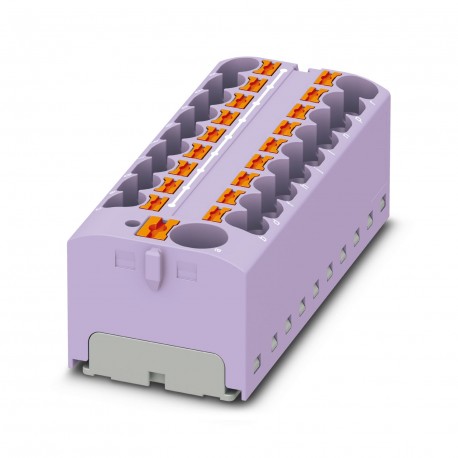

PTFIX 10/18X4 VT 3273916 PHOENIX CONTACT Block for distribution, rated voltage: 450 V, nominal current: 32 A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

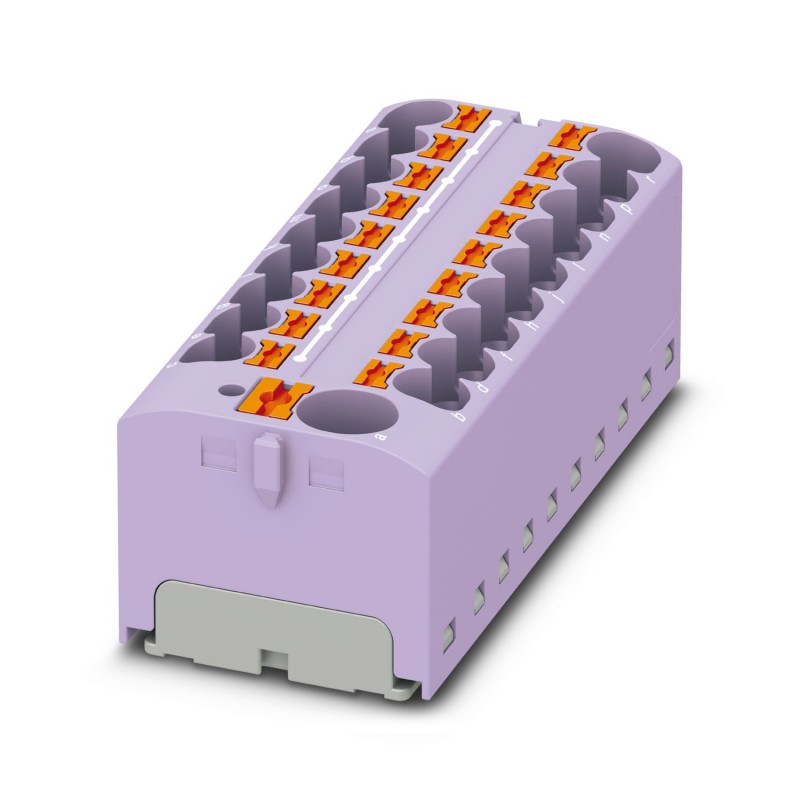

PTFIX 10/18X4 VT 3273916 PHOENIX CONTACT Block for distribution, rated voltage: 450 V, nominal current: 32 A..

PTFIX 10/18X4 VT

3273916

PHOENIX_CONTACT

8

Block for distribution, rated voltage: 450 V, nominal current: 32 A, type of Connection: Connection push-in Connection push-in connection, number of connections: 19, section: 0,2 mm2-6 mm2, AWG: 24-10 width: 64,8 mm, height: 21,7 mm, color: violet class assembly: latch on adapter for rail

Distribution block, nominal voltage: 450 V, nominal current: 32 A, number of connections: 19, connection type: Push-in connection, Branch, cross-section: 0.2 mm² - 6 mm², Push-in connection, Collective connection, Dimensioning cross-section: 10 mm², cross-section: 0.5 mm² - 10 mm², mounting class: interlock in rail adapter, Direct mounting with a flange, Aerial, color: violet

Distribution block, Nominal voltage: 450 V, Rated current: 32 A, Number of connections: 19, Connection type: Push-in connection, Tap, Cross-section: 0.2 mm2 - 6 mm2, Push-in connection, Collective connection, Rated cross-section: 10 mm2, Cross-section: 0.5 mm2 - 10 mm2, Mounting type: Snap onto DIN rail adapter, Direct mounting with flange, Flying, Colour: purple

More details


Terminal blocks > Feed-through terminal block

FIX block System

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total: $127.91
Unit price: $15.99
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

Best sellers

More info




General
NoteThe maximum load current of the individual terminal point must not be exceeded.
For energy distribution applications, IEC 60364-4-43:2008, modified + Corrigendum Oct. 2008 (DIN VDE 0100-430:2010-10) Section 433.2 ff must be observed!

Product TypeDistribution terminal
Number of ports19
Number of rows1
Potentials1
Data maintenance status
Article revision01
Insulation properties
Surge CategoryIII
Degree of contamination3

Rated Surge Voltage6 kV
Maximum power dissipation at nominal condition1.02 W

Feed-inYes
Number of connections per floor19
Nominal cross-section4 mm²
Design cross-section AWG12
Tapping
Stripping length10 mm ... 12 mm
Gauge MandrelA4
Connection according to standardIEC 60998-2-2
Conductor cross-section rigid0.2 mm² ... 6 mm²
Conductor cross-section AWG24 ... 10 (converted to IEC)
Flexible conductor cross-section0.2 mm² ... 4 mm²
Conductor cross-section flexible [AWG]24 ... 12 (converted to IEC)
Flexible conductor cross-section (ferrule without plastic sleeve)0.2 mm² ... 4 mm²
Flexible conductor cross-section (ferrule with plastic sleeve)0.2 mm² ... 4 mm²
2 conductors of the same cross-section flexible with TWIN ferrule with plastic sleeve0.5 mm² ... 1 mm²
Rated current32 A
Load current maximum41 A
Total current maximum63 A
Nominal voltage450 V
Hunt group
Stripping length12 mm ... 14 mm
Connection according to standardIEC 60998-2-2
Conductor cross-section rigid0.5 mm² ... 10 mm²
Conductor cross-section AWG20 ... 6 (converted to IEC)
Flexible conductor cross-section0.5 mm² ... 10 mm²
Conductor cross-section flexible [AWG]20 ... 8 (converted to IEC)
Flexible conductor cross-section (ferrule without plastic sleeve)0.5 mm² ... 10 mm²
Flexible conductor cross-section (ferrule with plastic sleeve)0.5 mm² ... 10 mm²
Flexible conductor cross-section (2 conductors of the same cross-section with TWIN ferrule with plastic sleeve)0.5 mm² ... 4 mm²
2 conductors of the same cross-section flexible with TWIN ferrule with plastic sleeve0.5 mm² ... 4 mm²
Rated current57 A
Load current maximum57 A
Nominal cross-section10 mm²
Tapping connection cross-sections can be plugged in directly
Conductor cross-section rigid0.5 mm² ... 6 mm²
Conductor cross-section rigid [AWG]20 ... 10 (converted to IEC)
Flexible conductor cross-section (ferrule without plastic sleeve)0.75 mm² ... 4 mm²
Flexible conductor cross-section (ferrule with plastic sleeve)0.5 mm² ... 4 mm²
Connection cross-sections can be plugged in directly
Conductor cross-section rigid0.5 mm² ... 16 mm²
Flexible conductor cross-section (ferrule without plastic sleeve)1 mm² ... 10 mm²
Flexible conductor cross-section (ferrule with plastic sleeve)1 mm² ... 10 mm²

Width64.8 mm
Height28.6 mm
Depth21.7 mm

Colorviolet (RAL 4005)
Flammability class according to UL 94V0
Insulating material groupI
Insulating materialPA
Static use of insulating material in cold conditions-60 °C
Temperature Index Insulating Material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative Insulating Temperature Index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Heat Dissipation Calorimetric NFPA 130 (ASTM E 1354)28 MJ/kg
Surface Flammability NFPA 130 (ASTM E 162)passed
Specific Optical Flue Gas Density NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Mechanical data
Open sidewallYes

Attachment to the carrier
ResultExam passed
NoteWhen stringing together several blocks, it is recommended to place a DIN rail adapter under the connection point or a flange element between the blocks.
For variants with 6 or 7 connections, it is sufficient to place a DIN rail adapter in the middle of each block and flange elements after every second block.
When using the PTFIX-NS35 DIN rail adapter, a stacked block may only protrude a maximum of half.

Needle Flame Testing
Exposure time30 s
ResultExam passed
Swing/Broadband Noise
Test SpecificationDIN EN 50155 (VDE 0115-200):2018-05
SpectrumCategory 2 service life test, mounted on the bogie
Frequencyf1= 5 Hz to f2= 250 Hz
ASD Level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test DirectionsX, Y and Z axis
ResultExam passed
Shock
Test SpecificationDIN EN 50155 (VDE 0115-200):2018-05
Shock formHalf Sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test DirectionsX, Y and Z axes (pos. and neg.)
ResultExam passed
Environmental conditions
Ambient temperature (operating)-60 °C ... 110 °C (operating temperature range incl. self-heating, max. short-term operating temperature see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not more than 24 h, -60 °C to +70 °C)
Ambient temperature (mounting)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operating)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Connection according to standardIEC 60998-2-2
IEC 60998-2-2

Mounting typeSnap onto DIN rail adapter
Direct mounting with flange
Flying

ETIM for 3273916 Terminal blocks (EC000897)
Feature Name Feature Value
Rated current In (EF008250) 32 A
Rated voltage (EF000228) 450 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 19
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 64.8 mm
Height (EF000040) 28.6 mm
Depth (EF000049) 21.7 mm
Closing plate required (EF002525) No
Colour (EF000007) Other
Internally connected stages (EF002661) Yes
