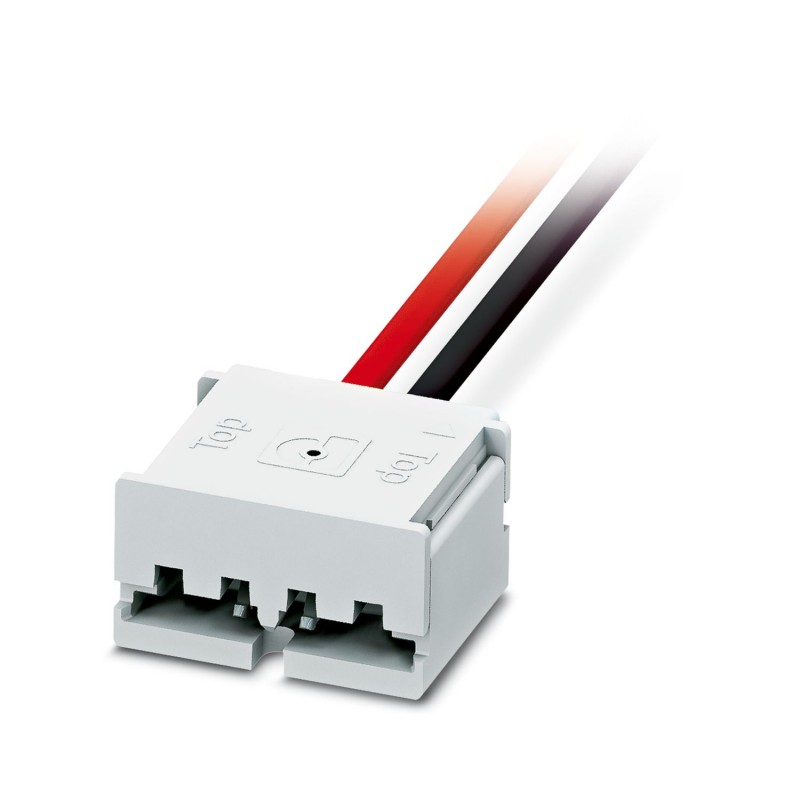

PTF 0,3/ 2-WB-8-H PC4001 L500 1010317 PHOENIX CONTACT Connectors for printed circuit board ready-made, 2-pol..
PTF 0,3/ 2-WB-8-H PC4001 L500
1010317
PHOENIX_CONTACT
20
Connectors for printed circuit board ready-made, 2-poles
Ready-made printed circuit board connectors
Connectors > Accessories/spare parts for industrial connectors
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Ready-made printed circuit board connectors |
| Product Family | PTF 0.3/.. -WB-H |
| Product Line | COMBICON Connectors Special |
| Number of poles | 2 |
| Step | 1.90 mm |
| Number of rows | 1 |
| Data Maintenance Status | |
| Article Review | 00 |
| Nominal voltage UN | < 25 V |
| Sizing voltage (III/3) | 25 V |
| Dimensioning voltage (III/2) | 25 V |
| Type of mounting | Direct plug-in connection technology |
| Dimension Scheme |  |
| Step | 1.90 mm |
| Tensile strength of crimped joints | |
| Result | Approved Test |
| Heating Verification | |
| Test Specification | DIN EN 60838-1 (VDE 0616-5):2011-12 |
| Heating test requirement | Temperature rise ≤ 45 K |
| Insulation resistance | |
| Test Specification | DIN EN 60838-1 (VDE 0616-5):2011-12 |
| Insulation Resistance Adjacent Poles | > 1 MΩ |
| Creepage Lines & Air Isolation Distances | |
| Test Specification | DIN EN 60838-1 (VDE 0616-5):2011-12 |
| Insulating material group | IIIa |
| Sizing Insulation Voltage (III/3) | 25 V |
| Sizing Insulation Voltage (III/2) | 25 V |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| frequency | 10 - 500 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2 h |
| Test Directions | X, Y, and Z axes |
| Essay filam. incandescent | |
| Test Specification | DIN EN 60695-2-11 (VDE 0471-2-11):2001-11 |
| Temperature | 650 °C |
| Performance Time | 30 sec |
| Environmental conditions | |
| Ambient Temperature (Service) | -30 °C ... 100 °C (depending on the rating curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 85 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Connection 1 | |
| Insulating material | PBT |
| CTI according to IEC 60112 | 275 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
