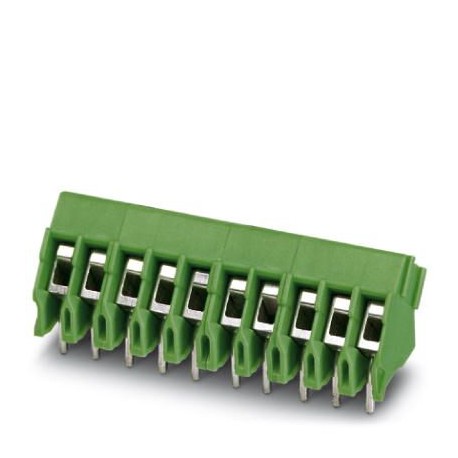

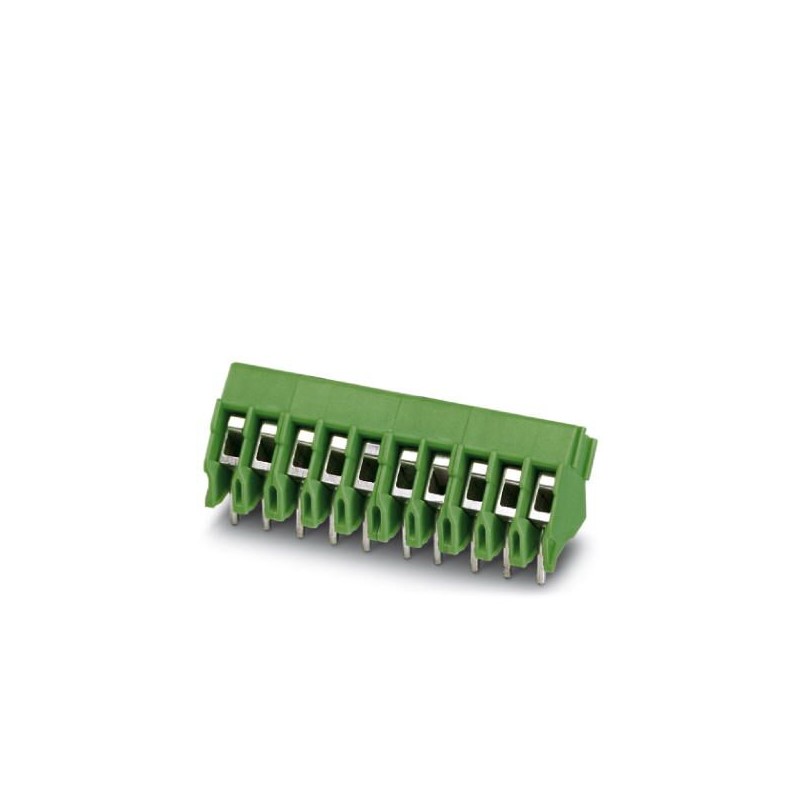

PTA 1,5/12-3,5 PIN3,5 1804440 PHOENIX CONTACT PCB terminal block, nominal current: 17.5 A, nom. voltage: 200..

PTA 1,5/12-3,5 PIN3,5

1804440

PHOENIX_CONTACT

50

PCB terminal block, nominal current: 17.5 A, nom. voltage: 200 V, pitch: 3.5 mm, number of positions: 12, connection method: Screw connection with wire protector, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


PCB terminal block, nominal current: 17.5 A, nom. voltage: 200 V, pitch: 3.5 mm, number of positions: 12, connection method: Screw connection with wire protector, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green

Key Commercial Data

Orderkey1804440
Packing unit1
GTIN4046356666008
Custom tariff number85369010

Dimensions

Pitch3.5 mm
Dimension a38.5 mm
Solder pin [P]3.5 mm
Pin spacing3.5 mm
Hole diameter1.2 mm

General

Range of articlesPTA 1,5
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)200 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN17.5 A
Nominal cross section1.5 mm²
Solder pin surface
Stripping length5 mm
Number of positions12
Screw threadM2
Tightening torque, min0.22 Nm
Tightening torque max0.25 Nm

Connection data

Conductor cross section AWG min.26
Conductor cross section AWG max.16
2 conductors with same cross section, solid min.0.14 mm²
2 conductors with same cross section, solid max.0.5 mm²
2 conductors with same cross section, stranded min.0.14 mm²
2 conductors with same cross section, stranded max.0.5 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 4.0272607xx
eCl@ss 4.127141109
eCl@ss 5.027141190
eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002643
ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1134131203
UNSPSC 12.0139121432
UNSPSC 13.239121432
