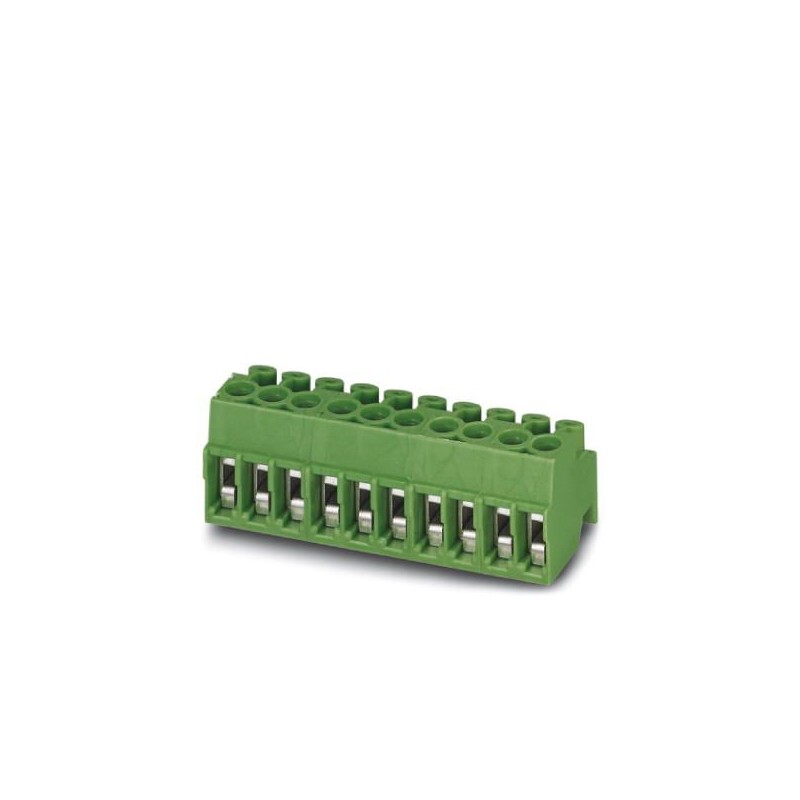

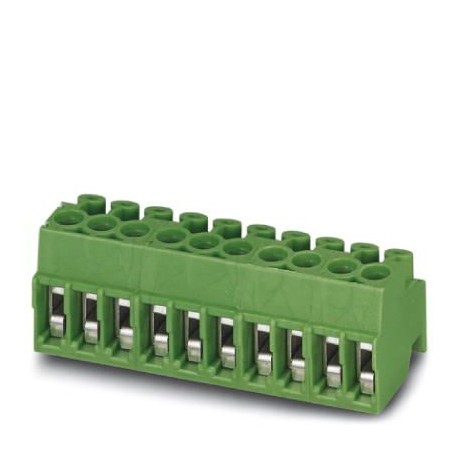

PT 1,5/ 8-PH-3,5-A
1984523
PHOENIX_CONTACT
100
PCB terminal block
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1984523 |
---|---|
Packing unit | 100 pc |
Minimum order quantity | 100 pc |
Note | Made to Order (non-returnable) |
GTIN | 4046356036207 |
Weight per Piece (excluding packing) | 4.710 g |
Custom tariff number | 85366990 |
Country of origin | DE (Germany) |
Range of articles | PT 1,5/..-PH-A |
---|---|
Number of positions | 8 |
Connection method | Screw connection with wire protector |
Insulating material group | I |
Rated surge voltage (III/3) | 2.5 kV |
Rated surge voltage (III/2) | 2.5 kV |
Rated surge voltage (II/2) | 2.5 kV |
Rated voltage (III/3) | 160 V |
Rated voltage (III/2) | 200 V |
Rated voltage (II/2) | 400 V |
Connection in acc. with standard | EN-VDE |
Nominal current IN | 6 A |
Nominal cross section | 1.5 mm² |
Maximum load current | 6 A |
Insulating material | PA |
Flammability rating according to UL 94 | V0 |
Stripping length | 5 mm |
Screw thread | M2 |
Tightening torque, min | 0.25 Nm |
Tightening torque max | 0.25 Nm |
Conductor cross section solid min. | 0.2 mm² |
---|---|
Conductor cross section solid max. | 1.5 mm² |
Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 1.5 mm² |
Conductor cross section AWG min. | 26 |
Conductor cross section AWG max. | 16 |
2 conductors with same cross section, solid min. | 0.2 mm² |
2 conductors with same cross section, solid max. | 0.34 mm² |
2 conductors with same cross section, stranded min. | 0.2 mm² |
2 conductors with same cross section, stranded max. | 0.5 mm² |
Minimum AWG according to UL/CUL | 26 |
Maximum AWG according to UL/CUL | 16 |
Connection in acc. with standard | EN-VDE |
---|---|
CUL | |
Flammability rating according to UL 94 | V0 |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
