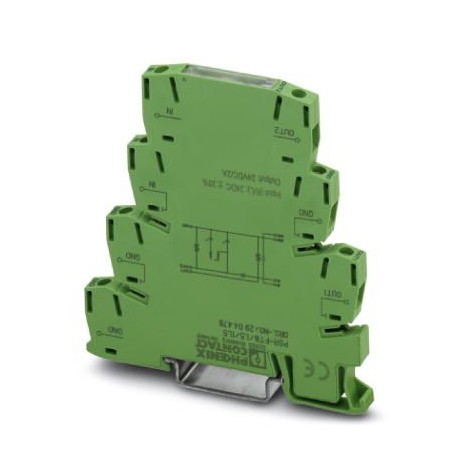

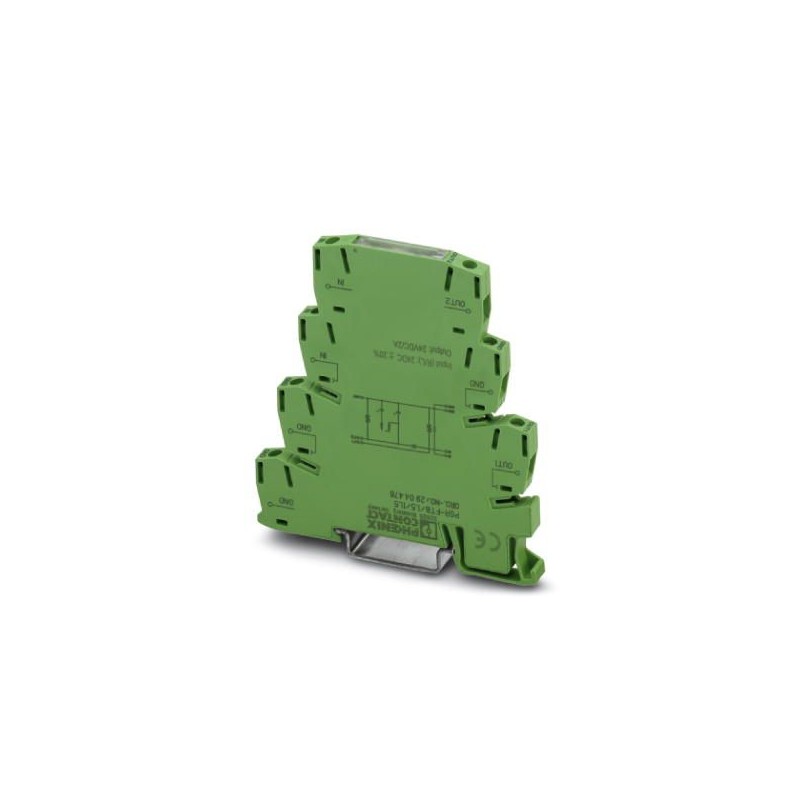

PSR-FTB/20/86 2904477 PHOENIX CONTACT Filter terminal block
PSR-FTB/20/86
2904477
PHOENIX_CONTACT
Filter terminal block
Safety
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Often bought together
▲More info
▲Key Commercial Data
| Orderkey | 2904477 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 295 (C-6-2017) |
| GTIN | 4046356831512 |
| Weight per Piece (excluding packing) | 43.600 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Degree of protection | IP20 |
Input data
| Nominal input voltage UN | 24 V DC ±20 % (Control voltage USTright/left) |
|---|---|
| Typical input current at UN | max. 20 mA |
| Protective circuit | Surge protection |
Output data
| Nominal output voltage | 24 V DC ±20 % (Control voltage USTright/left) |
|---|---|
| Nominal output voltage range | 19.2 V DC ... 28.8 V DC (Control voltage USTright/left) |
| Limiting continuous current | max. 2 A (in total for OUT1 + OUT2) |
Connection data, control circuit
| Connection name | Control circuits |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Connection data load circuit
| Connection name | Load circuit |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
General
| Mounting position | Vertical (horizontal DIN rail) |
|---|---|
| Assembly instructions | In rows with zero spacing |
| Operating mode | 100% operating factor |
Standards and Regulations
| Designation | Air clearances and creepage distances between the power circuits |
|---|---|
| Standards/regulations | EN 61131 |
| Rated insulation voltage | 50 V |
| Rated surge voltage | 1.5 kV |
| Insulation | Basic insulation |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027371102eCl@ss 4.127371102eCl@ss 5.027371901eCl@ss 5.127371900eCl@ss 6.027249200eCl@ss 7.027249290eCl@ss 8.027249290eCl@ss 9.027240692
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
