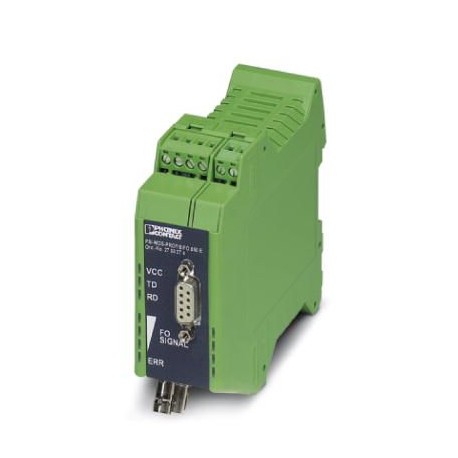

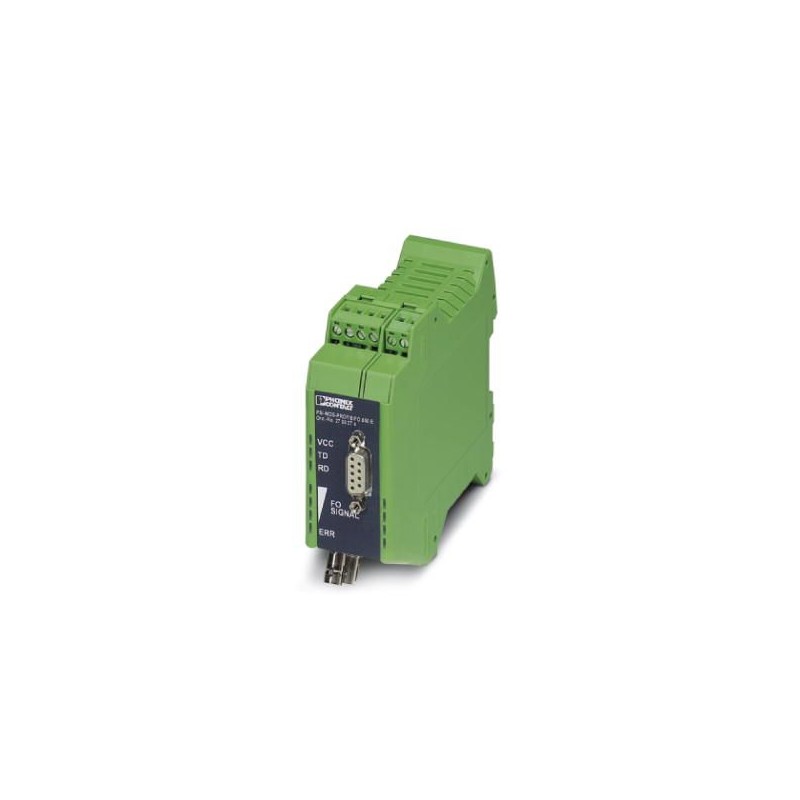

PSI-MOS-PROFIB/FO 850 E-SO 2708711 PHOENIX CONTACT FO converters
PSI-MOS-PROFIB/FO 850 E-SO
2708711
PHOENIX_CONTACT
FO converters
Safety
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2708711 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356041461 |
| Weight per Piece (excluding packing) | 186.980 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 30 % ... 95 % (non-condensing) |
| Altitude | 5000 m (For restrictions see manufacturer's declaration) |
| Degree of protection | IP20 |
General
| Bit delay | ≤ 1 bit |
|---|---|
| Bit distortion, input | ± 35 % (permitted) |
| Bit distortion, output | < 6.25 % |
| Electrical isolation | VCC // RS-485 |
| Test voltage data interface/power supply | 1.5 kVrms(50 Hz, 1 min.) |
| Net weight | 186.98 g |
| Housing material | PA 6.6-FR |
| Color | green |
| MTBF | 252 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| 42 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) | |
| Conformance | CE-compliant |
| ATEX | II 3 G Ex nA nC IIC T4 Gc X (Please follow the special installation instructions in the documentation!) |
| II (2) G [Ex op is Gb] IIC (PTB 06 ATEX 2042 U) (Please follow the special installation instructions in the documentation!) | |
| II (2) D [Ex op is Db] IIIC (PTB 06 ATEX 2042 U) (Please follow the special installation instructions in the documentation!) | |
| UL, USA/Canada | Class I, Zone 2, AEx nc IIC T5 |
| Class I, zone 2, Ex nC nL IIC T5 X | |
| Class I, Div. 2, Groups A, B, C, D |
Power supply
| Nominal supply voltage | 24 V DC (With UL approval) |
|---|---|
| Supply voltage range | 18 V DC ... 30 V DC |
| Max. current consumption | 130 mA |
| Typical current consumption | 120 mA (24 V DC) |
| Connection method | COMBICON plug-in screw terminal block |
Serial interface
| Interface 1 | PROFIBUS acc. to IEC 61158, RS-485 2-wire, half duplex, automatic control |
|---|---|
| Operating mode | Semi-duplex |
| Connection method | D-SUB-9 female connector |
| File format/coding | UART (11 Bit, NRZ) |
| Data direction switching | Automatic control |
| Transmission medium | Copper |
| Transmission length | ≤ 1200 m (depending on the data rate, with shielded, twisted pair data cable) |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Serial transmission speed | ≤ 12 Mbps |
Optical interface FO
| Transmit capacity, minimum | -4.2 dBm (200/230 µm) |
|---|---|
| -17.8 dBm (50/125 µm) | |
| -14.6 dBm (62,5/125 µm) | |
| Minimum receiver sensitivity | -30 dBm (50/125 µm) |
| Overrange receiver | -3 dBm (200/230 µm) |
| Wavelength | 850 nm |
| Transmission length incl. 3 dB system reserve | 2600 m (with F-G 50/125 2.5 dB/km) |
| 3300 m (with F-G 62,5/125 3.0 dB/km) | |
| 800 m (With F-K 200/230 10 dB/km with quick mounting connector) | |
| Transmission medium | PCF fiber |
| Multi-mode fiberglass | |
| Connection method | B-FOC (ST®) |
Digital outputs
| Output name | Relay output |
|---|---|
| Output description | Alarm output |
| Number of outputs | 1 |
| Maximum switching voltage | 65 V DC |
| 150 V AC | |
| Limiting continuous current | 0.46 A |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Shock | 15g in all directions in acc. with IEC 60068-2-27 |
| Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Conformance | CE-compliant |
| ATEX | II 3 G Ex nA nC IIC T4 Gc X |
| II (2) G [Ex op is Gb] IIC (PTB 06 ATEX 2042 U) | |
| II (2) D [Ex op is Db] IIIC (PTB 06 ATEX 2042 U) | |
| UL, USA/Canada | Class I, Zone 2, AEx nc IIC T5 |
| Class I, zone 2, Ex nC nL IIC T5 X | |
| Class I, Div. 2, Groups A, B, C, D | |
| DNV GL-Temperature | B |
| DNV GL-Humidity | A |
| DNV GL-Vibration | A |
| DNV GL-EMC | B |
| DNV GL-Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027230207eCl@ss 4.127230207eCl@ss 5.027230207eCl@ss 5.127230200eCl@ss 6.019179200eCl@ss 7.019179290eCl@ss 8.019179290eCl@ss 9.019170114
