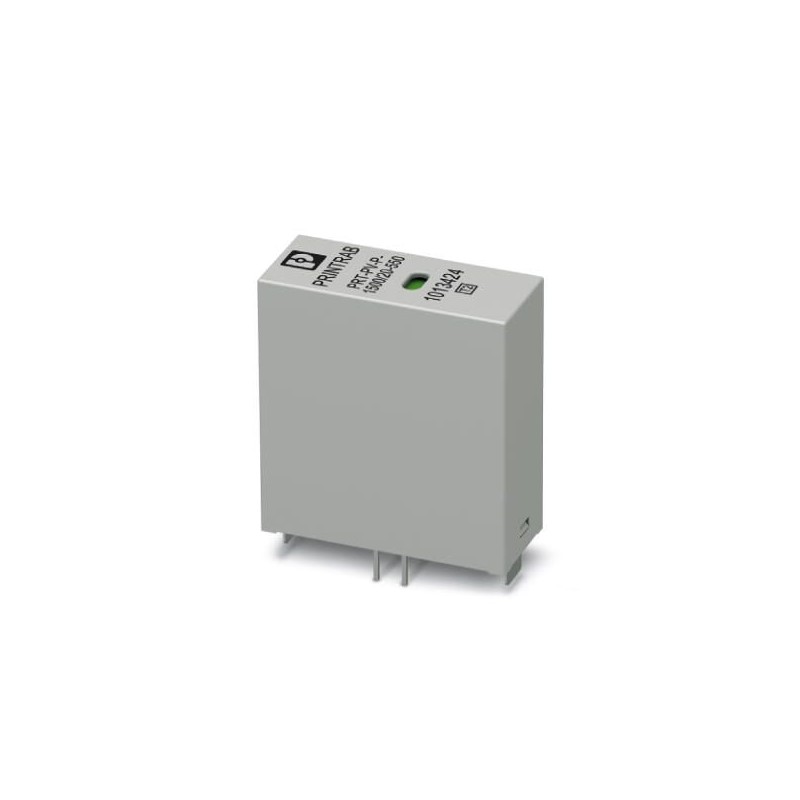

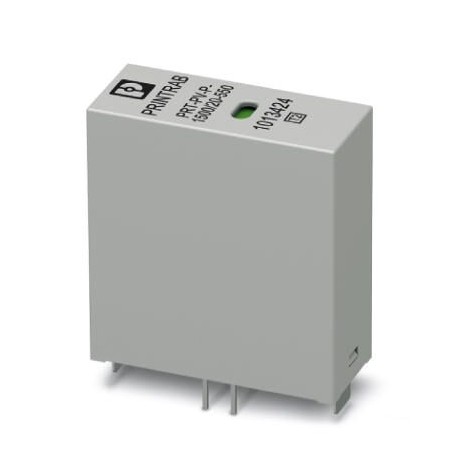

PRT-PV-P-1500/20-550 1013424 PHOENIX CONTACT Surge protective device for space-saving PCB installation, in a..
PRT-PV-P-1500/20-550
1013424
PHOENIX_CONTACT
10
Surge protective device for space-saving PCB installation, in accordance with type 2 / CLASS II, for 2-pol isolated 1500 V DC voltage systems, with integrated remote indication contact in each plug, status indication on the module
Surge protection device for compact PCB mounting, in accordance with type 2 / class II, for 2-pole voltage systems and 1500 V DC, with remote indication contact integrated in each plug, status indication on the module
Trabtech (TT)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1013424 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 80 (C-4-2019) |
| GTIN | 4055626492513 |
| Custom tariff number | 85354000 |
Ambient conditions
| Degree of protection | IP00 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Altitude | ≤ 5000 m (Standard insulation) |
| ≤ 3000 m (Reinforced insulation) | |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 25g () |
| Vibration (operation) | 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
General
| IEC test classification | PV |
|---|---|
| EN type | PV |
| SPD failure behavior | OCM |
| Installation location | Interior |
| Accessibility | Accessible |
| Installation location of the disconnect device | Internal |
| Mounting type | PCB mounting |
| Color | traffic grey A RAL 7042 |
| Housing material | PBT 10 % GF/PA 6.6 |
| Degree of pollution | 2 |
| Flammability rating according to UL 94 | V-0 |
Protective circuit DC voltage side (DC)
| Maximum continuous operating voltage UCPV | 750 V DC (Single) |
|---|---|
| 1500 V DC (2 serial connections) | |
| Short-circuit current rating ISCPV | 2000 A |
| Continuous operating current ICPV | ≤ 20 µA (2 serial connections) |
| Residual current IPE | ≤ 100 µA (Ucpv/Single) |
| ≤ 100 µA () | |
| Nominal discharge current (8/20) µs | 20 kA |
| Maximum discharge current Imax(8/20) µs | 40 kA |
| Voltage protection level Up | ≤ 2.4 kV (Single) |
| ≤ 4.6 kV (2 serial connections) | |
| Response time tA | ≤ 25 ns |
| Insulation resistance Riso | > 5 MΩ () |
| Max. backup fuse with branch wiring | 125 A (aR) |
Indicator/remote signaling
| Switching function | normal/deterioration |
|---|---|
| Operating voltage | 30 V AC |
| 30 V DC | |
| Operating current | 1 A AC |
| 1 A DC |
Standards and Regulations
| Standards/regulations | EN 50539-11 2013 |
|---|---|
| IEC 61643-11 2011 | |
| IEC 61643-11 2013 |
Classifications
| Feature Name | Feature Value |
|---|---|
| System configuration IT (EF009927) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PROTECTION EN .pdf | 27 Mbytes |
|
