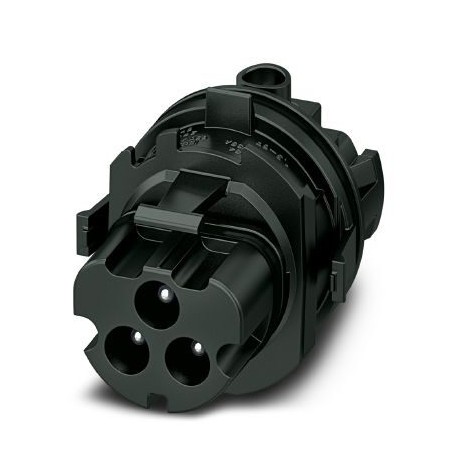

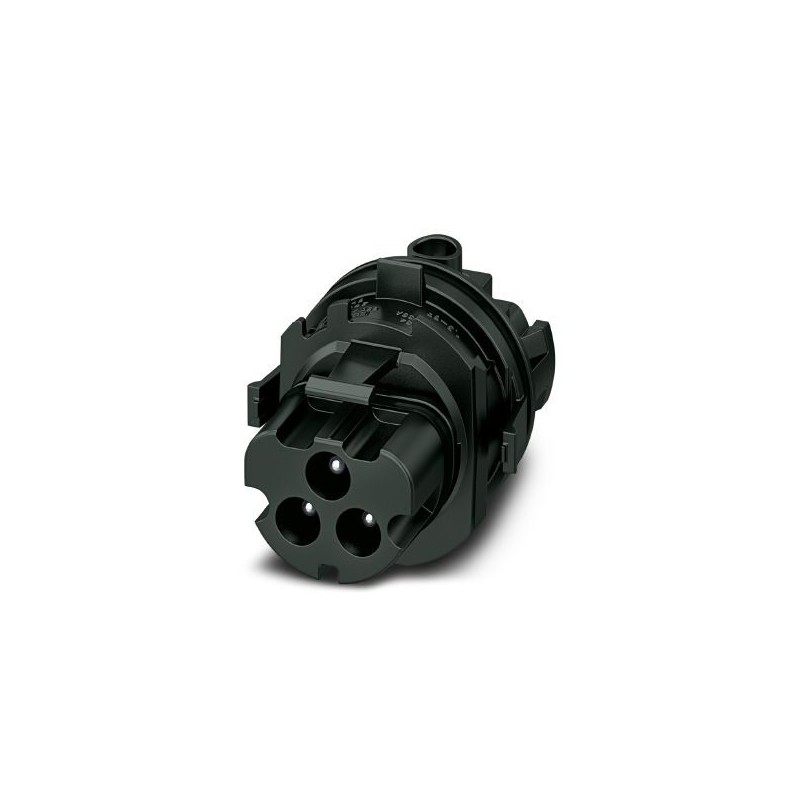

PRC 3-HEAD-MS6-2 1070200 PHOENIX CONTACT Circular connectors (cable-side), Range of articles: PRC, Contact i..
PRC 3-HEAD-MS6-2
1070200
PHOENIX_CONTACT
Circular connectors (cable-side), Range of articles: PRC, Contact insert, housing material: PPE, color: black, number of positions: 3, min. conductor cross section: 1.5 mm², max. conductor cross section: 6 mm², nom. voltage: 690 V AC, rated current: 35 A, Connection method: Screw connection, Type of contact: Pin
Contact support, Article family: PRC 35, housing material: PPE, color: black, number of poles: 3, min. conductor section: 1.5 mm², max. conductor section: 6 mm², nominal voltage: 690 V AC, assigned current: 35 A, Connection type: Screw connection, Contact connection type: Male. Housingless contact insert for connectors. Order connector housings according to the list of accessories.
Pluggable building installation systems > Plug-in connector for plug-in building installation
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1070200 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626747880 |
| Weight per Piece (excluding packing) | 40.000 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
| Product type | Circular connector (cable-side) |
|---|---|
| Number of positions | 3 |
| Knurl material | PPE |
| Connection method | Screw connection |
Classifications
| Feature Name | Feature Value |
|---|---|
| Connection cross section (solid-core) (EF009691) | 6 mm² |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
