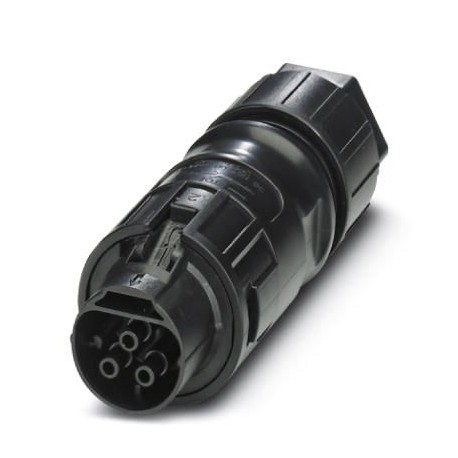

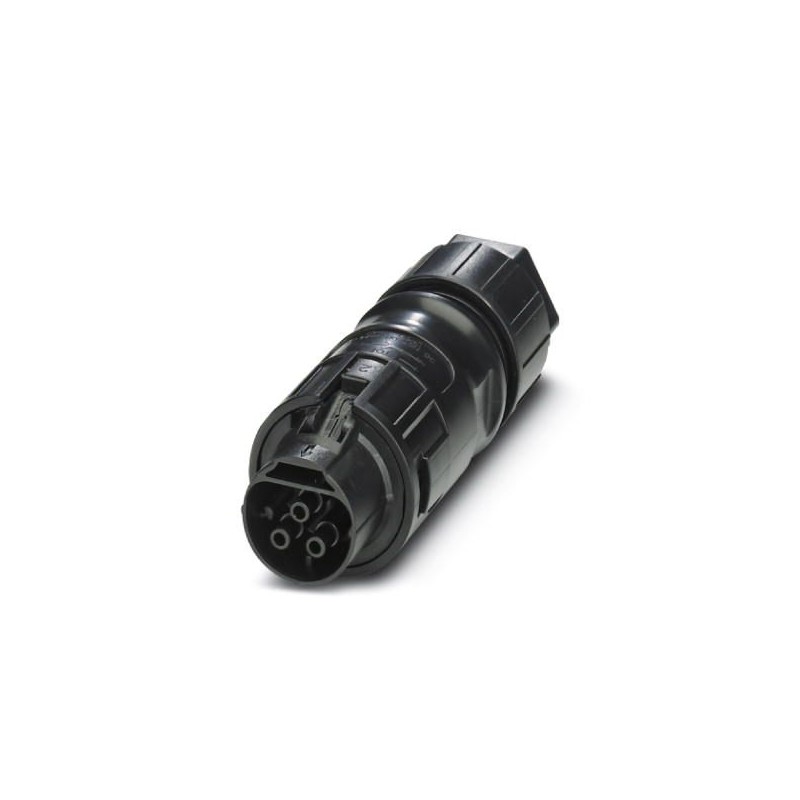

PRC 3-FC-FS6 8-21 HR 1017635 PHOENIX CONTACT Coupler connector
PRC 3-FC-FS6 8-21 HR
1017635
PHOENIX_CONTACT
Coupler connector
Mating connector, Article family: PRC 35, construction: Tool or manual release (see accessories), housing material: PPE, color: black, number of poles: 3, min. conductor cross-section: 1.5 mm², max. conductor cross-section: 6 mm², nominal voltage: 690 V AC, assigned current: 35 A, Connection type: Screw connection, Contact connection type: Female, min cable diameter: 8 mm, max. cable diameter: 21 mm, Variant for manual unlocking
Pluggable building installation systems > Plug-in connector for plug-in building installation
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1017635 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626500775 |
| Weight per Piece (excluding packing) | 93.000 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General data
| Number of positions | 3 |
|---|---|
| Protection class | II |
| Color | black |
| Locking type | Snap-in locking |
| Insertion/withdrawal cycles | 100 |
| Pull-out-force | 150 N ± 50 N |
| Insertion force | 30 N ±10 N |
| Degree of protection (when plugged in) | IP66 / IP68 (2m / 24h) / IP69K |
Connection data
| Rated current | 35 A (With 6 mm² conductor cross section in accordance with IEC 61984) |
|---|---|
| 35 A (With 6 mm²/AWG 10, in accordance with UL 2238) | |
| Nominal voltage ATD | 690 V AC (in accordance with IEC 61984) |
| 600 V AC (In accordance with UL 2238) | |
| Rated voltage (III/2) | 690 V |
| Conductor cross section flexible min. | 1.5 mm² |
| Conductor cross section flexible max. | 6 mm² |
| Conductor cross section solid min. | 1.5 mm² |
| Conductor cross section solid max. | 6 mm² |
| Stripping length | 12 mm |
| Torque | max. 1 Nm (Contact screw) |
| Type of contact | Socket |
| Stripping length of the sheath | 50 mm |
Material data
| Contact material | Cu |
|---|---|
| Contact surface material | silver-plated |
| Contact carrier material | PPE |
| Flammability rating according to UL 94 | V0 |
Classifications
| Feature Name | Feature Value |
|---|---|
| Cable diameter (EF002356) | 8 mm |
| Connection cross section (solid-core) (EF009691) | 6 mm² |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
